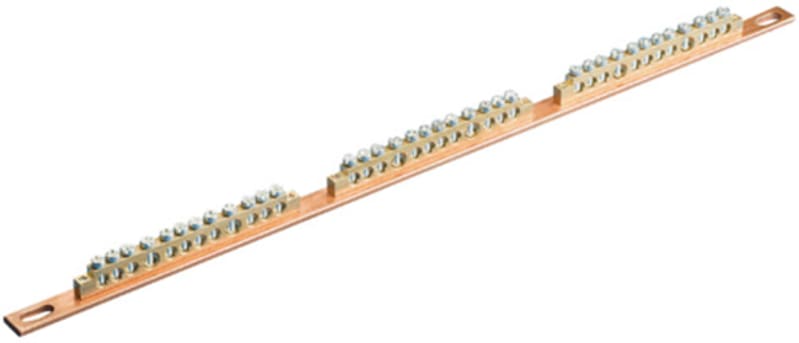

nVent ERIFLEX 568620 Earthing & Neutral Busbar, Brass, 36 Connections
Pricing
Request a quote
We reply within 24 hours
Product Description
Earthing / Grounding connecting bar used for inter-connection of several earthing / grounding conductors.
Technical Specifications
- Manufacturer part number (MPN)
- 568620
- EAN / GTIN
- 3479775686202
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Material
- Brass
- Number of Connections
- 36
- Conductor Size, IEC
- (6) 16 - 35 mm² Stranded;(30) 4 - 16 mm² Stranded
- Ferrule Conductor Size, IEC
- (6) 10 - 35 mm²;(30) 2.5 - 16 mm²
- Conductor Size, UL
- (6) #6 Solid;(30) #8 - #6 Solid;(6) #6 Stranded;(30) #8 - #6 Stranded
- Depth (D)
- 0.59" / 15mm
- Height (H)
- 0.67" / 17 mm
- Width (W)
- 18 1/2" / 470 mm
- A
- 3/4" / 19 mm
- B
- 1.38" / 35 mm
- X
- 0.63" x 0.28" / 16 x 7 mm
- Unit Weight
- 1 lb / 0.46 kg
- Complies With
- IEC® 61439.1
- UPC
- 782856695448
- Standard Packaging Quantity
- 10
- Packing Quantity
- 1
- Construction type
- Surface mounting fix
- Model
- Without covering cap
- Insulator
- No
- Explosion-tested version
- No
- Length
- 15 mm
- Number of connections round conductor total
- 36
- Number of connections conductor to 16 mm² fixed
- 30
- Number of connections conductor to 95 mm² fixed
- 6
- Material of contact rail
- Brass
- Surface of the contact rail
- Untreated
- Material of clamp
- Steel
- Surface of the clamp
- Galvanic/electrolytic zinc plated
- Country of origin
- China
Standards & Compliance
- HS Code
- 8547.20
Cross References
- EAN 3479775686202
- SAP 1000767213
- Code 8559777
Product Documentation
