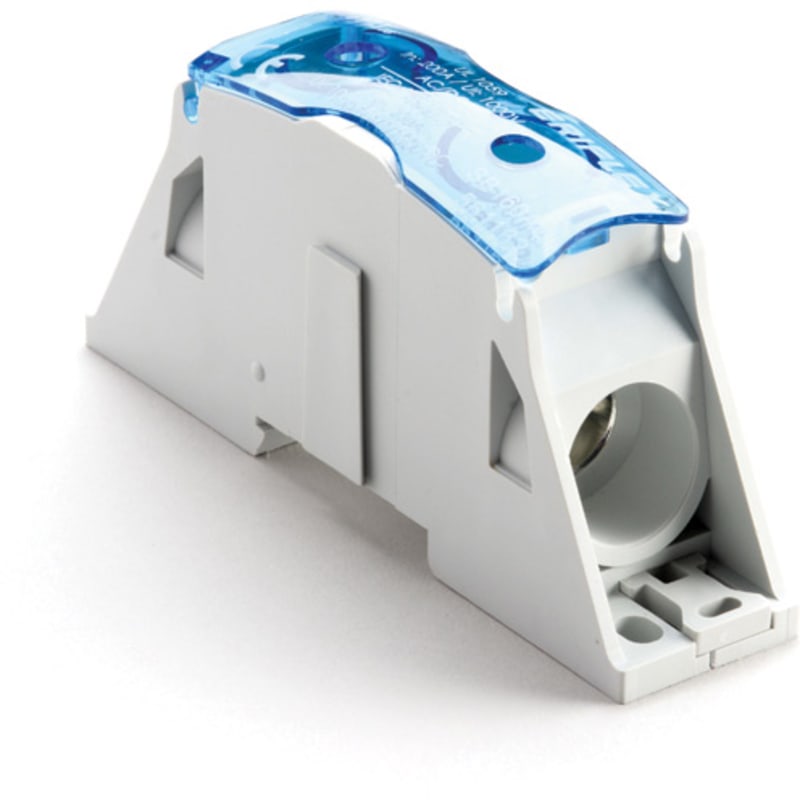

nVent ERIFLEX SB160AL Splice Block, Cable-Cable, 200 A UL, Aluminum
Pricing
Request a quote
We reply within 24 hours
Product Description
Primary output/input device for power connection between primary and secondary switchboard, or for machine or industrial equipment.
Technical Specifications
- Manufacturer part number (MPN)
- SB160AL
- EAN / GTIN
- 8711893155181
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Article Number
- 561162
- Finish
- Tinned
- Type
- Cable-Cable
- Typical Application Current Rating, IEC
- 230 A
- Typical Application Current Rating, UL
- 200 A
- Material
- Aluminum;Thermoplastic
- Line Side Max Conductor Size, IEC
- 70 mm²
- Line Side Max Conductor Size, UL
- 3/0 AWG
- Load Side Max Conductor Size, IEC
- 70 mm²
- Load Side Max Conductor Size, UL
- 3/0 AWG
- Short Term Withstand Current (Icw) 1s
- 14.4kA
- Max Current Rating, IEC
- 230A
- Max Current Rating, UL/CSA
- 200A
- Peak Short Circuit Current (Ipk)
- 42kA
- Rated Conditional Short-Circuit Current (Icc)
- 20kA
- Short Circuit Current Rating (SCCR)
- 100kA
- Max Working Voltage, IEC (Ui)
- 1000;1500
- Max Working Voltage, UL (Vin)
- 1000
- Line Side Number of Connections
- 1
- Line Side Compact Stranded Wire Size
- 35 - 70 mm²;#2 - 3/0
- Load Side Compact Stranded Wire Size
- 35 - 70 mm²;#2 - 3/0
- Load Side Number of Connections
- 1
- Load Side Stranded Wire Size - Ferrule
- 35 - 70 mm²
- Depth (D)
- 2.16" / 55mm
- Height (H)
- 4.37" / 111 mm
- Width (W)
- 1.09" / 27.7 mm
- Unit Weight
- 0.22 lb / 0.1 kg
- Certification Details
- UL® 1059
- Complies With
- IEC® 60947-7-1
- Enclosure Rating
- IP 20
- Flammability Rating
- UL® 94V-0
- UPC
- 782856912682
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Number of poles
- 1
- Conductor cross section solid (solid, stranded)
- 35–70 mm²
- Max. rated current
- 230 A
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8711893155181
- SAP 1000767197
- Code 8560190
