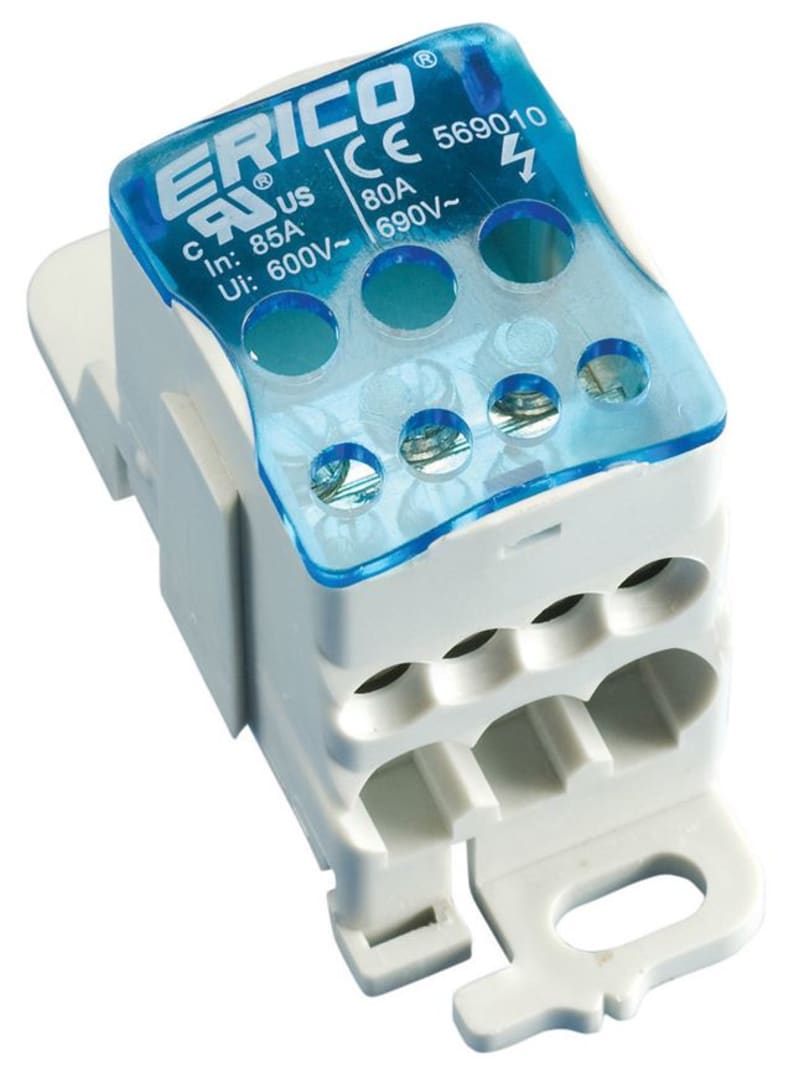

nVent ERIFLEX UD-80A Single Pole Dist. Block, 85 A UL/CSA, Cable Line, 6 Cables Load, Copper
Pricing
Request a quote
We reply within 24 hours
Product Description
Primary device for easy assembly between a wide range of conductors to perform electrical power distribution.
Technical Specifications
- Manufacturer part number (MPN)
- UD-80A # 569010
- EAN / GTIN
- 8711893042641
- Sales unit
- pcs
- Article Number
- 569010
- Finish
- Tinned
- Max Current Rating, IEC
- 80A
- Max Current Rating, UL/CSA
- 85A
- Line Side Connection
- Cable
- Load Side Connection
- 6 Cables
- Material
- Copper;Thermoplastic
- Line Side Max Conductor Size, IEC
- 16 mm²
- Line Side Max Conductor Size, UL
- #4
- Load Side Max Conductor Size, IEC
- 16 mm²
- Load Side Max Conductor Size, UL
- #4
- Max Working Voltage, IEC (Ui)
- 1000
- Max Working Voltage, UL (Vin)
- 600
- Short Term Withstand Current (Icw) 1s
- 3kA
- Peak Short Circuit Current (Ipk)
- 22kA
- Rated Conditional Short-Circuit Current (Icc)
- 11kA
- Short Circuit Current Rating (SCCR)
- 100kA
- Line Side Number of Connections
- 1
- Line Side Compact Stranded Wire Size
- 6 - 16 mm²
- Line Side Wire Size
- 16 Min
- Load Side Number of Connections
- 6
- Load Side Compact Stranded Wire Size
- (2) 2,5 - 16 mm²;(4) 2,5 - 6 mm²
- Load Side Stranded Wire Size - Ferrule
- (2) 2,5 - 16 mm²;(4) 2,5 - 6 mm²
- Load Side Wire Size
- (2) #16 - #4;(4) #16 - #8
- Enclosure Rating
- IP 20
- Depth (D)
- 1.84" / 46mm
- Height (H)
- 2.72" / 69 mm
- Width (W)
- 1.18" / 30 mm
- Unit Weight
- 0.15 lb / 0.07 kg
- Certification Details
- UL® 1059
- Flammability Rating
- UL® 94V-0
- Complies With
- IEC® 60947-7-1
- UPC
- 782856594178
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Number of poles
- 1
- Conductor cross section solid (solid, stranded)
- 2.5–16 mm²
- Max. rated current
- 80 A
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- China
