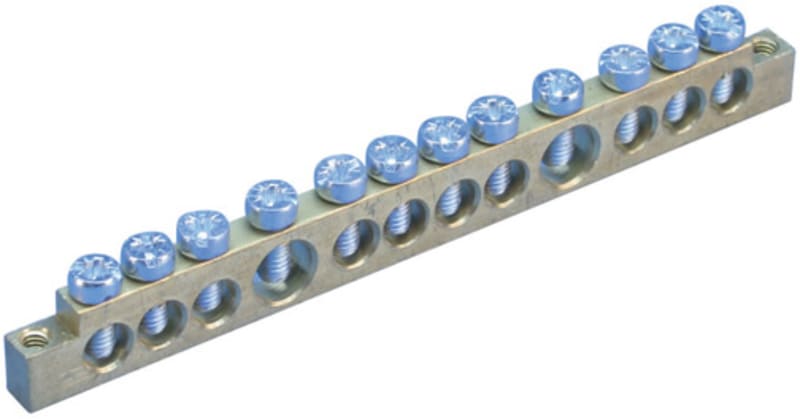

nVent ERIFLEX 568610 Earthing & Neutral Busbar, Brass, 12 Connections
Pricing
Request a quote
We reply within 24 hours
Product Description
Earthing / Grounding connecting bar used for inter-connection of several earthing / grounding conductors.
Technical Specifications
- Manufacturer part number (MPN)
- 568610
- EAN / GTIN
- 3479775686103
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Material
- Brass
- Number of Connections
- 12
- Conductor Size, IEC
- (2) 16 - 35 mm² Stranded;(10) 4 - 16 mm² Stranded
- Ferrule Conductor Size, IEC
- (2) 10 - 35 mm²;(10) 2.5 - 16 mm²
- Conductor Size, UL
- (2) #6 Solid;(10) #8 - #6 Solid;(2) #6 Stranded;(10) #8 - #6 Stranded
- Max Current Rating
- 250A
- Depth (D)
- 0.24" / 6mm
- Height (H)
- 0.51" / 13 mm
- Width (W)
- 4.72" / 120 mm
- A
- 4.13" / 105 mm
- B
- 0.35" / 9 mm
- Unit Weight
- 0.15 lb / 0.07 kg
- Complies With
- IEC® 61439.1
- UPC
- 782856695325
- Standard Packaging Quantity
- 10
- Packing Quantity
- 1
- Construction type
- Surface mounting fix
- Model
- Without covering cap
- Insulator
- No
- Explosion-tested version
- No
- Length
- 6 mm
- Number of connections round conductor total
- 12
- Number of connections conductor to 16 mm² fixed
- 10
- Number of connections conductor to 95 mm² fixed
- 2
- Material of contact rail
- Brass
- Surface of the contact rail
- Untreated
- Material of clamp
- Steel
- Surface of the clamp
- Galvanic/electrolytic zinc plated
- Country of origin
- China
Standards & Compliance
- HS Code
- 8547.20
Cross References
- EAN 3479775686103
- SAP 1000767211
- Code 8560564
Product Documentation
More from Eriflex
Eriflex
nVent ERIFLEX 568661 Earthing & Neutral Busbar, Brass, 60 Connections
Eriflex
nVent ERIFLEX TCB15X5-1M Threaded Busbar with Fixing Slot, 0.59" x 0.2" x 38.98"
Eriflex
nVent ERIFLEX UDJ-125A Single Pole Dist. Block, 150 A UL/CSA, Cable Line, 7 Cables Load, Copper
UDJ-125A # 569020
Eriflex

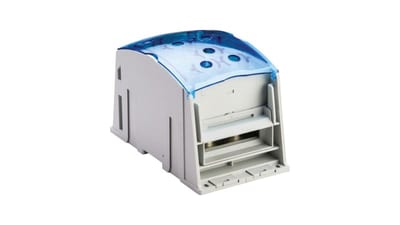

nVent ERIFLEX SBF4C1600AL Splice Block, FLEXIBAR-4 Cables, 1,680 A UL, Aluminum
