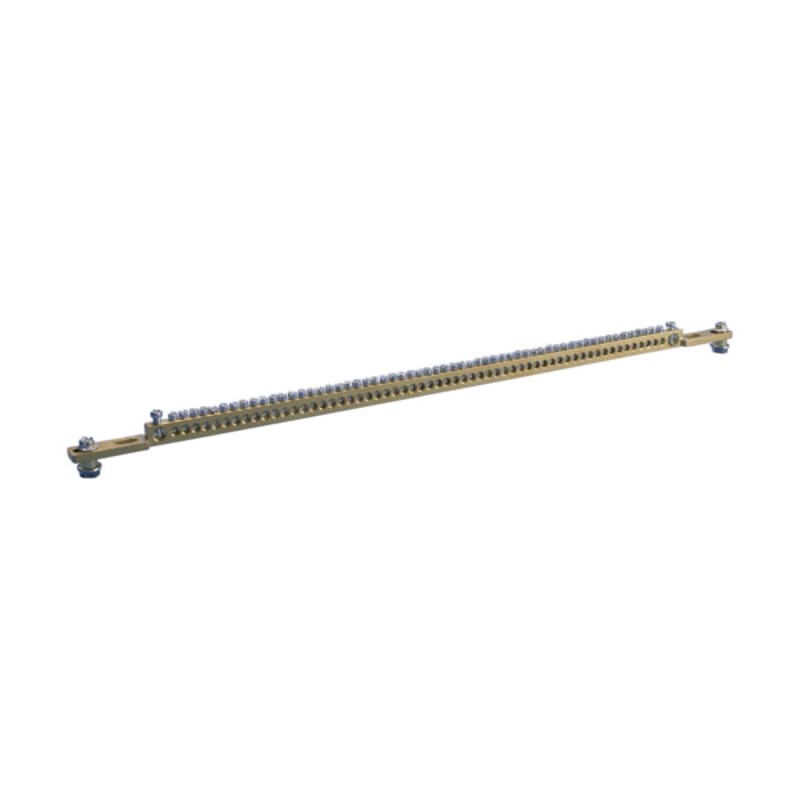

nVent ERIFLEX 568661 Earthing & Neutral Busbar, Brass, 60 Connections
Pricing
Request a quote
We reply within 24 hours
Product Description
Earthing / Grounding connecting bar used for inter-connection of several earthing / grounding conductors.
Technical Specifications
- Manufacturer part number (MPN)
- 568661
- EAN / GTIN
- 8711893053685
- Sales unit
- pcs
- Material
- Brass
- Number of Connections
- 60
- Conductor Size, IEC
- (1) 16 - 35 mm² Stranded;(1) 4 - 16 mm² Stranded;(58) 1.5 - 4 mm² Stranded
- Ferrule Conductor Size, IEC
- (1) 10 - 35 mm²;(1) 2.5 - 16 mm²;(58) 0.75 - 4 mm²
- Conductor Size, UL
- (1) #6 Stranded;(1) #12 - #6 Stranded;(58) #16 - #10 Stranded;(58) #16 - #10 Solid
- Max Current Rating
- 250A
- Depth (D)
- 0.51" / 13mm
- Height (H)
- 0.51" / 13 mm
- Width (W)
- 18.19" / 462 mm
- Thickness (T)
- 0.2" / 5 mm
- A
- 14.8" / 376 mm
- B
- 1.69" / 43 mm
- X
- 0.24" x 0.28" / 6.2 x 7 mm
- Unit Weight
- 0.68 lb / 0.31 kg
- Complies With
- IEC® 61439.1
- UPC
- 782856844990
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Construction type
- Surface mounting fix
- Model
- Without covering cap
- Insulator
- No
- Explosion-tested version
- No
- Length
- 462 mm
- Number of connections round conductor total
- 60
- Number of connections round conductor 8 mm
- 1
- Number of connections round conductor 10 mm
- 1
- Number of connections round conductor 8-10 mm
- 1
- Number of connections conductor to 6 mm² fixed
- 1
- Number of connections conductor to 16 mm² fixed
- 1
- Number of connections conductor to 25 mm² fixed
- 1
- Material of contact rail
- Brass
- Surface of the contact rail
- Untreated
- Material of clamp
- Steel
- Surface of the clamp
- Galvanic/electrolytic zinc plated
- Country of origin
- France
Standards & Compliance
- HS Code
- 8547.20
Cross References
- EAN 8711893053685
- SAP 1000524015
- Code 8995455
Product Documentation
