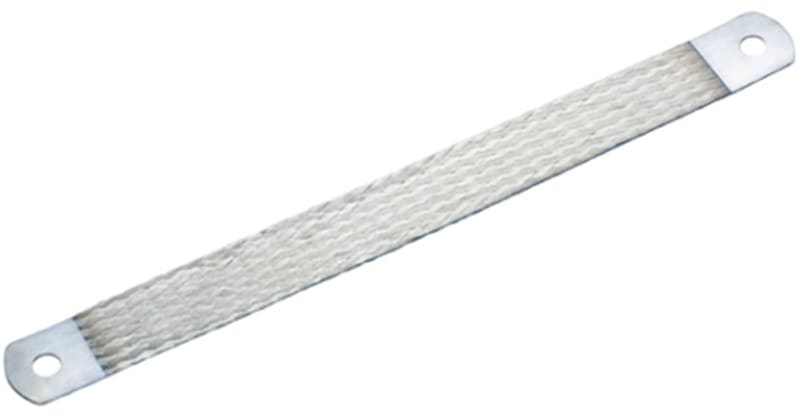

nVent ERIFLEX 563490 MBJ Grounding and Bonding Braid, Tinned Copper, 290 A Ampacity, 138.15 kcmil, 19.685", 0.413" Hole
Pricing
Request a quote
We reply within 24 hours
Product Description
Flat Tinned Copper Grounding Braid.
Technical Specifications
- Manufacturer part number (MPN)
- 563490
- EAN / GTIN
- 3479775634906
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Material
- Copper
- Finish
- Tinned
- Working Temperature
- 221 °F Max / 105 °C Max
- Certification Details
- UL® 467
- Complies With
- IEC® 60439.1;IEC® 61439.1
- Ampacity
- 290A
- Thickness (T)
- 0.13" / 3.4 mm
- Cross Section
- 138.15kcmil / 70mm²
- Length (L)
- 19.68" / 500mm
- Hole Size (HS)
- 0.41" / 10.5 mm
- A
- 1.1" / 28 mm
- B
- 1.3" / 33 mm
- Unit Weight
- 0.75 lb / 0.34 kg
- UPC
- 782856579670
- Standard Packaging Quantity
- 10
- Packing Quantity
- 1
- Nominal cross section conductor
- 70 mm²
- Conductor category
- Class 2 = stranded
- Shape of conductor
- Flat
- Braided
- Yes
- Outer diameter approximate
- 40 mm
- Cable width approximate
- 40 mm
- Cable height approximate
- 4 mm
- Insulated
- No
- With connecting lugs
- No
- Connection lugs drilled
- Yes
- With cable lugs
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 7413.00
Cross References
- EAN 3479775000374
- SAP 1000767208
- Code 8559775
Product Documentation
