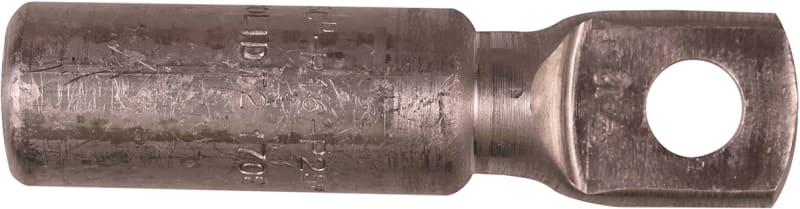

Elpress AK150-12 Aluminium Compression Cable Lug 150 mm² M12
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress AK150-12 — compression (crimp) cable lug for terminating a 150 mm² aluminium conductor onto an M12 stud. Formed from solid aluminium (Al 99.7%) for connecting aluminium conductors to aluminium busbars and apparatus. Accepts solid (IEC 60228 Class 1) and stranded (Class 2) aluminium conductors. Requires two compression crimps per the Elpress crimp sequence; the connection is tested to IEC 61238-1 within the Elpress crimp system. Used in low-voltage power distribution, switchgear and cabinet terminations.
Technical Specifications
- Type
- Compression (crimp) aluminium cable lug
- Conductor cross-section
- 150 mm²
- Stud / bolt hole
- M12
- Conductor class
- Solid (IEC 60228 Cl.1) & stranded (Cl.2) aluminium
- Material
- Solid aluminium (Al 99.7%)
- Crimp
- Two compression crimps (observe Elpress crimp sequence)
- Crimp system
- System Elpress, tested to IEC 61238-1
- Manufacturer part number (MPN)
- AK150-12
- EAN / GTIN
- 7393487008854
- Sales unit
- pcs
- Package quantity
- 12 pcs
- HS code
- 8536.90
- Article number
- 7311-403100
- Type designation
- AK150-12
- W (mm)
- 27
- N (mm)
- 14
- N1 (mm)
- 15
- P (mm)
- 29
- d (mm)
- 15.8
- L (mm)
- 104
- t (mm) - palm thickness
- 10.5
- s (mm) - strip length
- 60
- Screw
- M12
- AWG/MCM Stranded Al
- 300 MCM
- AWG/MCM Solid Al
- 350 MCM
- mm² Stranded Al
- 150
- mm² Solid Al
- 185
- Number of mounting holes
- 1
- Bolt dimension metric (M)
- 12
- Cross section shape
- Round/sector-shaped
- Nominal cross section aluminium, SE, Min (mm²)
- 185
- Nominal cross section aluminium, SE, Max (mm²)
- 185
- Nominal cross section aluminium, RM/SM, Max (mm²)
- 150
- Pieces per pack
- 12
- Net weight (kg)
- 0.075
- Height Pack (mm)
- 80
- Depth Pack (mm)
- 140
- Width Pack (mm)
- 176
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487008854
- SAP 1000083627
- Code 8863579
Product Documentation
