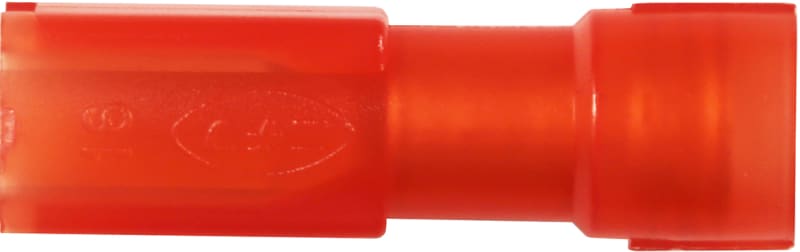

Elpress A1503FLSF5 Fully Insulated Receptacle, Rolled Type, 0.5-1.5 mm²
Part numberA1503FLSF5EAN / GTIN7393487005099HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress A1503FLSF5 Helisolerad blade receptacle.
Technical Specifications
- Manufacturer part number (MPN)
- A1503FLSF5
- EAN / GTIN
- 7393487005099
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7465-500800
- Type designation
- A1503FLSF5
- W (mm)
- 5.5
- d (mm)
- 3.4
- L (mm)
- 19.5
- s (mm) - strip length
- 7
- Insulation material
- PA
- Tab Size
- 2,8x0,5
- Insulation colour
- Red (insulated terminals)
- Material
- Brass, Cu/Sn
- Easy-entry
- Yes
- Neck type
- Reinforcement sleeve
- AWG/MCM Cu
- 20 - 16 AWG
- mm² Cu
- 0,5-1,5
- Model
- Sleeve
- Halogen free
- Yes
- Insulation
- Fully isolated
- Colour insulation
- Red
- AWG-range, Min
- 20
- AWG-range, Max
- 16
- Nominal cross section, Min (mm²)
- 0.5
- Nominal cross section, Max (mm²)
- 1.5
- Material insulation
- PA (Polyamide)
- Pieces per pack
- 100
- Net weight (kg)
- 0.0007
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Surface protection
- Tinned
- Plug dimensions
- Flat 2.8x0.5 mm
- AWG-range
- 16–20
- Nominal cross section
- 0.5–1.5 mm²
- With cam clamp
- No
- With tap spreader
- No
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487005099
- SAP 1000034492
- Code 8756831
Product Documentation
Document preview: Elpress A1503FLSF5 Fully Insulated Receptacle, Rolled Type, 0.5-1.5 mm² — Specification sheet
