Product Description

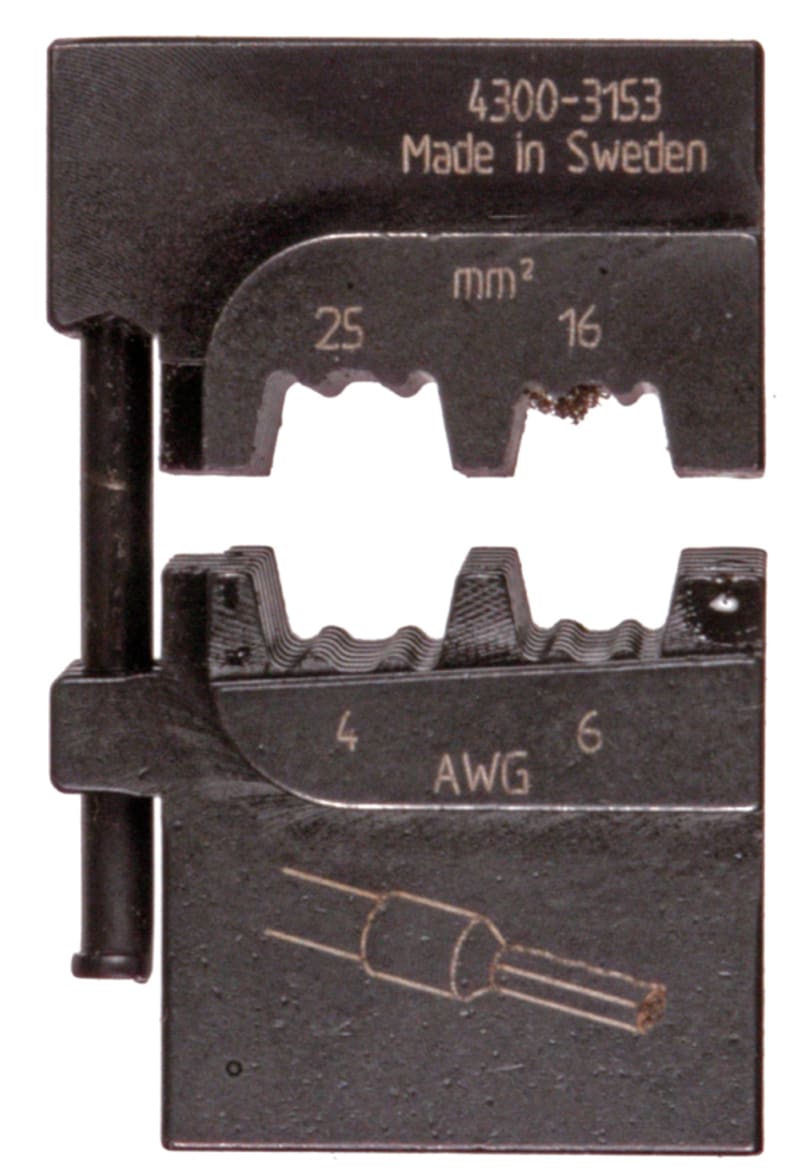

Elpress crimping die for wire-end ferrules. Part of the Elpress crimping tool system. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- OEB1625
- EAN / GTIN
- 7393487035065
- Sales unit
- pcs
- Article number
- 5119-315300
- Type designation
- OEB1625
- Crimp geometries
- Rectangle
- Application (connector type)
- End sleeves
- mm² Cu
- 16-25
- Application
- Cable end sleeves
- Compression shape
- Trapezoid compression
- Cross section, Min (mm²)
- 16
- Cross section, Max (mm²)
- 25
- AWG-range, Min
- 5
- AWG-range, Max
- 3
- Pieces per pack
- 1
- Net weight (kg)
- 0.089
- Height Pack (mm)
- 115
- Depth Pack (mm)
- 25
- Width Pack (mm)
- 73
- Cross section
- 16–25 mm²
- AWG-range
- 3–5
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 7393487035065
- SAP 1000036297
- Code 8725700
Product Documentation
