Elpress

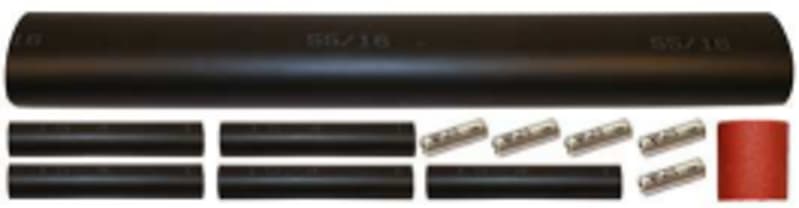

Elpress KHS-AS1625-5 Crimp Connector with Heat-Shrink Insulation
Part numberKHS-AS1625-5EAN / GTIN7393487049208HS code8536.90
Cables & Wiring
Cable Joints
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress KHS-AS1625-5 Cable joint.
Technical Specifications
- Manufacturer part number (MPN)
- KHS-AS1625-5
- EAN / GTIN
- 7393487049208
- Sales unit
- pcs
- Article number
- 7336-002200
- Type designation
- KHS-AS1625-5
- Max voltage (kV)
- 1
- mm² Stranded Al
- 16-25
- Model
- Heat shrink
- Colour
- Black
- Halogen free
- Yes
- Suitable for
- Other
- Protective conductor
- Yes
- Pieces per pack
- 1
- Net weight (kg)
- 0.264
- Height Pack (mm)
- 45
- Depth Pack (mm)
- 550
- Width Pack (mm)
- 150
- Number of conductors
- 5
- Voltage level
- 0.6/1 kV
- Insulating material
- Plastic
- Mining sector approval
- No
- With concentric shielding
- Yes
- With protective conductor
- Yes
- Nominal cross section conductor
- 16–25 mm²
- For connection of paper- with plastic insulated cables
- Yes
- Connection accessories included
- Press-/crimp connector
- Rated voltage U0/U (Um)
- 0.6/1 (1.2) kV
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487049208
- SAP 1000679202
- Code 8282422
Product Documentation
Document preview: Elpress KHS-AS1625-5 Crimp Connector with Heat-Shrink Insulation — Specification sheet
More from Elpress
Elpress

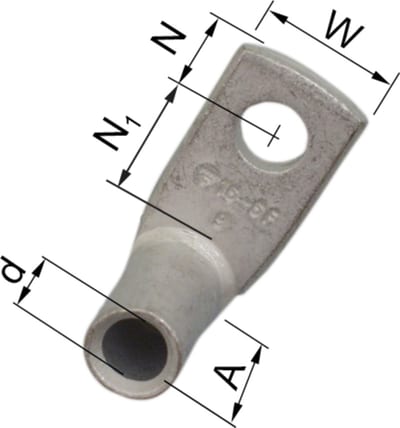

Elpress KRF120-10-90GR-SB Copper 90° Angled Tube Cable Lug 120 mm² M10
Elpress

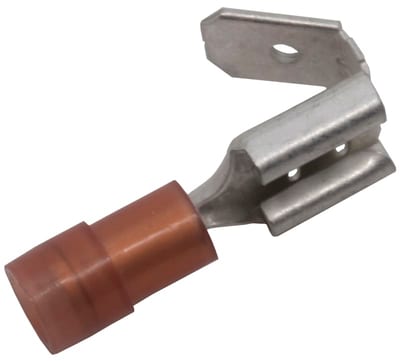

Elpress Spadecoupling with branch, red, 1,5mm², width 7,4mm, length 22mm, 6,3X0,8
A1507FLSH
Elpress

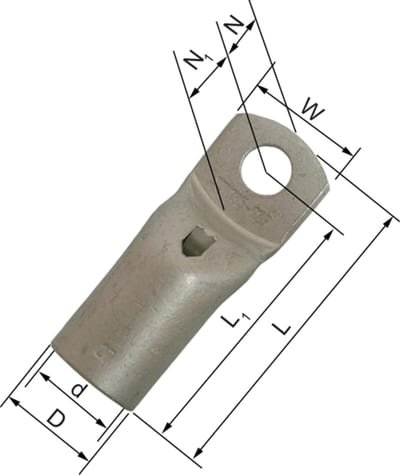

Elpress KRFN120-10 Copper Tube Cable Lug (Narrow Palm) 120 mm² M10
Elpress
KRFS300A-12 (7301-293000)
Elpress
Elpress KRF16-10-CP Copper Tube Cable Lug 16 mm² M10
Krf16-10-Cp
Elpress

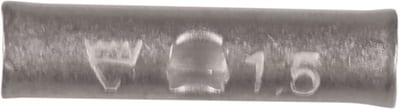

Elpress KS1,5 Copper Compression Through Connector 1.5 mm²
Elpress
Elpress FBS1723 Stripping Tool
Elpress

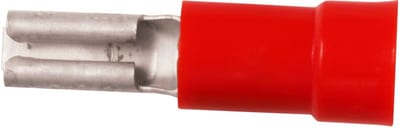

Elpress A1507FLS
