Elpress

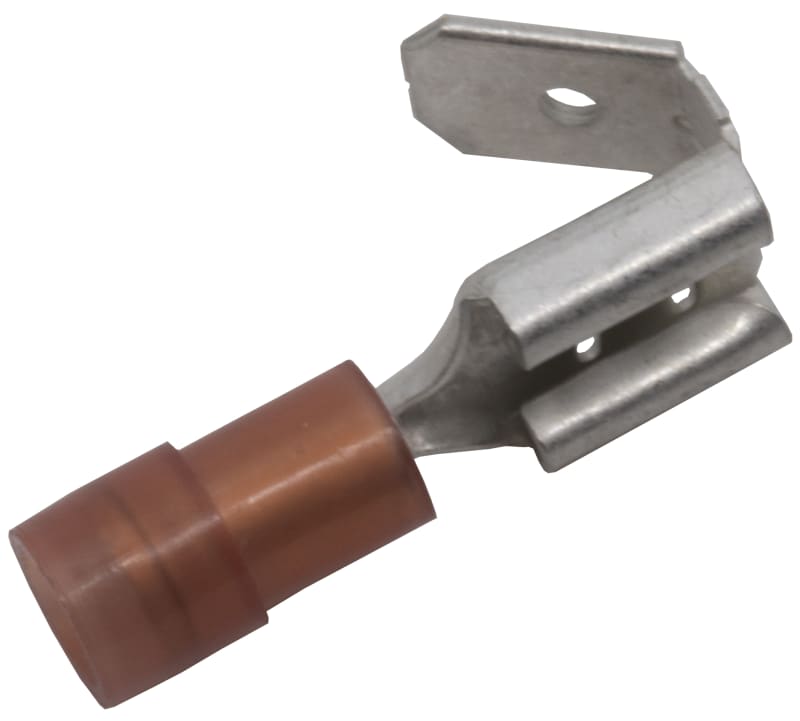

Elpress Spadecoupling with branch, red, 1,5mm², width 7,4mm, length 22mm, 6,3X0,8
Part numberA1507FLSHEAN / GTIN7393487005150HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress A1507FLSH Spademuffe with branch, red, 1,5mm², width 7,4mm, length 22mm, 6,3x0,8.
Technical Specifications
- Manufacturer part number (MPN)
- A1507FLSH
- EAN / GTIN
- 7393487005150
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Conductor cross-section
- 1.5 mm²
- Article number
- 7487-500100
- Type designation
- A1507FLSH
- W (mm)
- 6.9
- d (mm)
- 3.2
- L (mm)
- 22
- s (mm) - strip length
- 7
- Insulation material
- PA
- Tab Size
- 6,3x0,8
- Insulation colour
- Red (insulated terminals)
- Material
- Brass, Cu/Sn
- Easy-entry
- Yes
- Neck type
- Reinforcement sleeve
- AWG/MCM Cu
- 20 - 16 AWG
- mm² Cu
- 0,5-1,5
- Model
- Sleeve
- Halogen free
- Yes
- Insulation
- Partially isolated
- Colour insulation
- Red
- AWG-range, Min
- 20
- AWG-range, Max
- 16
- Nominal cross section, Min (mm²)
- 0.5
- Nominal cross section, Max (mm²)
- 1.5
- Material insulation
- PA (Polyamide)
- Pieces per pack
- 100
- Net weight (kg)
- 0.0014
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 46
- Surface protection
- Tinned
- Plug dimensions
- Flat 6.3x0.8 mm
- AWG-range
- 16–20
- Nominal cross section
- 0.5–1.5 mm²
- With cam clamp
- No
- With tap spreader
- No
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487005150
- SAP 1000016118
- Code 8487087
Product Documentation
Document preview: Elpress Spadecoupling with branch, red, 1,5mm², width 7,4mm, length 22mm, 6,3X0,8 — Specification sheet
More from Elpress
Elpress
Elpress KRFN120-10 Copper Tube Cable Lug (Narrow Palm) 120 mm² M10
Elpress
KRFS300A-12 (7301-293000)
Elpress
Elpress KRF16-10-CP Copper Tube Cable Lug 16 mm² M10
Krf16-10-Cp
Elpress
Elpress KS1,5 Copper Compression Through Connector 1.5 mm²
Elpress
Elpress FBS1723 Stripping Tool
Elpress
Elpress A1507FLS
Elpress
Elpress A2585R Ring Terminal, 1.5-2.5 mm²
Elpress
Elpress A2553R
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy A1507FLSH?
- A1507FLSH can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is A1507FLSH.
- What is the HS code for A1507FLSH?
- The customs tariff (HS) code for A1507FLSH is 8536.90.
- Who manufactures A1507FLSH?
- A1507FLSH is a Elpress product in the Electrical Components range.
- Is a datasheet available for A1507FLSH?
- Yes — the A1507FLSH datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for A1507FLSH?
- The minimum order quantity is 1.
- Is A1507FLSH available?
- Yes — A1507FLSH is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
