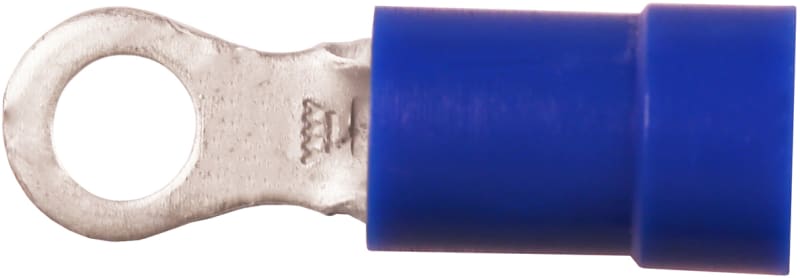

Elpress A2585R Ring Terminal, 1.5-2.5 mm²
Part numberA2585REAN / GTIN7393487004405HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress A2585R Insulated ring terminal.
Technical Specifications
- Manufacturer part number (MPN)
- A2585R
- EAN / GTIN
- 7393487004405
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Conductor cross-section
- 1.5-2.5 mm²
- Article number
- 7280-261500
- Type designation
- A2585R
- d (mm)
- 4.5
- t (mm) - palm thickness
- 0.75
- s (mm) - strip length
- 8
- Insulation material
- PC
- Insulation colour
- Blue (insulated terminals)
- Material
- Cu, Cu/Sn
- Easy-entry
- Yes
- Screw
- M8
- Neck type
- Brazed
- AWG/MCM Cu
- 16 - 14 AWG
- mm² Cu
- 1,5-2,5
- W (mm)
- 14
- L1 (mm)
- 21
- L (mm)
- 28
- Halogen free
- Yes
- Surface protection
- Tin plated
- Insulation
- Partially isolated
- Flange shape
- Ring shape
- Colour insulation
- Blue
- Bolt dimension metric (M)
- 8
- AWG-range, Min
- 16
- AWG-range, Max
- 14
- Nominal cross section, Min (mm²)
- 1.5
- Nominal cross section, Max (mm²)
- 2.5
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Net weight (kg)
- 0.001
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 46
- Pieces per pack
- 100
- Total length
- 28 mm
- For pull protected connections
- No
- Reel/roll packaging
- No
- Bolt dimension (metric)
- 8
- AWG-range
- 14–15
- Nominal cross section
- 1.5–2.5 mm²
- Suitable for flat conductors
- No
- Suitable for high temperatures (to 650 °C)
- No
- Suitable for insulated varnish
- No
- According to DIN
- No
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004405
- SAP 1000026235
- Code 8206401
Product Documentation
