Product Description

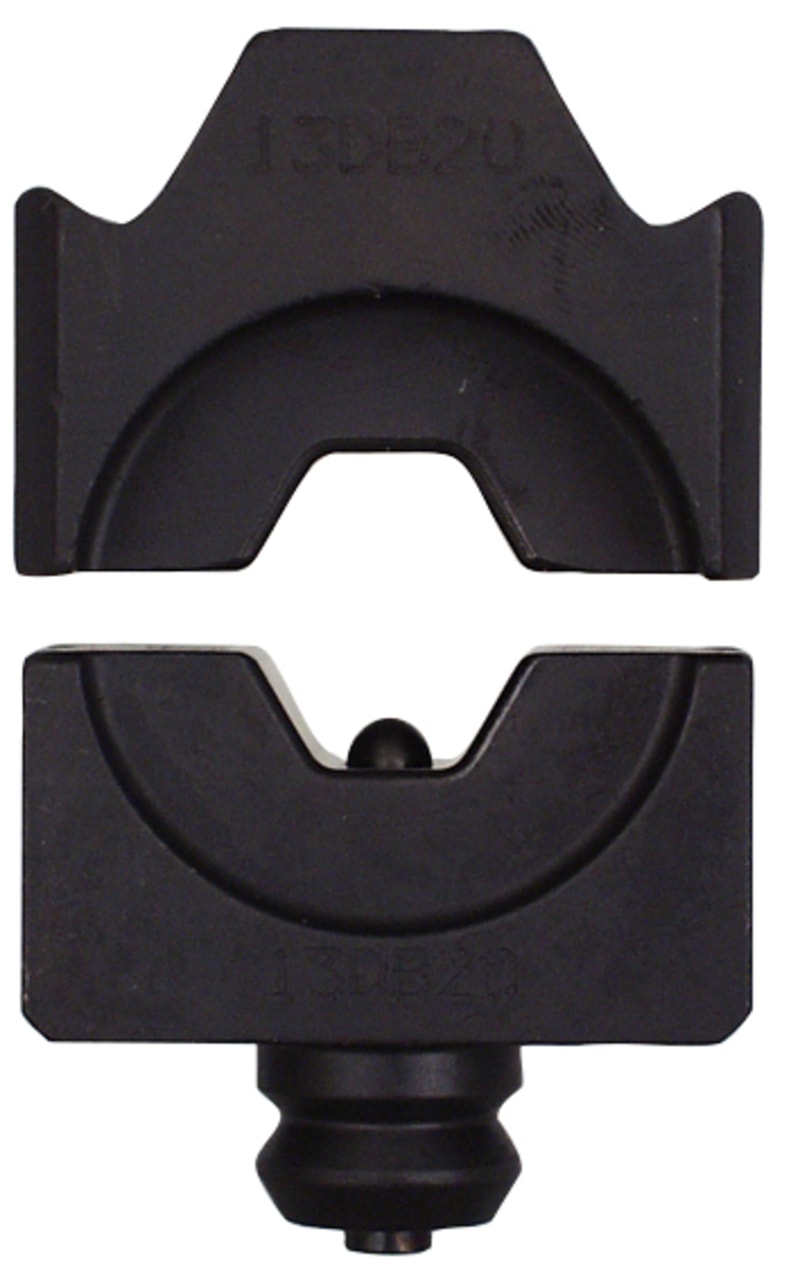

Elpress crimping die set. Part of the Elpress crimping tool system. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- 5303-104900
- EAN / GTIN
- 7393487026261
- Sales unit
- pcs
- Article number
- 5303-104900
- Type designation
- 13DB30
- W (mm)
- 27.1
- L (mm)
- 13
- h1 (mm)
- 11.73
- Crimp geometries
- Dual
- Number of crimps
- 2
- mm² KR/KS, KRF/KSF
- 240
- Application
- Pipe cable lug and connectors
- Compression shape
- Hexagon
- Cross section, Min (mm²)
- 240
- Cross section, Max (mm²)
- 240
- Pieces per pack
- 1
- Net weight (kg)
- 0.453
- Height Pack (mm)
- 70
- Depth Pack (mm)
- 90
- Width Pack (mm)
- 90
- Cross section
- 240 mm²
- AWG-range
- 500
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 7393487026261
- SAP 1000055494
- Code 8886959
Product Documentation
More from Elpress
Elpress
Elpress Crimping die for wire-end ferrules (OEB1625)
Elpress
Elpress A0,75-8ET2 Twin Insulated End Ferrule 2 × 0.75 mm² 8 mm
Elpress

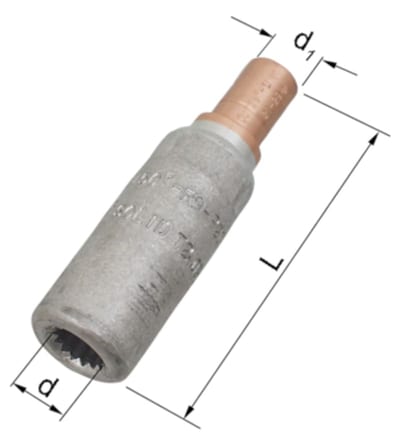

Elpress AKS95-50 Aluminium-Copper Bimetallic Through Connector 95 mm² Al / 50 mm² Cu
