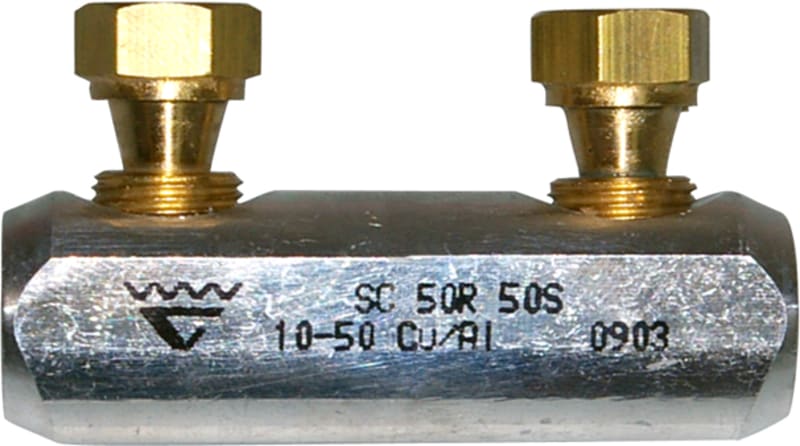

Elpress SC50R50S Shear-Bolt Splice Connector, 10-50 mm², Tin-Plated
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress SC50R50S is a tin-plated shear-bolt splice connector for copper and aluminium conductors from 10 to 50 mm², rated 1 to 36 kV. The pre-assembled M12 shear-off bolts break at torque to give repeatable installation without a dedicated crimp tool. Body length 62 mm, diameter 10.7 mm; strip length 32 mm. Supplied in packs of 10.
Technical Specifications
- Manufacturer part number (MPN)
- SC50R50S
- EAN / GTIN
- 7393487041899
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Article number
- 7320-010100
- Type designation
- SC50R50S
- d (mm)
- 10.7
- L (mm)
- 62
- s (mm) - strip length
- 32
- Max voltage (kV)
- 1-36
- Screen conductor (mm²)
- 10-35
- Cable type Round (mm²)
- 10-50
- Cable type Sector (mm²)
- 16-50
- Surface protection
- Tin plated
- With shear-off head
- Yes
- Bolt dimension metric (M)
- 12
- Nominal cross section copper, RM, Min (mm²)
- 10
- Nominal cross section copper, RM, Max (mm²)
- 50
- Nominal cross section copper, RE, Min (mm²)
- 10
- Nominal cross section copper, RE, Max (mm²)
- 35
- Nominal cross section copper, SM, Min (mm²)
- 16
- Nominal cross section copper, SM, Max (mm²)
- 50
- Nominal cross section aluminium, RM, Min (mm²)
- 10
- Nominal cross section aluminium, RM, Max (mm²)
- 50
- Nominal cross section aluminium, RE, Min (mm²)
- 10
- Nominal cross section aluminium, RE, Max (mm²)
- 50
- Nominal cross section aluminium, SM, Min (mm²)
- 16
- Nominal cross section aluminium, SM, Max (mm²)
- 50
- Nominal cross section aluminium, SE, Min (mm²)
- 16
- Nominal cross section aluminium, SE, Max (mm²)
- 50
- Min. AWG-size
- Other
- Max. AWG-size
- Other
- Pieces per pack
- 10
- Net weight (kg)
- 0.067
- Height Pack (mm)
- 70
- Depth Pack (mm)
- 90
- Width Pack (mm)
- 90
- Bolt dimension (metric)
- 12
- Nominal cross section copper, RM
- 10–50 mm²
- Nominal cross section copper, RE
- 10–50 mm²
- Nominal cross section copper, SM
- 16–50 mm²
- Nominal cross section aluminium, RM
- 10–50 mm²
- Nominal cross section aluminium, RE
- 10–50 mm²
- Nominal cross section aluminium, SM
- 16–50 mm²
- Nominal cross section aluminium, SE
- 16–50 mm²
- Material conductor
- Aluminium/copper
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487041899
- SAP 1000416745
- Code 81121224
