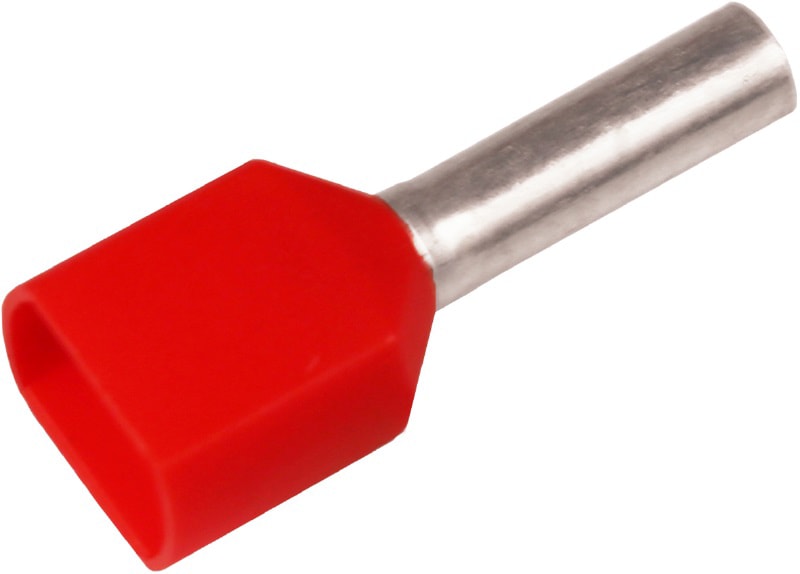

Elpress A1-10ET2 Twin Insulated End Ferrule 2 × 1 mm² 10 mm

Elpress A1-10ET2 — pre-insulated end ferrule (cord-end / bootlace terminal) for terminating two 1 mm² conductors (2 × 1 mm²) in a single 10 mm tinned-copper barrel and a polypropylene insulating collar. The barrel is electrolytic copper (Cu 99.95%) tin-plated (Cu/Sn); the neck is brazed and annealed so it can be crimped in any orientation. Insulation and dimensions conform to DIN 46228-4; halogen-free. Crimped with matching Elpress dies (System Elpress) for a gas-tight termination into terminal blocks, connectors and switchgear. Operating temperature −5 °C to +105 °C. Approvals: CSA, UL, CE, UKCA; REACH / RoHS compliant.

Type

Pre-insulated end ferrule (cord-end terminal), twin

Conductor cross-section

2 × 1 mm²

Insulated barrel length

10 mm

Barrel material

Electrolytic copper Cu 99.95%, tin-plated (Cu/Sn)

Insulation

Polypropylene (PP), halogen-free

Standard

DIN 46228-4

Operating temperature

−5 °C to +105 °C

Crimp system

System Elpress; brazed and annealed neck (crimp in any direction)

Approvals

CSA, UL, CE, UKCA; REACH / RoHS

Manufacturer part number (MPN)

A1-10ET2

EAN / GTIN

7393487013902

Sales unit

pcs

Package quantity

100 pcs

HS code

8536.90

Article number

7287-009800

Type designation

A1-10ET2

H (mm)

3

d (mm)

2

L1 (mm)

10

L (mm)

17

s (mm) - strip length

12

Working temperature, Min (°C)

-5

Working temperature, Max (°C)

105

Insulation material

PP

Insulation colour

Red (end sleeves)

Material

Cu, Cu/Sn

AWG/MCM Cu

2x18 AWG

mm² Cu

2 x 1

Colour

Red

Sleeve length (mm)

10

Insulated

Yes

Halogen free

Yes

Surface protection

Tin plated

Construction type

Twin cable end sleev

Material insulation

PP (Polypropylene)

AWG size

Other

Nominal cross section (mm²)

1

Pieces per pack

100

Net weight (kg)

0.0001

Height Pack (mm)

85

Depth Pack (mm)

180

Width Pack (mm)

145

HS Code

8536.90

• EAN 7393487013902
• MPN A1-10ET2
