Product Description

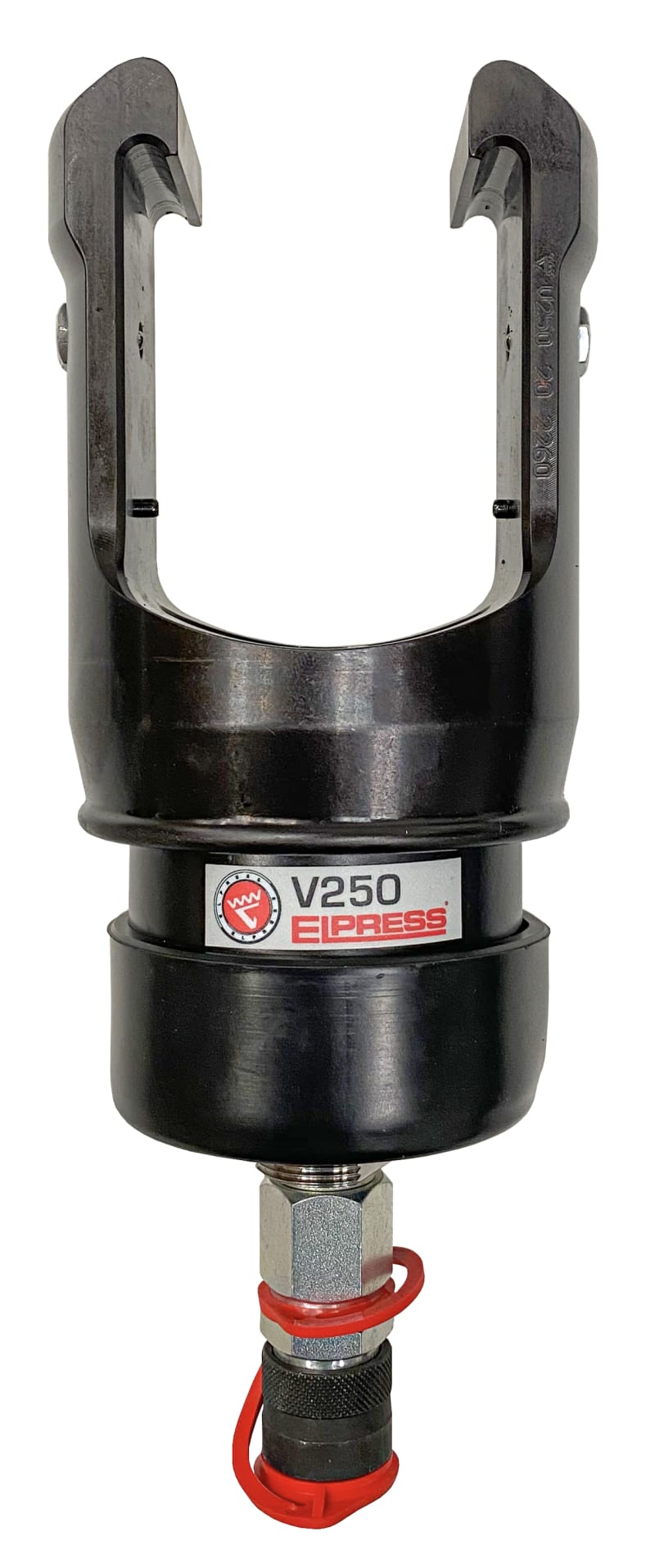

Elpress hydraulic crimp head. Part of the Elpress crimping tool system. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- V250
- EAN / GTIN
- 7393487035911
- Sales unit
- pcs
- Article number
- 5208-250000
- Type designation
- V250
- Crimp geometries
- Punch, Hexagonal, Oval
- Safety device
- Protective cover
- Working pressure (MPa)
- 63
- Quick connector
- Yes
- AWG/MCM Stranded Al
- 6 AWG - 1250 MCM
- AWG/MCM Solid Al
- 6 AWG - 550 MCM
- AWG/MCM Cu
- 8 AWG - 1600 MCM
- mm² Stranded Al
- 16-630
- mm² Solid Al
- 16-300
- mm² Cu
- 10-800
- Crimp range Cu-terminals min (mm²)
- 10
- Crimp range Cu-terminals max (mm²)
- 800
- Crimp range C-connectors min (mm²)
- 6
- Crimp range C-connectors max (mm²)
- 300
- Crimp range Al-terminals min (mm²)
- 16
- Crimp range Al-terminals max (mm²)
- 630
- Suitable for
- Cable lugs and connectors
- Construction/operation
- Hydraulisc press head
- Compression shape
- Universal (exchangeable inserts)
- Cross section, Min (mm²)
- 10
- Cross section, Max (mm²)
- 800
- AWG-range, Min
- 8
- AWG-range, Max
- 1600
- With automatic return
- Yes
- Inserts exchangeable
- Yes
- Compression force, Min (kN)
- 250
- Compression force, Max (kN)
- 250
- Length (mm)
- 280
- Pieces per pack
- 1
- Net weight (kg)
- 4.68
- Height Pack (mm)
- 330
- Depth Pack (mm)
- 100
- Width Pack (mm)
- 100
- Application
- Not insulated cable connections
- Cross section
- 10–800 mm²
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 7393487035911
- SAP 1000068728
- Code 8749539
