Product Description

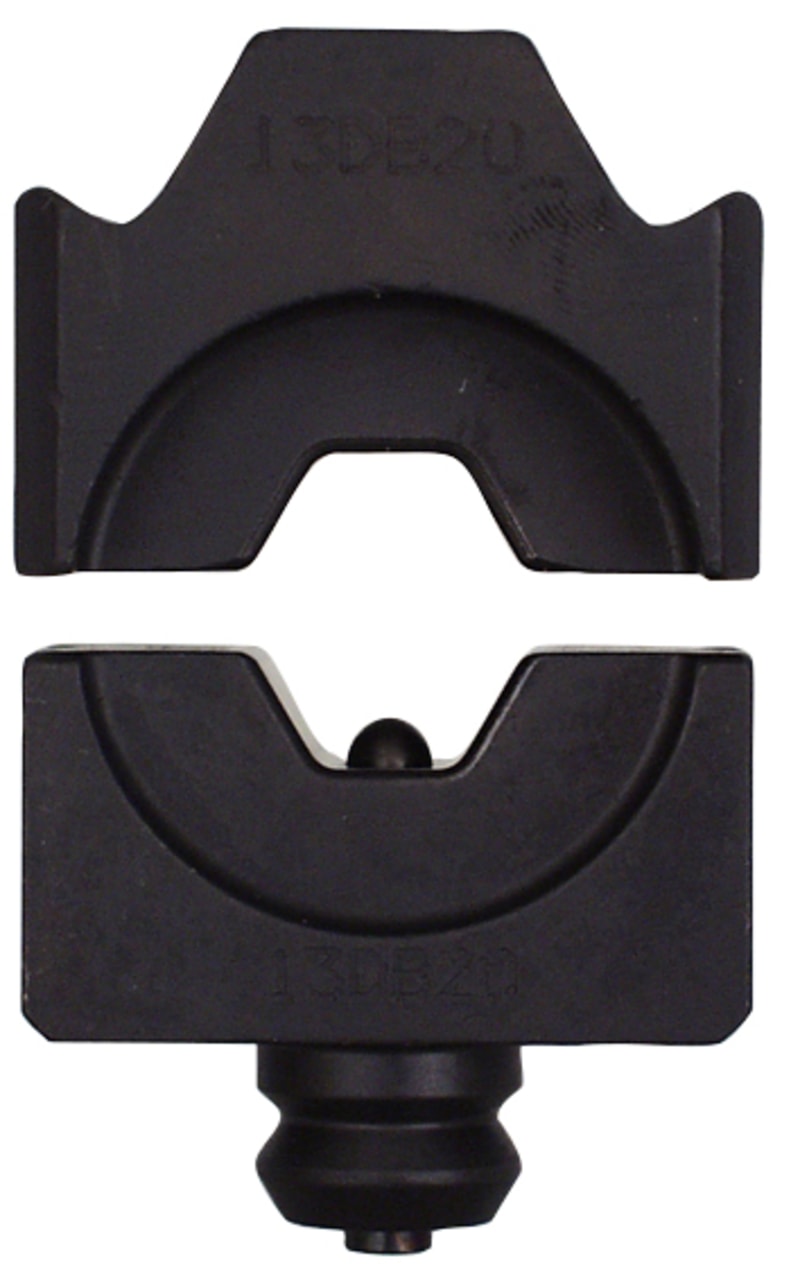

Elpress crimping die set. Part of the Elpress crimping tool system. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- 5303-104500
- EAN / GTIN
- 7393487026247
- Sales unit
- pcs
- Article number
- 5303-104500
- Type designation
- 13DB25
- W (mm)
- 22.8
- L (mm)
- 11
- h1 (mm)
- 9.87
- Crimp geometries
- Dual
- Number of crimps
- 2
- mm² KR/KS, KRF/KSF
- 150
- Application
- Pipe cable lug and connectors
- Compression shape
- Hexagon
- Cross section, Min (mm²)
- 150
- Cross section, Max (mm²)
- 150
- Pieces per pack
- 1
- Net weight (kg)
- 0.44
- Height Pack (mm)
- 41
- Depth Pack (mm)
- 87
- Width Pack (mm)
- 68
- Cross section
- 150 mm²
- AWG-range
- 300
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 7393487026247
- SAP 1200077785
- Code 81934490
Product Documentation
Document preview: Elpress Crimping die set (5303-104500) — Specification sheet
