Product Description

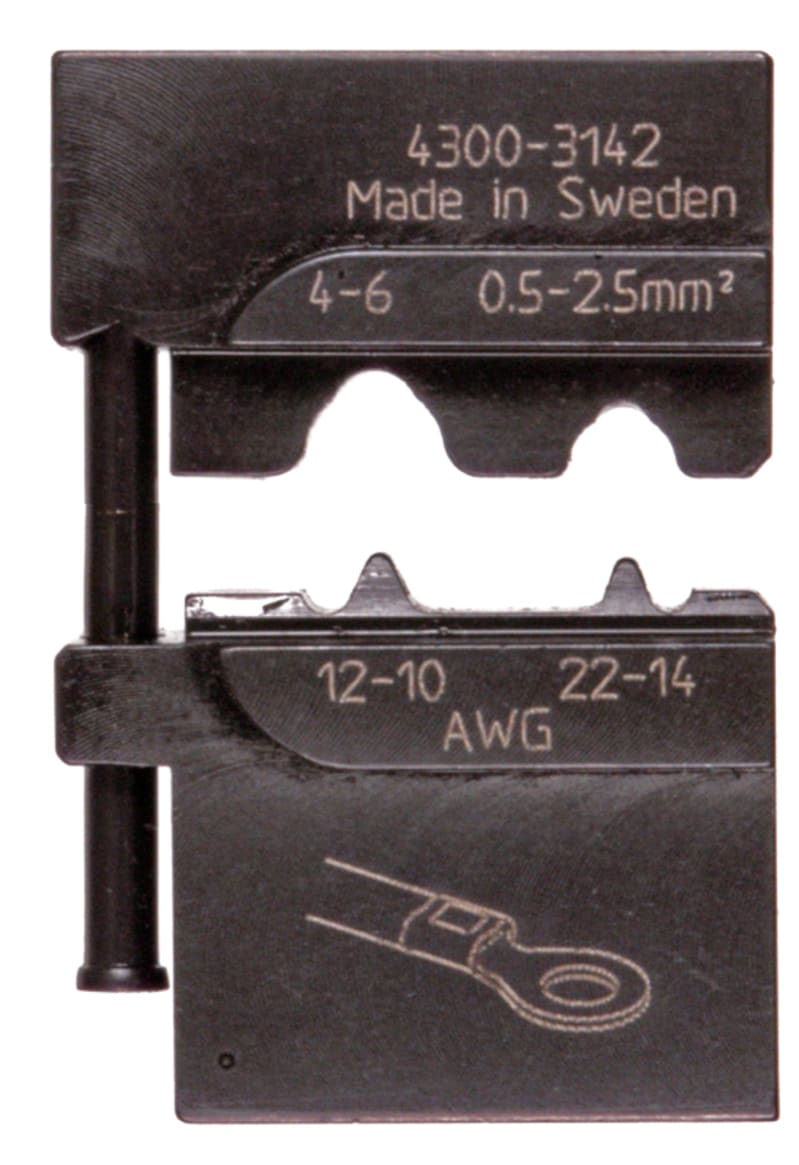

Elpress crimping die for uninsulated connectors. Part of the Elpress crimping tool system. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- OKB0560
- EAN / GTIN
- 7393487035010
- Sales unit
- pcs
- Article number
- 5119-314200
- Type designation
- OKB0560
- Crimp geometries
- Punch
- Application (connector type)
- Uninsulated terminals
- mm² Cu
- 0,5-6
- Application
- Not isolated cable connections
- Compression shape
- Other
- Cross section, Min (mm²)
- 0.5
- Cross section, Max (mm²)
- 6
- AWG-range, Min
- 20
- AWG-range, Max
- 9
- Pieces per pack
- 1
- Net weight (kg)
- 0.066
- Height Pack (mm)
- 115
- Depth Pack (mm)
- 25
- Width Pack (mm)
- 73
- Cross section
- 0.5–6 mm²
- AWG-range
- 9–20
- Country of origin
- Taiwan
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 7393487035010
- SAP 1000079142
- Code 8814352
