Product Description

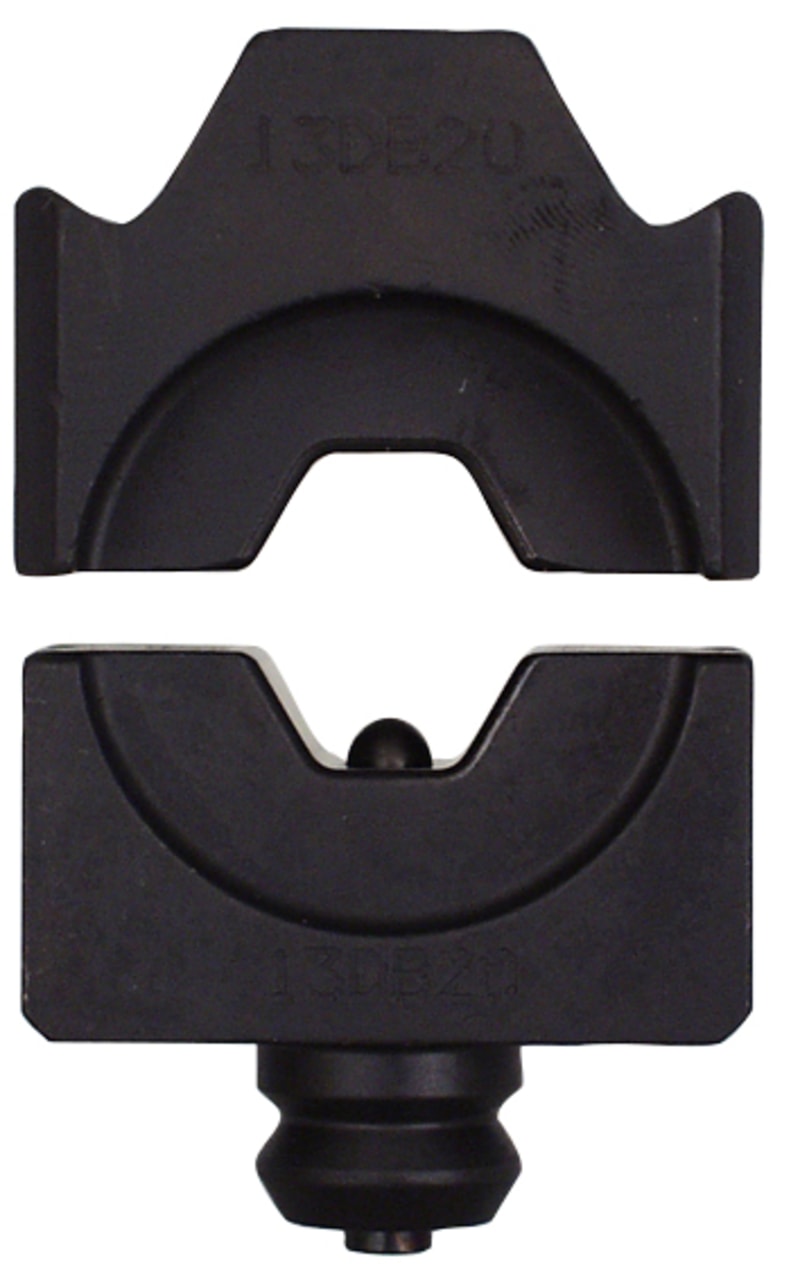

Elpress crimping die set. Part of the Elpress crimping tool system. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- 5303-103200
- EAN / GTIN
- 7393487026605
- Sales unit
- pcs
- Article number
- 5303-103200
- Type designation
- 13DB11
- W (mm)
- 10
- L (mm)
- 11
- h1 (mm)
- 4.33
- h2 (mm)
- 1.4
- Crimp geometries
- Dual
- Number of crimps
- 1
- mm² KR/KS, KRF/KSF
- 25
- Application
- Pipe cable lug and connectors
- Compression shape
- Hexagon
- Cross section, Min (mm²)
- 25
- Cross section, Max (mm²)
- 25
- Pieces per pack
- 1
- Net weight (kg)
- 0.462
- Height Pack (mm)
- 41
- Depth Pack (mm)
- 87
- Width Pack (mm)
- 68
- Cross section
- 25 mm²
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 7393487026605
- SAP 1200793671
- Code 83963341
Product Documentation
More from Elpress
Elpress
Elpress AS35 Aluminium Compression Through Connector 35 mm²
Elpress

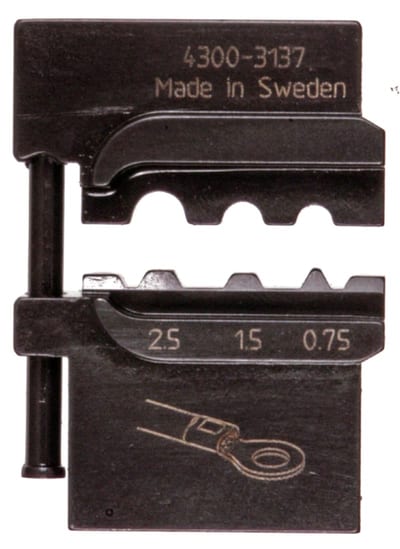

Elpress Crimping die for uninsulated connectors (OKB0725)
