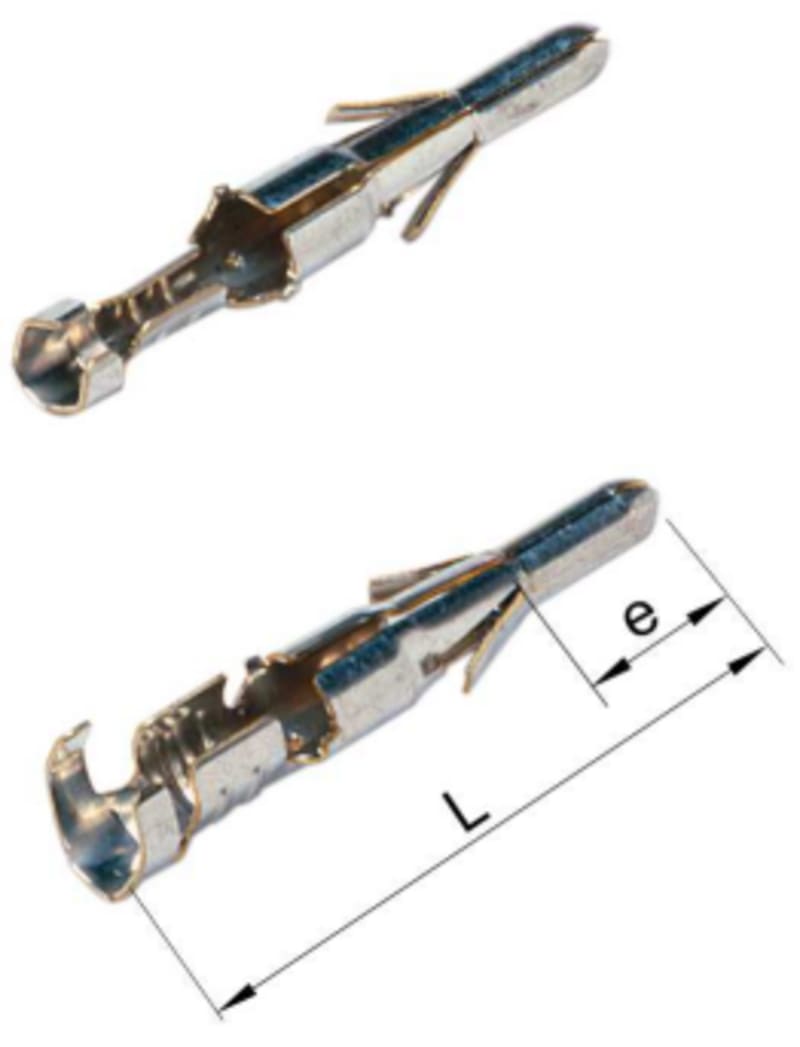

B1502HA (7193-500600)
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress 7193-500600 UNINSULATED ROUND PIN 0,5-1,5.
Technical Specifications
- Manufacturer part number (MPN)
- 7193-500600
- EAN / GTIN
- 7393487003699
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7193-500600
- Type designation
- B1502HA
- e (mm)
- 5.5
- L (mm)
- 21
- s (mm) - strip length
- 8
- For bullets ø (mm)
- 2
- AWG/MCM Cu
- 20 - 16 AWG
- mm² Cu
- 0,5-1,5
- Model
- Plug (male)
- Insulation
- Not isolated
- Colour insulation
- Other
- Plug dimensions
- Other
- Material
- Brass
- AWG-range, Min
- 20
- AWG-range, Max
- 16
- Nominal cross section, Min (mm²)
- 0.5
- Nominal cross section, Max (mm²)
- 1.5
- Material insulation
- Other
- Max. current (Imax) (A)
- 10
- Pieces per pack
- 100
- Net weight (kg)
- 0.0003
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Surface protection
- Tinned
- Nominal cross section
- 0.5–1.5 mm²
- With cam clamp
- No
- With tap spreader
- No
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487003699
- SAP 1200842741
- Code 84039086
Product Documentation
More from Elpress
Elpress
Elpress A4643G Insulated Flanged Fork (Spade) Terminal 4–6 mm² M4 (Yellow)
Elpress
Helisol Flatstift O,5-1,5
A1503FLSF8
Elpress
Elpress A6-14ET2 Twin Insulated End Ferrule 2 × 6 mm² 14 mm
Elpress
Elpress AK150-12 Aluminium Compression Cable Lug 150 mm² M12
Elpress

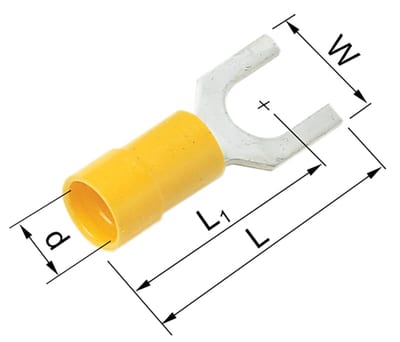

Elpress A4653G Insulated Flanged Fork (Spade) Terminal 4–6 mm² M5 (Yellow) 7278-272203
Elpress

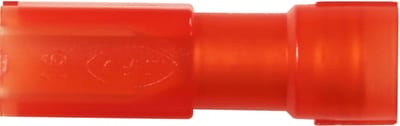

Elpress A1503FLSF5 Fully Insulated Receptacle, Rolled Type, 0.5-1.5 mm²
