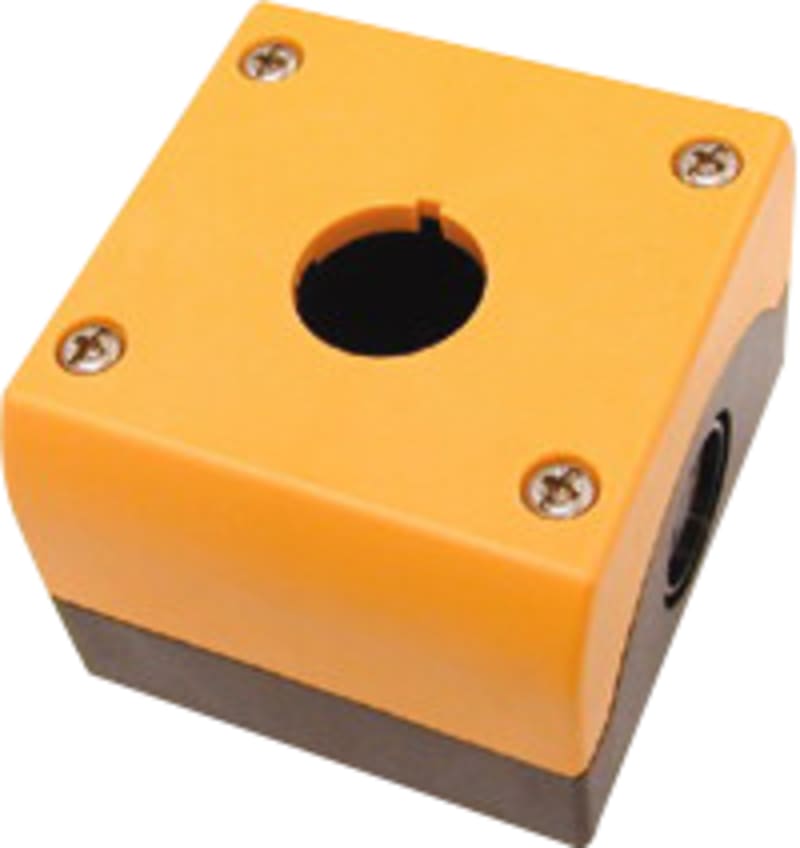

BOX 1 HOLE Yellowt Cover

Eaton M22-IY1 Box 1 Hole Yellow Cover.

Manufacturer part number (MPN)

M22-IY1

EAN / GTIN

4015082165369

Sales unit

pcs

Eaton catalogue number

216536

Depth

80 mm

Height

56 mm

Width

72 mm

Weight

0.136 kg

Certifications

CSA File No.: 012528; CE; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; UL; UL Category Control No.: NKCR; IEC/EN 60947-5; UL File No.: E29184; UL 508; CSA; CSA Class No.: 3211-03

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Connection to SmartWire-DT

No

Enclosure color

Yellow

Enclosure material

Plastic

Enclosure type

Surface mounting housing

Fitted with

High-grade steel screws

Knockouts

2 x M16 (cable entry knockouts at the rear); 1 x M20 (cable entry knockout at the top); 2 x M20/25 (cable entry knockout at the side, 1 x each side)

Number of command positions

1

Number of locations

1

RAL-number

1004

Degree of protection

NEMA 13; IP67/IP69K

Opening diameter

22.5 mm

Diameter openings

22 mm

Colour housing cover

Grey

Housing material

Plastic

Construction type housing

Surface mounted housing

Country of origin

Germany

HS Code

8538.10

• EAN 4015082165369
• SAP 1000041588
• Code 8802394
