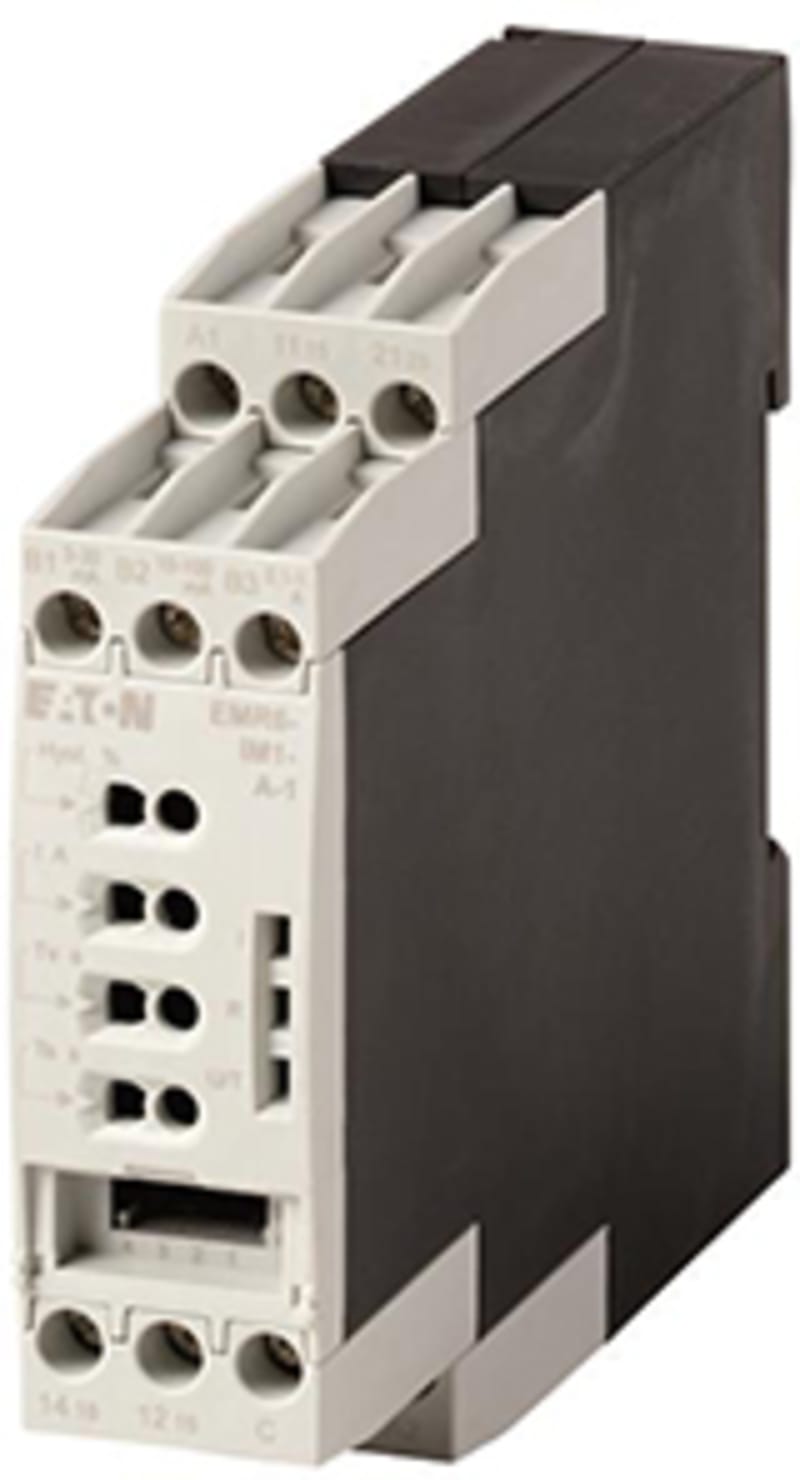

Current monitoring relay (EMR6-IM1-A-1)

Eaton Current monitoring relay (EMR6-IM1-A-1) is listed under Control & Automation / Power Supplies. Sales unit: pcs; Eaton catalogue number: 184780; Depth: 103.7 mm; Height: 85.6 mm; Width: 22.5 mm; Weight: 0.153 kg.

Manufacturer part number (MPN)

EMR6-IM1-A-1

EAN / GTIN

4015081788163

Sales unit

pcs

Eaton catalogue number

184780

Depth

103.7 mm

Height

85.6 mm

Width

22.5 mm

Weight

0.153 kg

Certifications

EAC; CSA-C22.2 No. 14; UL 508; RMRS; CCC; GL

Catalog Notes

Extension of the measurement range possible with current transformers

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30

Air discharge

Air/contact discharge, according to IEC/EN 61000-4-2, level 3

Burst impulse

According to IEC/EN 61000-4-4, level 3

Electromagnetic compatibility

According to IEC/EN 60947-6-2

Immunity to line-conducted interference

Level 3 (according to IEC/EN 61000-4-6)

Immunity to radiation

Level 3 (according to IEC/EN 61000-4-3)

Surge rating

According to IEC/EN 61000-4-5 Level 4

Current measurement - max

1 A

Current measurement - min

0.01 A

Electric connection type

Screw connection

Functions

Monitoring of single-phase DC and AC networks; DC-voltage under current; Single-phase under current possible; DC-voltage over current; Single-phase over current possible

Monitoring function

Overcurrent; Undercurrent

Voltage measurement - max

240 V

Voltage measurement - min

24 V

Degree of protection

Enclosure: IP50; Terminals: IP20

LED indicator

Status indication of energized output relay: Yellow LED; Other states depending on fault (see IL): Measured value; Status indication of Supply voltage: Green LED; Status indication of measured value: Red LED; Status indication of Supply voltage: Green, solid light

Lifespan, mechanical

30,000,000 Operations

Mounting position

As required

Overvoltage category

III

Pollution degree

3

Product category

EMR Measuring and monitoring relays

Rated impulse withstand voltage (Uimp)

4000 V AC

Shock resistance

Class 2

Type

Current monitoring relay

Voltage type

AC/DC

Hysteresis

3 - 30 %

Input current

Input B3-C: 0.1 - 1 A; Input B1-C: 0.003 - 0.03 A; Input B2-C: 0.01 - 0.1 A

Measuring cycle

80 ms

Temperature error

0.06 %/°C, Measuring circuits

Duty factor

100 %, Power supply

Power consumption

2.6 VA

Rated control supply voltage (Us) at AC

50 Hz - max

240 V

Rated control supply voltage (Us) at AC

50 Hz - min

24 V

Rated control supply voltage (Us) at AC

60 Hz - max

240 V

Rated control supply voltage (Us) at AC

60 Hz - min

24 V

Rated control supply voltage (Us) at DC - max

240 V

Rated control supply voltage (Us) at DC - min

24 V

Rated frequency - max

60 Hz

Rated frequency - min

50 Hz

Supply voltage

24 - 240 V AC, 50/60 Hz; 24 - 240 V DC

Voltage tolerance

0.85 x Uc; 1.1 x Uc

Lifespan, electrical

100,000 Operation (at 230 V, AC-12, 4 A)

Number of contacts (change-over contacts)

2

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

0

Rated operational current (Ie)

4 A at DC-12, 24 V; 4 A at AC-12, 230 V

Rated operational current (Ie) at AC-15, 220 V, 230 V

240 V

3 A

Rated operational current (Ie) at DC-13

24 V

2 A

Rated operational voltage (Ue) at AC - max

250 V

Short-circuit protection rating

Max. 10 A Fast/gL, Fuse, Relay output contacts

Connection type

Snap fixing, top-hat rail IEC/EN 60715

Screwdriver size

4 x 0.8 mm, Terminal screw

Terminal capacity (flexible with ferrule AWG)

2 x 18-16

Terminal capacity (flexible with ferrule)

2 x 0.5-1.5 mm²

Terminal capacity (solid AWG)

18 - 14

Terminal capacity (solid)

1 x 0.5-2.5 mm²

Tightening torque

Min. 0.6 Nm, Screw terminals; 0.8 Nm, Screw terminals

Delay time

Adjustable from 0.1 - 30 s

Response delay time; Switch-on delay

none = 0 or adjustable from 0.1 to 30 s

On-delay

0.1 - 30 ms

Timing cycle

0.06 %/°C, Time error within temperature range; 0.5 %, Time error within supply voltage; 0.5 % Error within supply voltage (Measuring circuits); 30 s, Reset delay/Off-delay time

Operating voltage AC 50 Hz

24–240 V

Operating voltage AC 60 Hz

24–240 V

Operating voltage DC

24–240 V

External power supply required

No

Supply voltage AC 50 Hz

24–240 V

Supply voltage AC 60 Hz

24–240 V

Supply voltage DC

24–240 V

Rated switch current

4 A

Response value amperage 1

0.1–1 A

Response value amperage 2

0.003–0.03 A

Voltage measuring range

24–240 V

Type of current

AC/DC

Type of electric connection

Screw connection

With detachable clamps

No

Single-phase under current possible

Yes

Three-phase under current possible

No

Single-phase overcurrent possible

Yes

Three-phase overcurrent possible

No

Single-phase hysteresis possible

No

Three-phase hysteresis possible

No

Contains function DC-voltage under current

Yes

Contains function DC-voltage overcurrent

Yes

Function DC-current hysteresis

No

Rated control supply voltage AC 50 Hz

24–240 V

Rated control supply voltage AC 60 Hz

24–240 V

Rated control supply voltage DC

24–240 V

Voltage type for actuating

AC/DC

Current measuring range

0.01–1 A

Min. adjustable delay-on energization time

0.1 s

Max. permitted delay-on energization time

30 s

Number of contacts as change-over contact

2

External current transformer

No

Country of origin

Germany

Min. adjustable off-delay time

0 s

HS Code

8536.49
