Eaton

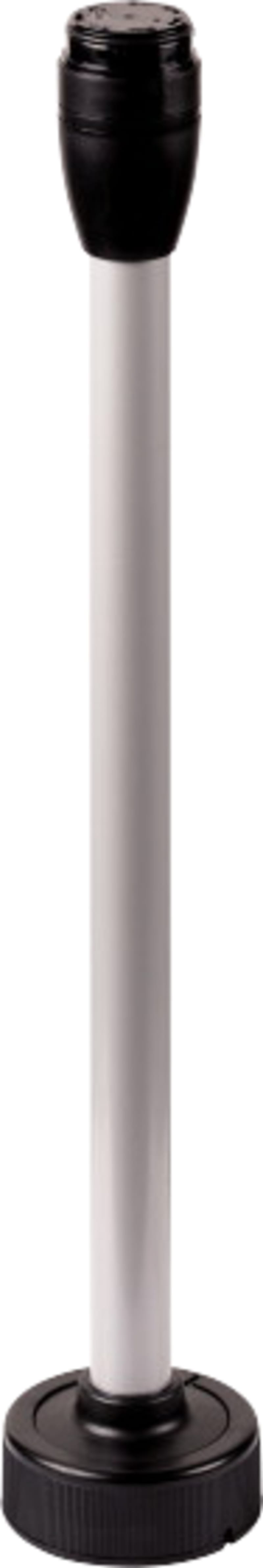

Base, Quick.Inst, 400mm Aluminium Tube (SL4-FMS-400)
Part numberSL4-FMS-400EAN / GTIN4015081678518HS code8531.90
Metals & Profiles
Bars, Plates & Profiles
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Base, Quick.Inst, 400mm Aluminium Tube (SL4-FMS-400) is listed under Metals & Profiles / Bars, Plates & Profiles. Sales unit: pcs; Eaton catalogue number: 171310; Depth: 81 mm; Height: 448 mm; Width: 81 mm; Weight: 0.272 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL4-FMS-400
- EAN / GTIN
- 4015081678518
- Sales unit
- pcs
- Eaton catalogue number
- 171310
- Depth
- 81 mm
- Height
- 448 mm
- Width
- 81 mm
- Weight
- 0.272 kg
- Certifications
- IEC/EN 60947-5-1; CSA Class No.: NKCR7; CSA-C22.2 No. 14-10; UL 508; UL File No.: E29184; IEC/EN 60529; UL; CSA-C22.2 No. 94-91; UL Category Control No.: NKCR; CE; Certified by UL for use in Canada; UL report applies to both US and Canada
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage
- 230/240 V AC ± 10 %; 24 V AC/DC ± 10 %; 110/120 V AC ± 10 %
- Color
- Other
- Fitted with
- Base adapter for slipping onto place (rapid mounting and wiring system); Cover
- Number of modules
- Max. 10 (with base for mounting on both sides); Max. 5; Max. 5 (with standard base)
- Connection to SmartWire-DT
- No
- Degree of protection
- NEMA 4; IP66; NEMA 13; NEMA 4X
- Mounting Method
- Bracket; Horizontal; Floor
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- Mechanical, According to IEC/EN 60068-2-27; 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
- Tube length
- 400 mm
- Type
- Base module
- Terminal capacity (AWG)
- 24 - 16
- Terminal capacity (flexible with ferrule and plastic collar)
- 0.25 - 0.75 mm²
- Terminal capacity (solid/flexible with ferrule)
- 0.25 - 1.5 mm²
- Terminal capacity (solid/flexible)
- 0.2 - 1.5 mm²
- Suitable for tube mounting
- No
- Suitable for angle mounting
- Yes
- Suitable for AS interface
- No
- Connection type auxiliary circuit
- Screw connection
- Suitable for M12 connector
- No
- Suitable for IO link
- No
- Suitable for floor mounting
- Yes
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.90
Cross References
- EAN 4015081678518
- SAP 1000489657
- Code 8936891
Product Documentation
Document preview: Base, Kvikk.Inst, 400mm Aluminium Tube (SL4-FMS-400) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton FAZT-B32/3 Miniature Circuit Breaker — 3P, Type B, 32 A, 25 kA
Eaton
Motor protection circuit breaker,PKZM0-10-SPI32
Eaton

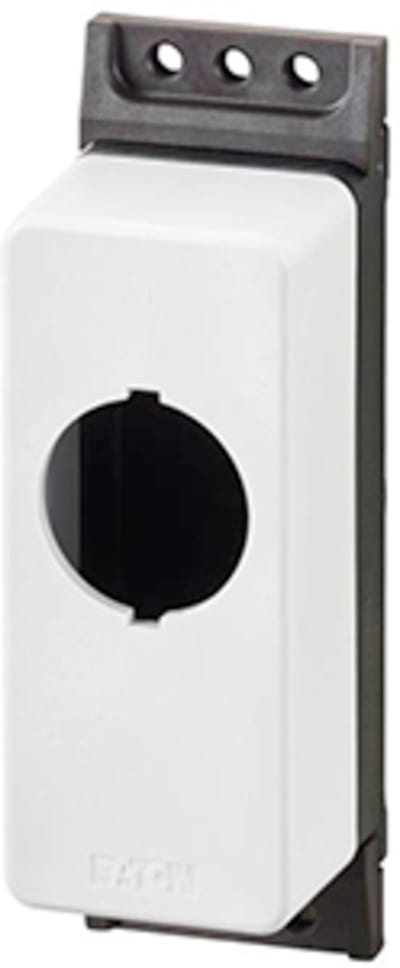

Enclosure M30-FI1
Eaton
Lock cylinder, SZ xE
NWS-SHE/SZ
Eaton

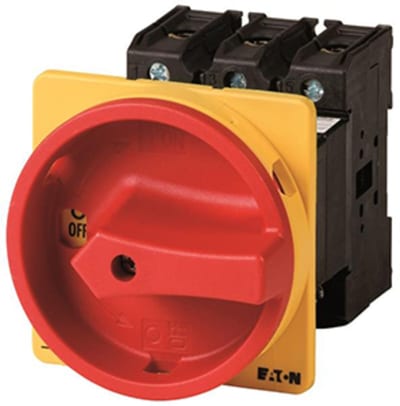

Safety Switch, 3P+N, 100A (P3-100/V/SVB/N)
Eaton

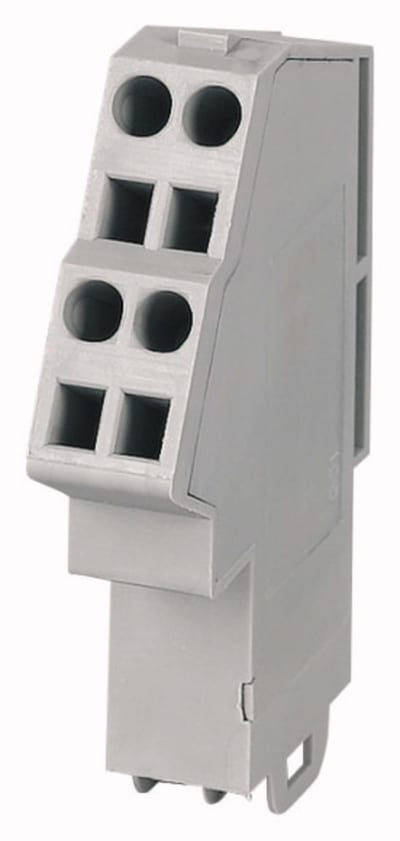

Eaton IZMX-SEC-KIT-W16-1
Eaton
Eaton FAZ-D32/1N Miniature Circuit Breaker — 1P+N, Type D, 32 A, 15 kA
Eaton

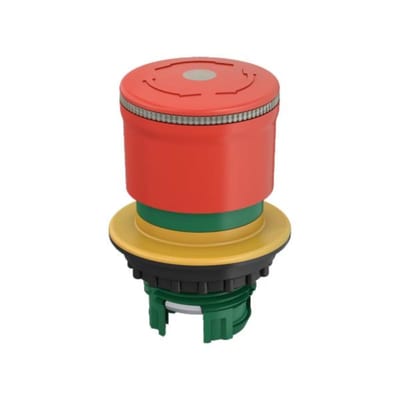

Emergency stop button M30-PVLT30
