Eaton
Emergency stop button M30-PVLT30
Part numberM30-PVLT30EAN / GTIN4015081942626HS code8538.90
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

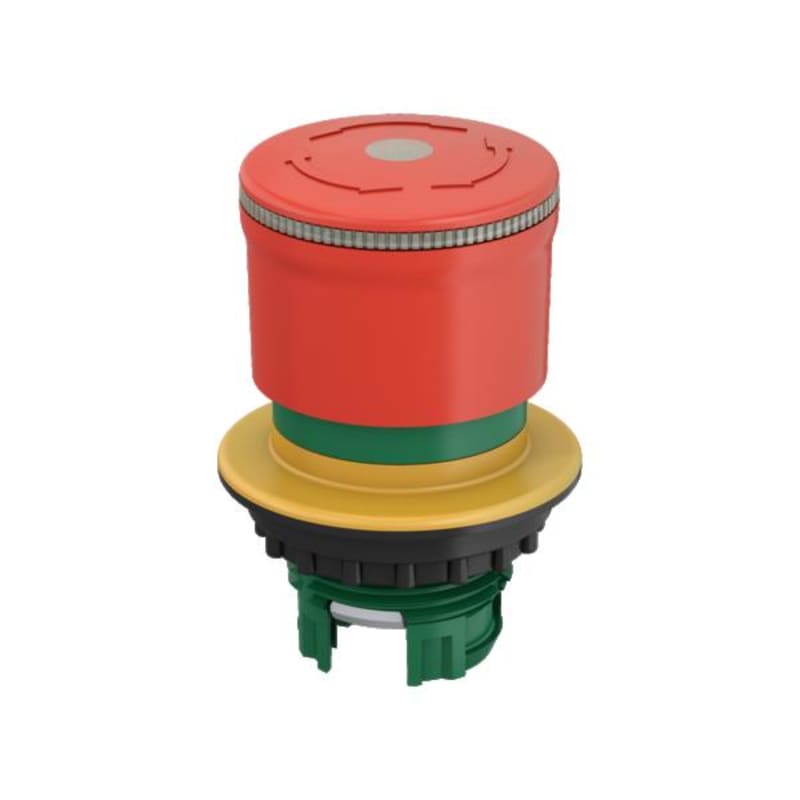

Eaton M30-PVLT30 Emergency stop button, RMQ-Titan, Soppform, Rotary function.
Technical Specifications
- Manufacturer part number (MPN)
- M30-PVLT30
- EAN / GTIN
- 4015081942626
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 197546
- Depth
- 30 mm
- Height
- 32 mm
- Width
- 30 mm
- Weight
- 0.03 kg
- Certifications
- CSA; EAC; CCC; CE; EN ISO 13850; EN 60947-5-1; EN 50581; Machines 2006/42/EG
- Actuating force
- 50 N
- Actuator color
- Red
- Actuator diameter
- 30 mm
- Actuator function
- Switching function latching; Turn-to-release
- Design
- Mushroom-shaped; Classical
- Illumination
- Illuminated with LED element
- Unlocking method
- Turn-release
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- No
- Base color
- Yellow
- Bezel color
- Other
- Bezel material
- Other
- Features
- Tamper-proof (according to ISO 13850, EN 418)
- Degree of protection
- NEMA 4X; IP66; IP69
- Lifespan, mechanical
- 60,000 Operations
- Mounting position
- As required
- Opening diameter
- 30.5 mm
- Operating frequency
- 600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: 35 mm
- Suitable for
- Emergency stop; Illumination
- Type
- Controlled stop pushbutton/emergency-stop button
- Hole diameter
- 30.5 mm
- Colour button
- Red
- Suitable for lighting
- Yes
- Spring-return
- No
- Diameter cap
- 30 mm
- Suitable for emergency stop
- Yes
- Type of button
- High
- With lighting
- No
- With front ring
- No
- Construction type lens
- Round
- Switching function latching
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081942626
- SAP 1200519933
- Code 82667660
Product Documentation
Document preview: Emergency stop button, — Specification Data Sheet (OEM)
