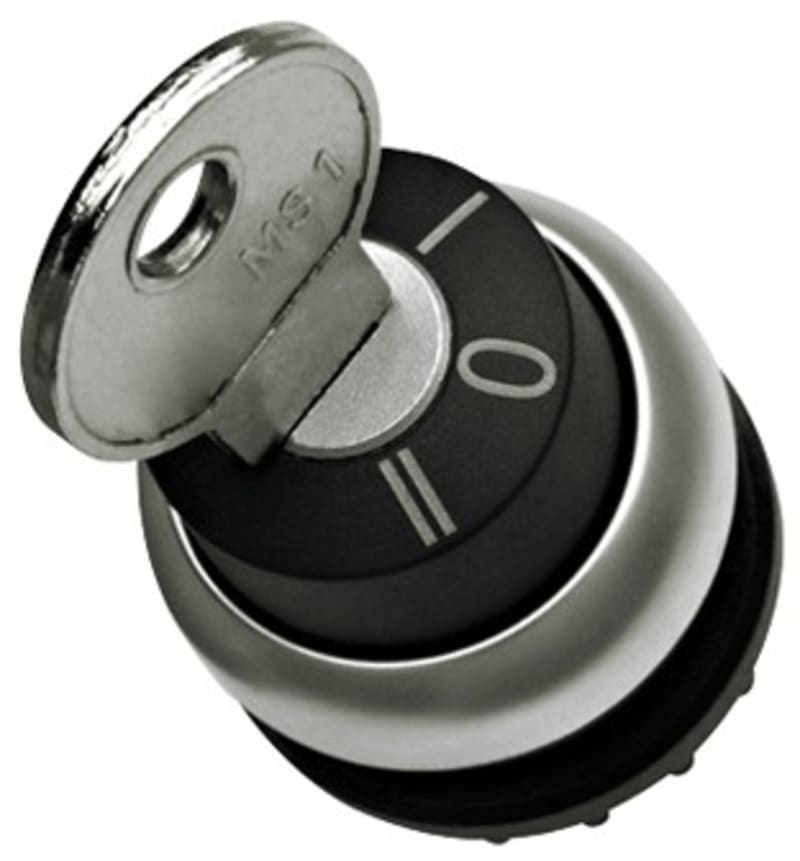

KEY Switch 1-0-2 Fixed Still

Eaton M22-WRS3 Key switch 1-0-2 Fixed Still.

Manufacturer part number (MPN)

M22-WRS3

EAN / GTIN

4015082169008

Sales unit

pcs

Package quantity

5 pcs

Eaton catalogue number

216900

Depth

70 mm

Height

30 mm

Width

30 mm

Weight

0.031 kg

Compliances

CE Marked

Certifications

EN 60947-5; CSA Std. C22.2 No. 14-05; CSA Std. C22.2 No. 94-91; IEC 60947-5; UL 508; VDE; CSA-C22.2 No. 14-05; CSA Class No.: 3211-03; UL Category Control No.: NKCR; UL; UL File No.: E29184; IEC/EN 60947; CSA-C22.2 No. 94-91; VDE 0660; CSA File No.: 012528; CSA; CE; IEC/EN 60947-5; DNV; GL; LR

Actuator color

Black

Actuator function

Maintained; Key withdrawable in position 2; Key withdrawable in position 0; Switching function latching; Key withdrawable in position 1

Actuator type

Key

Bezel color

Titanium

Bezel material

Plastic

Design

Key operated; Classical

Fitted with

Front ring; Plunger bridge for the middle contact

Functions

Stay-put/spring-return function, can be changed with coding parts M22-XC-Y

Indicator color

Other

Lens type

Round

Number of switch positions

3

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

Yes; With SWD-RMQ connections

Accessories

1 key included with supplied equipment.

Degree of protection

NEMA 4X, 13

Degree of protection (front side)

IP66

Lifespan, mechanical

100,000 Operations

Mounting position

As required

Opening diameter

22.5 mm

Operating frequency

100 Operations/h

Operating torque

0.5 Nm

Overvoltage category

III

Pollution degree

3

Product category

RMQ-Titan

Size

Front diameter: 29.7 mm

Switching angle

60 °

Type

Key-operated button

Hole diameter

22.5 mm

Suitable for lighting

No

Spring-return

No

Degree of protection (IP), front side

IP66

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Type of control element

Key

Colour control element

Black

Switching function latching

Yes

Country of origin

Germany

HS Code

8536.50

• EAN 4015082169008
• SAP 1000044692
• Code 8527349
