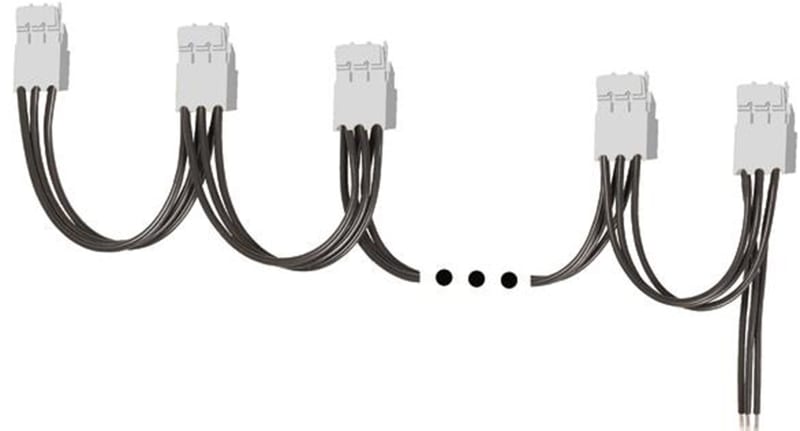

Eaton EMS2-XBR-Z-5 Three-Phase Current Connector with Plug, 5 Units
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton EMS2-XBR-Z-5 is a three-phase current connector with plug for the EMS2 electronic motor-starter family, allowing up to five devices to be linked. Rated 25 A at 2.5 mm² conductor cross-section with screw terminals and a -25 to 70 °C ambient range. Used with EMS2-D, EMS2-D-SWD and EMS-R starters.
Technical Specifications
- Manufacturer part number (MPN)
- EMS2-XBR-Z-5
- EAN / GTIN
- 4015080896166
- Sales unit
- pcs
- Eaton catalogue number
- 197175
- Depth
- 114.5 mm
- Height
- 114.5 mm
- Width
- 22.5 mm
- Weight
- 0.225 kg
- Certifications
- UL 60947-4-1; CSA-C22.2 No. 60947-4-1-14; CE marking; UL Category Control No.: NLDX
- NLDX7; UL File No.
- E338590; UL Listed; Certified by UL for use in Canada; UL report applies to both US and Canada
- Catalog Notes
- Conductor cross-section: 2.5 mm²
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Rated operational current for specified heat dissipation (In)
- 25 A
- Number of poles
- Three-pole
- Accessory/spare part type
- Connecting cable
- Connection type
- Screw terminals
- Product category
- Accessories Electronic motor starter
- Type
- Three-phase current connector with plug
- Used with
- 5 devices can be connected
- Type of accessory/spare part
- Connecting cable
- Accessory
- Yes
- Spare part
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015080896166
- SAP 1200527032
- Code 82936416
Product Documentation
More from Eaton
Eaton
Eaton FAZT-C20/4 Miniature Circuit Breaker — 4P, Type C, 20 A, 25 kA
Eaton
Current monitoring relay (EMR6-IM1-A-1)
Eaton
NH0 Switch-disconnector 3P160 BBL (XNH00-FCE-S160-BT1)
Eaton
Quartz dagsur 1 channel (TSQD1NO)
Eaton
Base, Quick.Inst, 400mm Aluminium Tube (SL4-FMS-400)
Eaton
Eaton FAZT-B32/3 Miniature Circuit Breaker — 3P, Type B, 32 A, 25 kA
Eaton
Motor protection circuit breaker,PKZM0-10-SPI32
Eaton
Enclosure M30-FI1
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy EMS2-XBR-Z-5?
- EMS2-XBR-Z-5 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is EMS2-XBR-Z-5.
- What is the HS code for EMS2-XBR-Z-5?
- The customs tariff (HS) code for EMS2-XBR-Z-5 is 8536.50.
- Who manufactures EMS2-XBR-Z-5?
- EMS2-XBR-Z-5 is a Eaton product in the Drives & Controllers range.
- Is a datasheet available for EMS2-XBR-Z-5?
- Yes — the EMS2-XBR-Z-5 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for EMS2-XBR-Z-5?
- The minimum order quantity is 1.
- Is EMS2-XBR-Z-5 available?
- Yes — EMS2-XBR-Z-5 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
