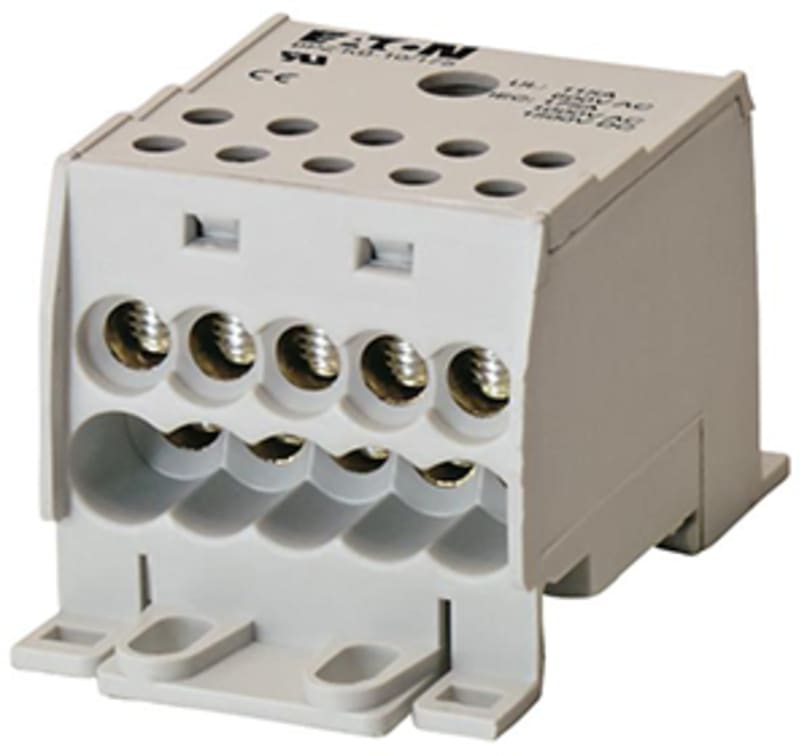

Terminal Block 1P. 175A 10 output
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Terminal Block 1P. 175A 10 output (part number BPZ-KB-10/175) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 102715; Depth: 43 mm; Height: 71 mm; Width: 45 mm.
Technical Specifications
- Manufacturer part number (MPN)
- BPZ-KB-10/175
- EAN / GTIN
- 4015081025756
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 102715
- Depth
- 43 mm
- Height
- 71 mm
- Width
- 45 mm
- Weight
- 0.23 kg
- Compliances
- RoHS conform
- Certifications
- IEC 60 947 -7 -1; UL 1059
- Comparative tracking index (CTI)
- 600 V
- Flame classification (UL 94)
- V-0
- Functions
- Additional equipment
- Special features
- Clicks on DIN-rail or on base plate. Save time on wiring. Save 80% on space used. Modular construction, 1-4 pole Systems can be built with several blocks. Material, hexagon socket set screw: Steel Zinc plated (Hexagon socket set screw, Surface finish)
- Amperage rating
- 175 A
- Number of poles
- Single-pole
- Heat deflection temperature
- 100 °C
- Rated operation current (Ie) Cu (CSA)
- 175 A
- Rated operation current (Ie) Cu (IEC)
- 175 A
- Rated operation current (Ie) Cu (UL)
- 175 A
- Rated peak withstand current
- 30 kA
- Rated short-time withstand current (Icw)
- 11 kA
- Voltage rating at AC Cu (CSA) - max
- 600 VAC
- Voltage rating at AC Cu (IEC) - max
- 1000 VAC
- Voltage rating at AC Cu (UL) - max
- 600 VAC
- Voltage rating at DC Cu (IEC) - max
- 1500 VDC
- Clamp material
- Plain; Brass
- Conductor cross section (solid, solid-strand) - max
- 70 mm²
- Conductor cross section (solid, solid-strand) - min
- 2.5 mm²
- Housing color
- Light gray (RAL 7035)
- Housing material
- PA66
- Mounting method
- Flush mounting; Floor standing distribution board; Surface mounting
- Mounting position
- Universal
- Number of clamp positions per pole
- 11
- Number of clamping units per pole
- 11
- Degree of protection
- IP20
- Torque rating
- 6 Nm - 10 Nm / 53.1 lbf - 88.5 lbf (incoming). 3 Nm - 4 Nm / 26.5 lbf - 35.4 lbf (outgoing)
- Conductor cross section solid (solid, stranded)
- 2.5–70 mm²
- Max. rated current
- 175 A
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081025756
- SAP 1200562662
- Code 82906092
Product Documentation
More from Eaton
Eaton
Eaton EMS2-XBR-Z-5 Three-Phase Current Connector with Plug, 5 Units
Eaton
Eaton FAZT-C20/4 Miniature Circuit Breaker — 4P, Type C, 20 A, 25 kA
Eaton

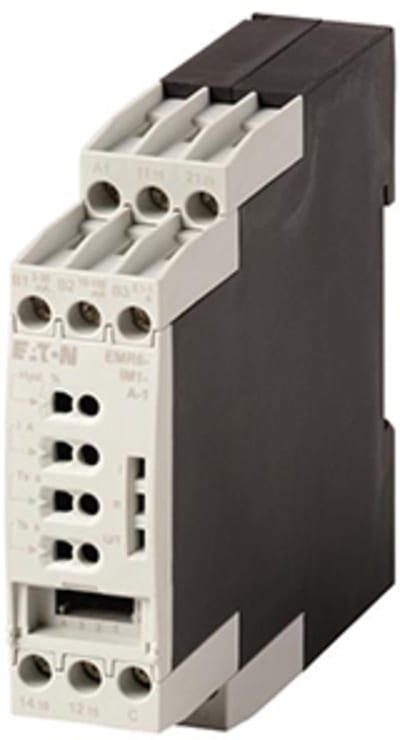

Current monitoring relay (EMR6-IM1-A-1)
Eaton

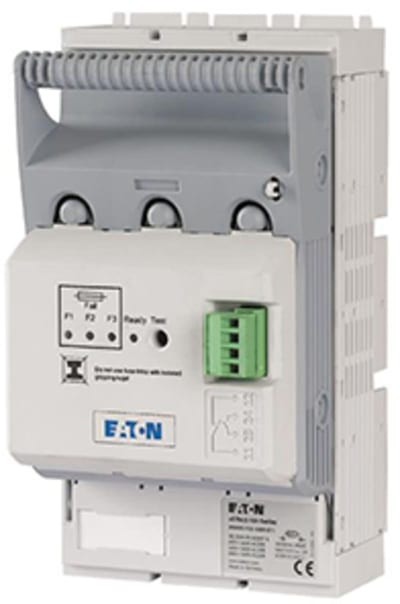

NH0 Switch-disconnector 3P160 BBL (XNH00-FCE-S160-BT1)
