Eaton T0-2-8241/XZ Reversing Switch 1-Pole 3-Step 20A
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton T0-2-8241/XZ is a rotary step switch with a zero position, configured as a 1-pole 3-step combination switch. It carries a rated uninterrupted current of 20 A at up to 690 V AC and uses a toggle-style actuator with four switch positions. The device suits control-panel duty for motor, heater or transformer step selection and is available for rear, front or intermediate mounting.
Technical Specifications
- Manufacturer part number (MPN)
- T0-2-8241/XZ
- EAN / GTIN
- 4015080117599
- Sales unit
- pcs
- Eaton catalogue number
- 011759
- Depth
- 58 mm
- Height
- 48 mm
- Width
- 48 mm
- Weight
- 0.088 kg
- Certifications
- CE
- Actuator type
- Toggle
- Number of switch positions
- 4
- Ambient operating temperature - max
- 50 °C
- Ambient operating temperature - min
- -25 °C
- Ambient operating temperature (enclosed) - max
- 40 °C
- Ambient operating temperature (enclosed) - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Control circuit reliability
- 1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)
- Number of contacts
- 3
- Rated operating voltage (Ue) at AC - max
- 690 V
- Rated uninterrupted current (Iu)
- 20 A
- Number of poles
- Single-pole
- Degree of protection (front side)
- IP00; NEMA Other
- Mounting method
- Rear mounting
- Mounting position
- As required
- Number of contact units
- 2
- Overvoltage category
- III
- Pollution degree
- 3
- Suitable for
- Ground mounting; Intermediate mounting; Front mounting
- Switching angle
- 45 °
- Type
- Control switch
- Short-circuit protection rating
- 20 A gG/gL, Fuse, Contacts
- Type of switch
- Level switch
- Max. rated operation voltage Ue AC
- 690 V
- Rated permanent current Iu
- 20 A
- With zero (off) position
- No
- With retraction in 0-position
- No
- Device construction
- Built-in device
- Suitable for floor mounting
- Yes
- Suitable for front mounting
- Yes
- Suitable for distribution board installation
- No
- Suitable for intermediate mounting
- Yes
- Complete device in housing
- No
- Front shield size
- 48x48 mm
- Degree of protection (IP), front side
- IP00
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015080117599
- SAP 1000049374
- Code 8532407
Product Documentation
More from Eaton
Eaton

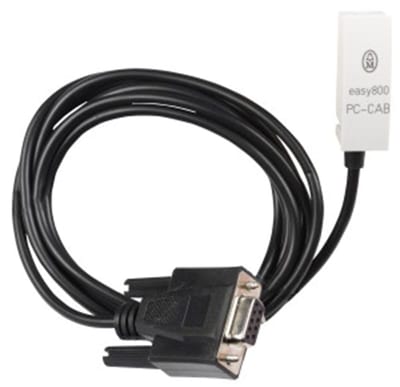

Eaton EASY800-USB-CAB
Eaton

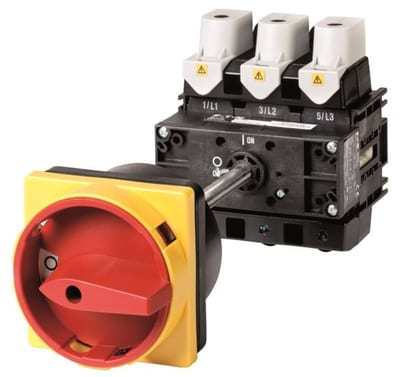

Safety Switch (P5-125/V/SVB)
Eaton

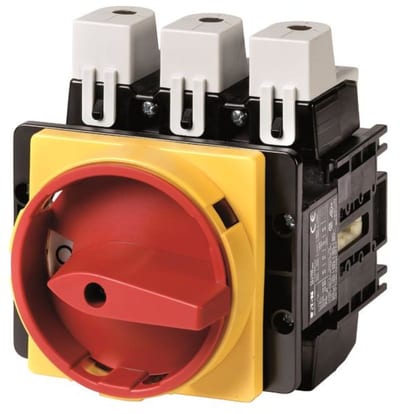

Safety Switch (P5-125/EA/SVB)
Eaton
Eaton FAZT-D16/1 Miniature Circuit Breaker — 1P, Type D, 16 A, 25 kA
Eaton

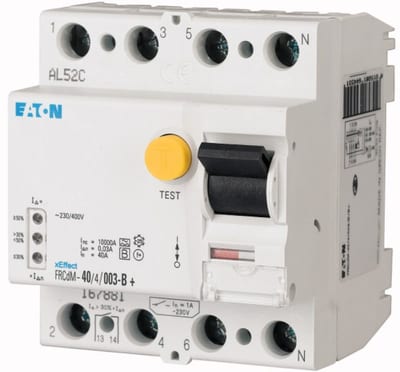

Eaton xEffect FRCdM Residual Current Circuit Breaker (RCCB) — Type B+, 4-Pole, 63 A, 300 mA, Selective
FRCDM-63/4/03-S/B+
Eaton

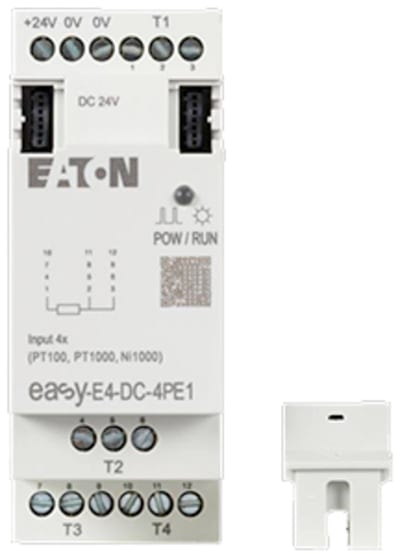

EASY-E4 In/O extension, PT100, 24VDC
EASY-E4-DC-4PE1
Eaton

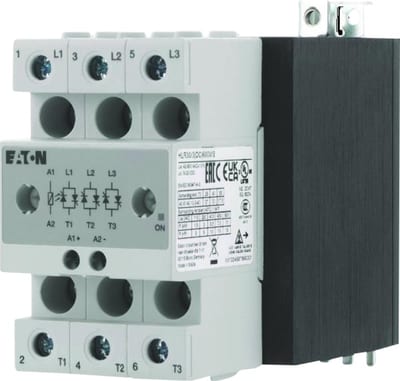

Solid-State Relay, 3-Pole, 30A, 600V
