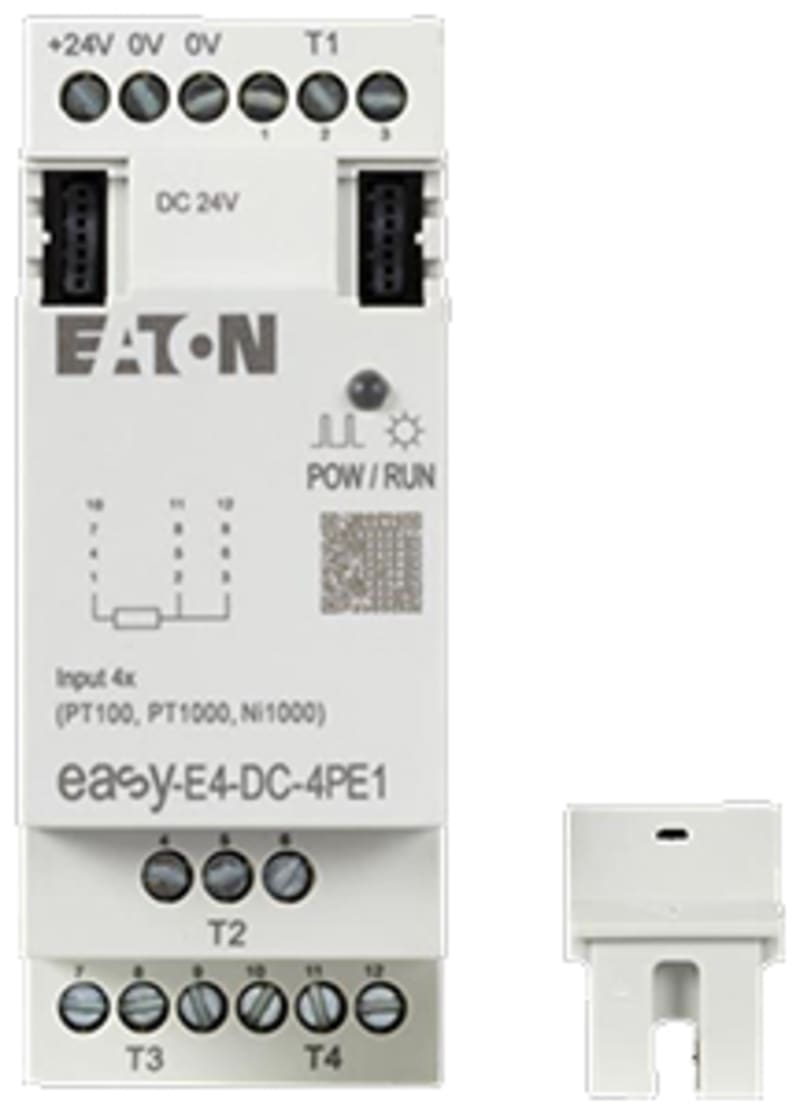

EASY-E4 In/O extension, PT100, 24VDC

Eaton EASY-E4 In/O extension, PT100, 24VDC (part number EASY-E4-DC-4PE1) is listed under Control & Automation / PLCs. Sales unit: pcs; Eaton catalogue number: 197224; Depth: 58 mm; Height: 90 mm; Width: 36 mm; Weight: 0.1 kg.

Manufacturer part number (MPN)

EASY-E4-DC-4PE1

EAN / GTIN

4015080892854

Sales unit

pcs

Eaton catalogue number

197224

Depth

58 mm

Height

90 mm

Width

36 mm

Weight

0.1 kg

Drop and topple

50 mm Drop height, Drop to IEC/EN 60068-2-31

Height of fall (IEC/EN 60068-2-32) - max

0.3 m

Mounting position

Horizontal; Vertical

Shock resistance

15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts

Vibration resistance

57 - 150 Hz, 2 g constant acceleration; 10 - 57 Hz, 0.15 mm constant amplitude; According to IEC/EN 60068-2-6

Cable length

≤ 30 m, unscreened, Analog inputs temperature resistance Pt100 or Ni1000 sensors

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Environmental conditions

Condensation: prevent with appropriate measures; Clearance in air and creepage distances according to EN 50178, EN 61010-2-201, UL61010-2-201, CSA-C22.2 NO. 61010-2-201

Relative humidity

5 - 95 % (IEC 60068-2-30, IEC 60068-2-78)

Connection type

Screw terminal

Static heat dissipation, non-current-dependent Pvs

1 W

Heat dissipation

3.4 W (at 24 V DC)

Inrush current

12.5 A (for 6 ms)

Power consumption

1 W

Power loss

1 W

Rated operational voltage

24 V DC (-15 %/+ 20 % - power supply); 20.4 - 28.8 V DC

Supply voltage at DC - max

28.8 VDC

Supply voltage at DC - min

20.4 VDC

Air discharge

8 kV

Burst impulse

2 kV, Signal cable; According to IEC/EN 61000-4-4; 2 kV, Supply cable

Contact discharge

6 kV

Electromagnetic fields

10 V/m at 0.8 - 1.0 GHz (according to IEC EN 61000-4-3); 1 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3); 3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)

Immunity to line-conducted interference

10 V (according to IEC/EN 61000-4-6)

Radio interference class

Class B (EN 61000-6-3)

Surge rating

According to IEC/EN 61000-4-5, power pulses (Surge), EMC; 0.5 kV, Supply cables, symmetrical, EASY…DC, power pulses (Surge), EMC; 1 kV, Supply cables, asymmetrical, power pulses (Surge), EMC

Voltage dips

20 ms; ≤ 10 ms, Bridging voltage dips

Features

Additional measurement aids: Filtering (software), smoothing of analog input signal (PT1 behavior), only with set sampling time, selectable per sensor: yes; Expandable; Expansion device; Measuring principle: Two or three wire per sensor, selectable by connection of sensor

Functions

Card diagnostic; Diagnostics below lower measurement range

Degree of protection

IP20

Insulation resistance

According to EN 50178, EN 61010-2-201, UL61010-2-201, CSA-C22.2 NO. 61010-2-201

Mounting method

Rail mounting possible; Top-hat rail fixing (according to IEC/EN 60715, 35 mm); Wall mounting/direct mounting; Screw fixing using fixing brackets ZB4-101-GF1 (accessories); Front build in possible

Overvoltage category

III

Pollution degree

2

Product category

Control relays easyE4

Protocol

TCP/IP; MODBUS

Residual ripple

≤ 5 %

Resolution

12 Bit (0- 4095, digital, scaling per sensor)

Software

EASYSOFT-SWLIC/easySoft

Type

easyE4 extension

Voltage type

DC

Input

Input type resistance sensor: Platinum sensor Pt100 (according to DIN EN 60751

IEC 751); Input type resistance sensor

Nickel sensor Ni1000 (according to DIN 43760)

Input current

40 mA

Number of inputs (analog)

4

Number of inputs (digital)

0

Number of outputs (analog)

0

Number of outputs (digital)

0

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Between Analog inputs PT100 or Ni1000 and Power supply: no; Between Analog inputs PT100 or Ni1000 and expansion units: yes; Between Analog inputs PT100 or Ni1000 and Inputs: no

Protection against polarity reversal

Yes, for supply voltage (Siemens MPI optional)

Short-circuit protection

≥ 1A (T), Fuse, Power supply

Screwdriver size

3.5 x 0.8 mm, Terminal screw

Terminal capacity

0.2 - 2.5 mm² (22 - 12 AWG), flexible with ferrule; 0.2 - 4 mm² (AWG 22 - 12), solid

Tightening torque

0.6 Nm, Screw terminals

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

Yes

Certified for UL hazardous location group A (acetylene)

Yes

Certified for UL hazardous location group B (hydrogen)

Yes

Certified for UL hazardous location group C (ethylene)

Yes

Certified for UL hazardous location group D (propane)

Yes

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

Yes

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

20.4–28.8 V

Switching current

0.5 A

Number of analogue inputs

4

With relay output

Yes

Number of HW-interfaces other

2

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Redundancy

No

With display

No

Basic device

No

Expandable

Yes

Expansion device

Yes

With time switch clock

No

Suitable for rail mounting

Yes

Wall mounting/direct mounting

Yes

HS Code

8537.10
