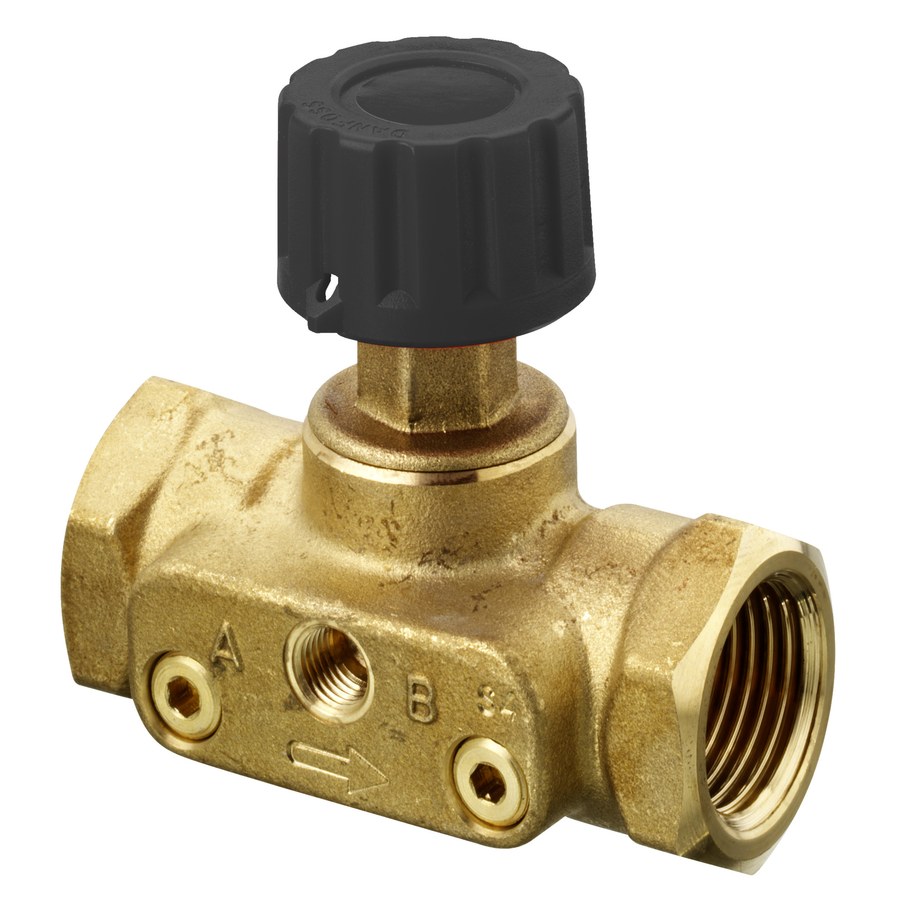

Danfoss USV-S DN 25 PN 16 manual static balancing valve, internal thread

Danfoss USV-S DN 25 PN 16 — manual (static) balancing valve for the risers and branches of hydronic heating and cooling systems; the compact combined presetting and shut-off balancing valve (operating elements and connections within a 90° arc). Presetting fixes the branch flow so design flow is distributed correctly across the network. Kvs 4 m³/h. Maximum differential pressure 150 kPa. Media temperature -20 °C to 120 °C. internal thread connection (Internal thread). Brass body, PN 16. OEM designation "USV-S DN 25, internal thread, adjustment valve". OEM P/N 003Z2233. EAN 5710104082820. Technical data quoted verbatim from store.danfoss.com (code 003Z2233).

Code number

003Z2233

Type

USV-S

Product group

Manual balancing

Description

USV-S DN 25, internal thread, adjustment valve

Valve size

DN 25

Connection

Internal thread

Valve body material

Brass

Kvs value

4 m³/h

Pressure class

PN 16

Max. differential pressure

150 kPa

Media temperature range

-20 °C to 120 °C

Setting scale

Yes

Shut-off function

Yes

Drain function

No

Flow limitation

Yes

Contains batteries

No

EU RoHS compliance

Out of scope

China RoHS compliance

Out of scope

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Net weight

0.635 kg

Gross weight

0.678 kg

Volume

1.069 L

EAN

5710104082820

HS code

8481.80

Size / Series

USV-S

Material

Valve body Brass

Pressure Rating

PN 16

Temperature Range

-20 °C to 120 °C

HS Code

8481.80
