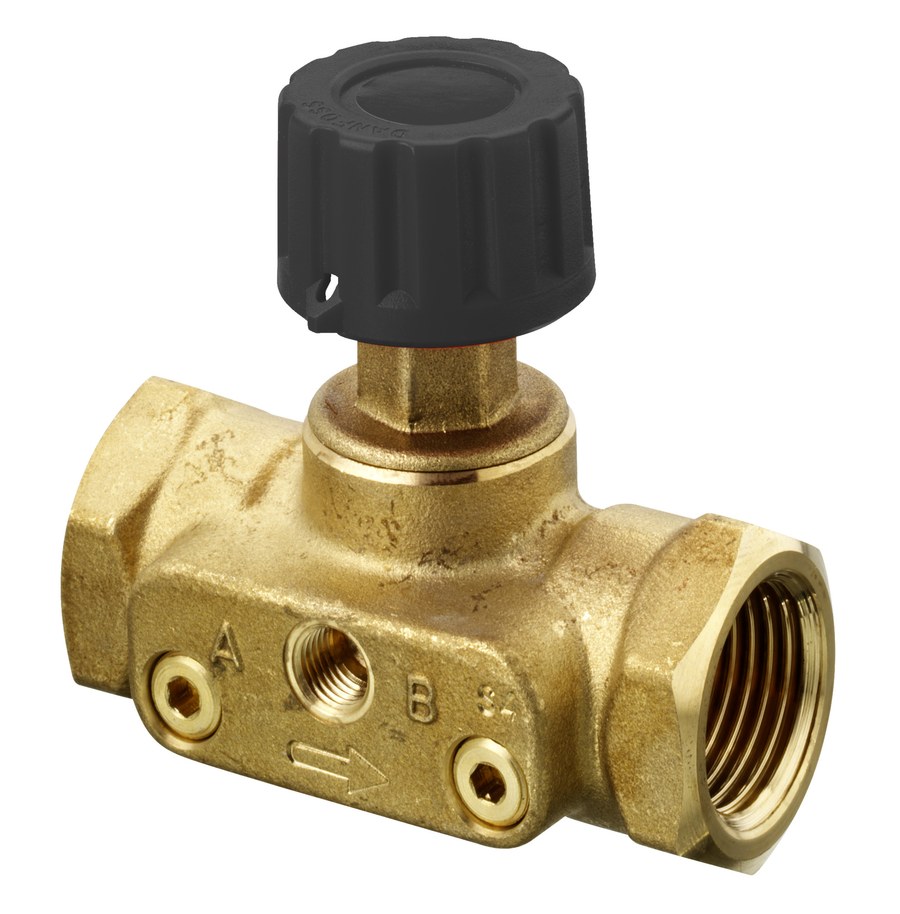

Danfoss USV-S DN 40 PN 16 manual static balancing valve, internal thread
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss USV-S DN 40 PN 16 — manual (static) balancing valve for the risers and branches of hydronic heating and cooling systems; the compact combined presetting and shut-off balancing valve (operating elements and connections within a 90° arc). Presetting fixes the branch flow so design flow is distributed correctly across the network. Kvs 10 m³/h. Maximum differential pressure 150 kPa. Media temperature -20 °C to 120 °C. internal thread connection (Internal thread). Brass body, PN 16. OEM designation "USV-S, DN 40, Internal thread". OEM P/N 003Z2235. EAN 5710104082844. Technical data quoted verbatim from store.danfoss.com (code 003Z2235).
Technical Specifications
- Code number
- 003Z2235
- Type
- USV-S
- Product group
- Manual balancing
- Description
- USV-S, DN 40, Internal thread
- Valve size
- DN 40
- Connection
- Internal thread
- Valve body material
- Brass
- Kvs value
- 10 m³/h
- Pressure class
- PN 16
- Max. differential pressure
- 150 kPa
- Media temperature range
- -20 °C to 120 °C
- Setting scale
- Yes
- Shut-off function
- Yes
- Drain function
- No
- Flow limitation
- Yes
- Contains batteries
- No
- EU RoHS compliance
- Out of scope
- China RoHS compliance
- Out of scope
- Net weight
- 1.196 kg
- Gross weight
- 1.279 kg
- Volume
- 2.239 L
- EAN
- 5710104082844
- HS code
- 8481.80
Standards & Compliance
- Size / Series
- USV-S
- Material
- Valve body Brass
- Pressure Rating
- PN 16
- Temperature Range
- -20 °C to 120 °C
- HS Code
- 8481.80
Compatibility & Fitment
USV-S is a compact single-valve solution combining presetting and shut-off — one per branch. Select by pipe size (DN 40) and pressure class (PN 16); use the Kvs with the branch design flow to set the presetting. Confirm code and connection against the datasheet before ordering.
