Danfoss PV controller upgrade part DN 20 for USV-M balancing valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss PV controller upgrade part DN 20 — converts an installed USV-M manual measuring valve into a differential-pressure (PV) controller for automatic hydronic balancing, without replacing the valve body. Included impulse tube 1,5 m and threaded connector. OEM designation "PV controller upgrade part DN 20". OEM P/N 003Z2157. EAN 5702420082585. Technical data quoted verbatim from store.danfoss.com (code 003Z2157).
Technical Specifications
- Code number
- 003Z2157
- Type
- Automatic balancing accessories
- Product group
- Automatic balancing
- Description
- PV controller upgrade part DN 20
- Connection to valve
- DN 20
- Usage
- USV-M
- Comments
- Included impulse tube 1,5 m and threaded connector
- Contains batteries
- No
- Net weight
- 0.8 Kilogram
- Gross weight
- 0.82 Kilogram
- Volume
- 1.385 Liter
- EAN
- 5702420082585
- HS code
- 8481.90
- Package depth [mm]
- 145 mm
- Package height [mm]
- 91 mm
- Package width [mm]
- 105 mm
- REACH Candidate List substances
- No
Standards & Compliance
- Size / Series
- PV upgrade part
- Pressure Rating
- PN 16
- HS Code
- 8481.90
Compatibility & Fitment
Match the upgrade part to the connection size (DN 20) of the installed USV-M valve. Included impulse tube 1,5 m and threaded connector. Fits the USV-M measuring valve to add differential-pressure control on the branch. Confirm the host valve DN before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss PV controller upgrade part DN 25 for USV-M balancing valve
003Z2158
Danfoss
Danfoss PV controller upgrade part DN 32-40 for USV-M balancing valve
003Z2159
Danfoss
Danfoss measuring orifice DN 50 PN 25 for hydronic balancing
003Z2260
Danfoss
Danfoss measuring orifice DN 65 PN 25 for hydronic balancing
003Z2261
Danfoss
Danfoss measuring orifice DN 80 PN 25 for hydronic balancing
003Z2262
Danfoss
Danfoss measuring orifice DN 100 PN 25 for hydronic balancing
003Z2277
Danfoss
Danfoss measuring orifice DN 125 PN 25 for hydronic balancing
003Z2278
Danfoss

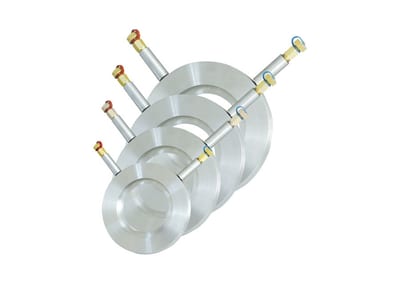

Danfoss measuring orifice DN 150 PN 25 for hydronic balancing
