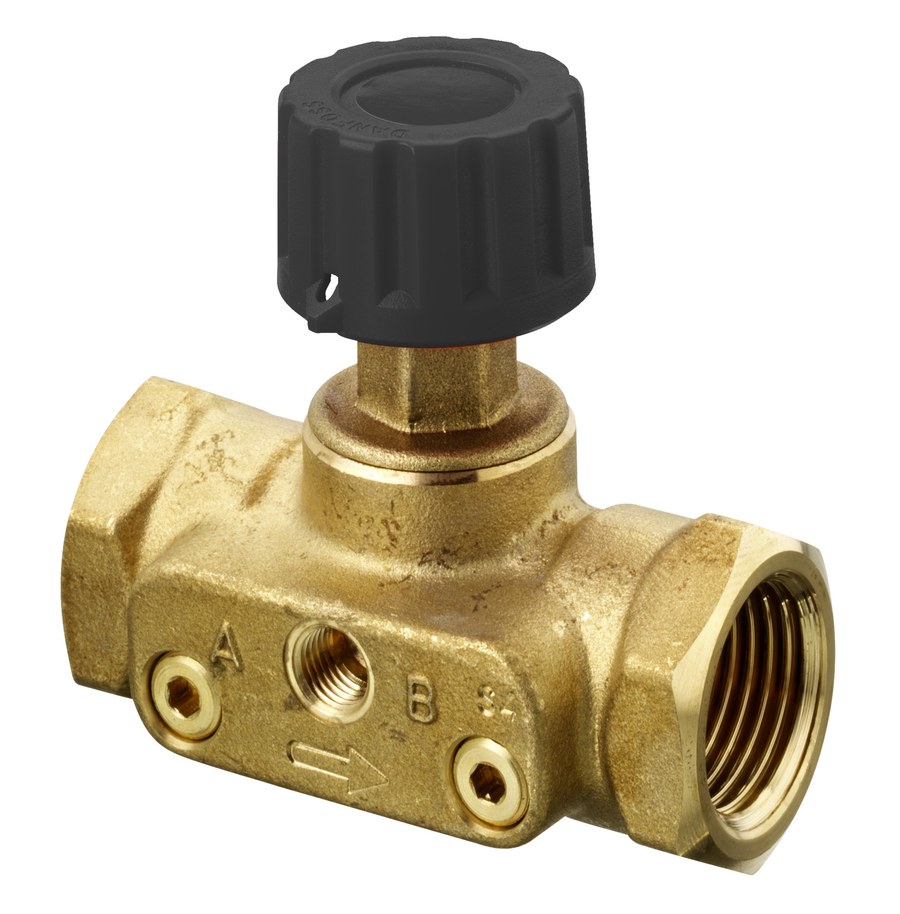

Danfoss USV-S DN 50 PN 16 manual static balancing valve, internal thread
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss USV-S DN 50 PN 16 — manual (static) balancing valve for the risers and branches of hydronic heating and cooling systems; the compact combined presetting and shut-off balancing valve (operating elements and connections within a 90° arc). Presetting fixes the branch flow so design flow is distributed correctly across the network. Kvs 16 m³/h. Maximum differential pressure 150 kPa. Media temperature -20 °C to 120 °C. internal thread connection (Internal thread). Brass body, PN 16. OEM designation "USV-S DN 50, internal thread, adjustment valve". OEM P/N 003Z2236. EAN 5710104082851. Technical data quoted verbatim from store.danfoss.com (code 003Z2236).
Technical Specifications
- Code number
- 003Z2236
- Type
- USV-S
- Product group
- Manual balancing
- Description
- USV-S DN 50, internal thread, adjustment valve
- Valve size
- DN 50
- Connection
- Internal thread
- Valve body material
- Brass
- Kvs value
- 16 m³/h
- Pressure class
- PN 16
- Max. differential pressure
- 150 kPa
- Media temperature range
- -20 °C to 120 °C
- Setting scale
- Yes
- Shut-off function
- Yes
- Drain function
- No
- Flow limitation
- Yes
- Contains batteries
- No
- EU RoHS compliance
- Out of scope
- China RoHS compliance
- Out of scope
- Net weight
- 1.99 kg
- Gross weight
- 2.063 kg
- Volume
- 2.484 L
- EAN
- 5710104082851
- HS code
- 8481.80
Standards & Compliance
- Size / Series
- USV-S
- Material
- Valve body Brass
- Pressure Rating
- PN 16
- Temperature Range
- -20 °C to 120 °C
- HS Code
- 8481.80
Compatibility & Fitment
USV-S is a compact single-valve solution combining presetting and shut-off — one per branch. Select by pipe size (DN 50) and pressure class (PN 16); use the Kvs with the branch design flow to set the presetting. Confirm code and connection against the datasheet before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss PV controller upgrade part DN 15 for USV-M balancing valve
003Z2156
Danfoss
Danfoss PV controller upgrade part DN 20 for USV-M balancing valve
003Z2157
Danfoss
Danfoss PV controller upgrade part DN 25 for USV-M balancing valve
003Z2158
Danfoss
Danfoss PV controller upgrade part DN 32-40 for USV-M balancing valve
003Z2159
Danfoss
Danfoss measuring orifice DN 50 PN 25 for hydronic balancing
003Z2260
Danfoss
Danfoss measuring orifice DN 65 PN 25 for hydronic balancing
003Z2261
Danfoss
Danfoss measuring orifice DN 80 PN 25 for hydronic balancing
003Z2262
Danfoss

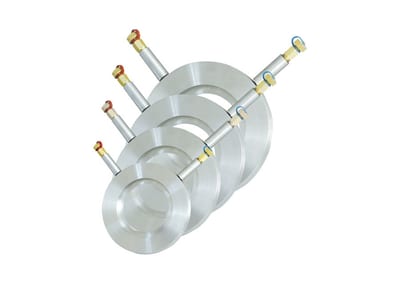

Danfoss measuring orifice DN 100 PN 25 for hydronic balancing
