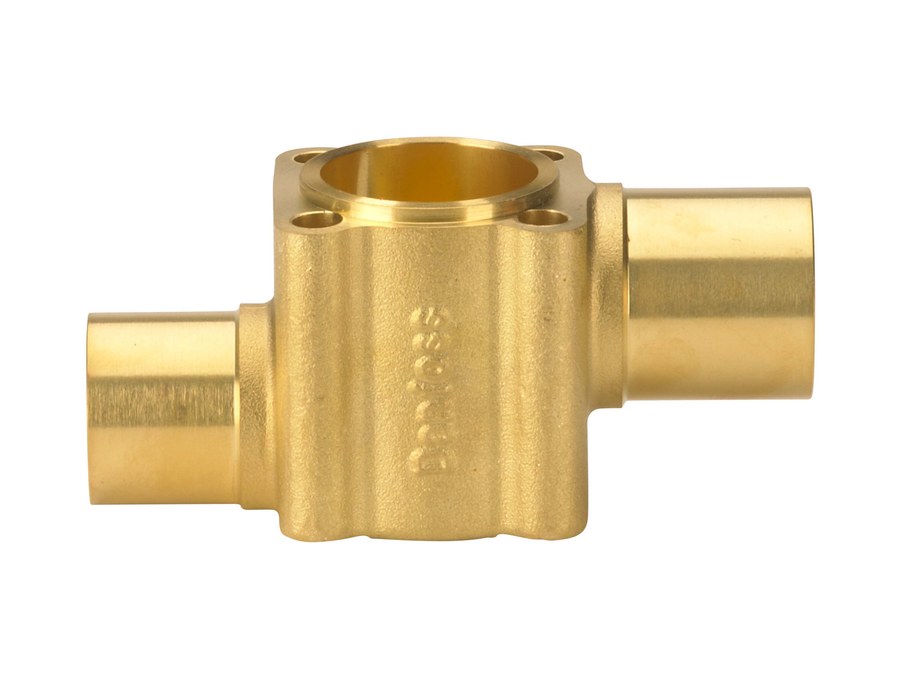

Danfoss TEH valve body for TE 12 / TE 20 / TQ 12 / TQ 20 thermostatic expansion valve, Solder ODF 7/8 in × Solder ODM 1 1/8 in, straightway
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss TEH exchangeable valve body for thermostatic expansion valves in the TE 12 / TE 20 / TQ 12 / TQ 20 parts program. Straightway, single-flow. Inlet Solder ODF 7/8 in, outlet Solder ODM 1 1/8 in. Brass body and connections. Supplied with screws and washers; embossed 1-way flow arrow. Combine with the matching TE power element and orifice assembly for a complete valve.
Technical Specifications
- Type
- TEH valve body (exchangeable)
- Used for
- TE 12 / TE 20 / TQ 12 / TQ 20
- Direction
- Straightway
- Flow direction
- Single-flow
- Inlet connection
- Solder ODF 7/8 in
- Outlet connection
- Solder ODM 1 1/8 in
- Body / connection material
- Brass
- Included
- Screws and washers
- EAN
- 5702428321228
- Code number
- 067B4021
- Product group
- Expansion valves
- Body material
- Brass
- Connection material
- Brass
- Inlet connection type
- Solder, ODF
- Inlet size
- 7/8 in
- Outlet connection type
- Solder, ODM
- Outlet size
- 1 1/8 in
- Approval
- LLC CDC TYSK
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.52 kg
- Balanced port [Yes/No]
- No
- Flow direction indicator
- Embossed 1-way arrow
- Parts included
- Screws; Washers
- EU RoHS compliance
- Out of scope
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 / TE 55 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICV 32 multifunction valve body, Butt weld 1 1/2 in (40 mm), EN 10220, steel
027H3125
Danfoss
Danfoss ICV 32 multifunction valve body, Butt weld 1 1/2 in (40 mm), ASME B36.10M, steel
027H3126
Danfoss

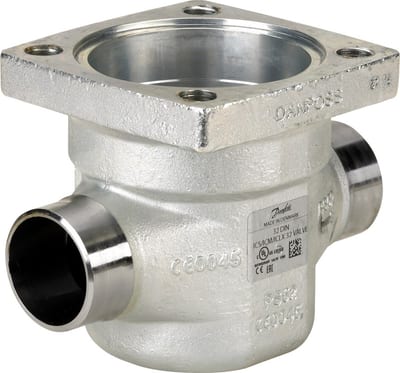

Danfoss ICV 32 multifunction valve body, Soldering 1 5/8 in (42 mm), EN 1254-1, steel
027H3128
Danfoss

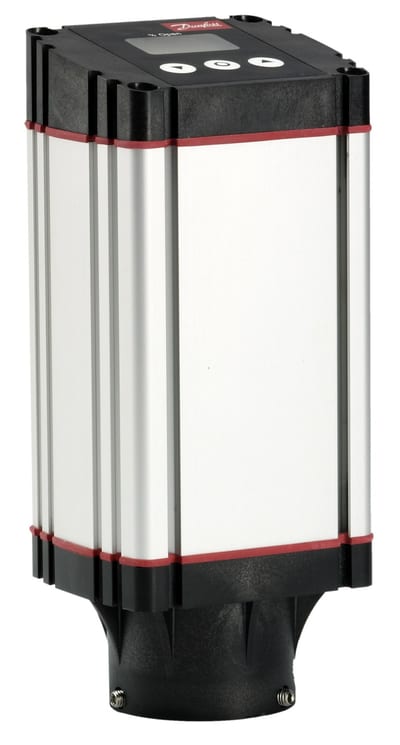

Danfoss ICAD 600A electric actuator for ICM motor-operated valves 027H9075
Danfoss

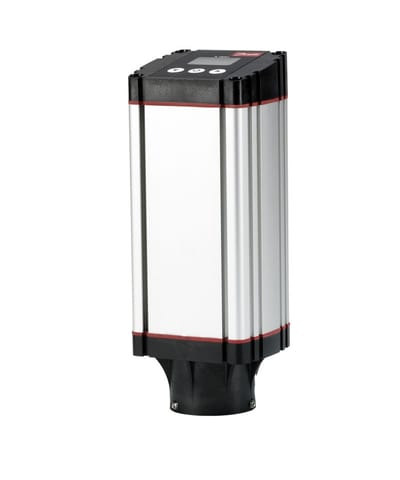

Danfoss ICAD 1200A electric actuator for ICM motor-operated valves 027H9077
Danfoss

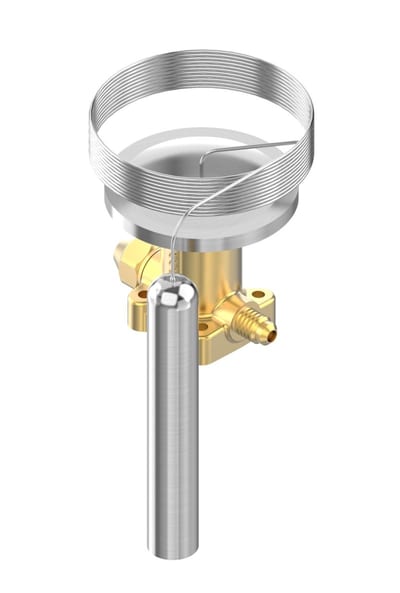

Danfoss power element for TE 12 thermostatic expansion valve, R22/R407C, externally equalized, MOP 20 charge, -60 to -25 °C, 3000 mm capillary
067B3211
Danfoss

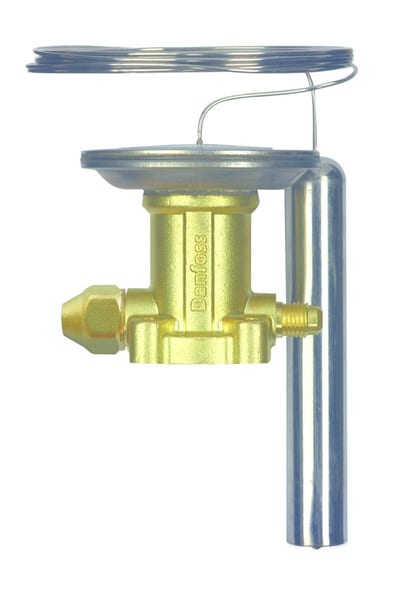

Danfoss power element for TE 12 thermostatic expansion valve, R22/R407C, externally equalized, MOP 20 charge, -60 to -25 °C, 5000 mm capillary
