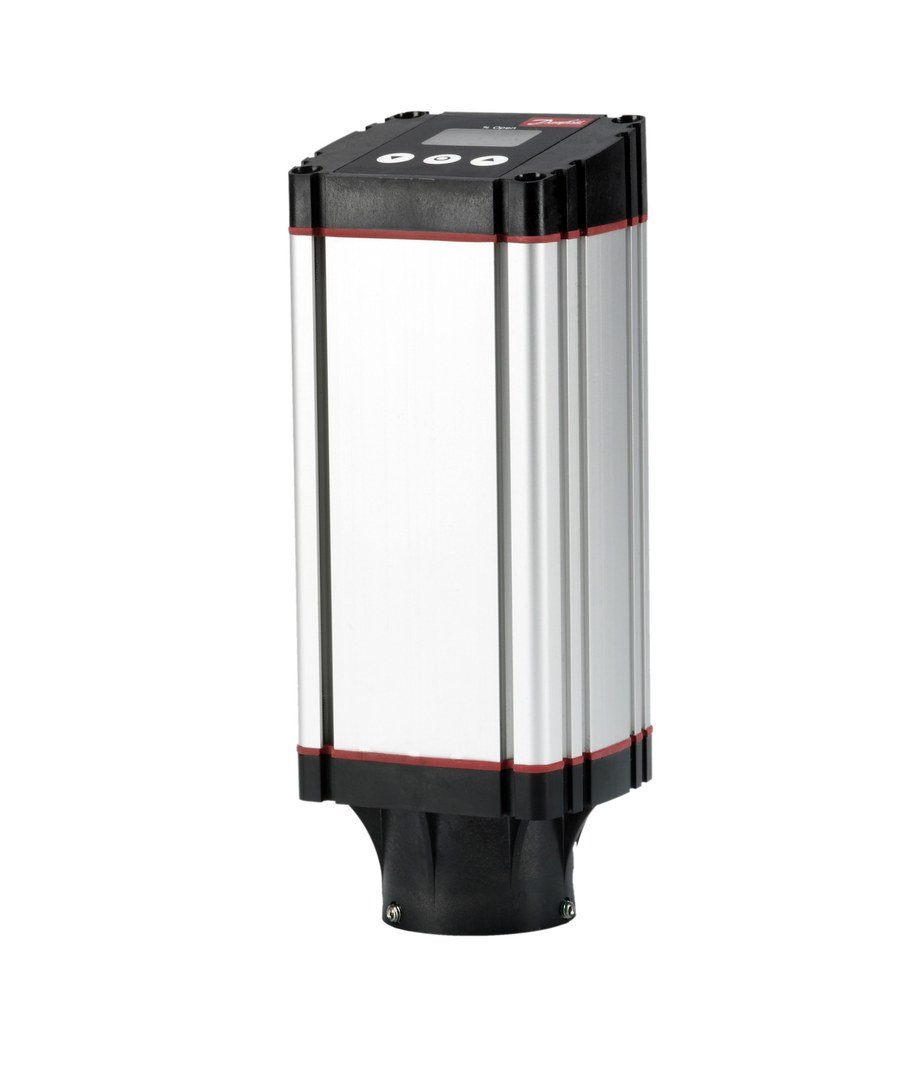

Danfoss ICAD 1200A electric actuator for ICM motor-operated valves 027H9077

Danfoss ICAD 1200A (ICAD) electric actuator for ICM motor-operated valves. Danfoss code number 027H9077. Drives the ICM function module via magnet coupling with continuous position feedback for pressure and temperature regulation in industrial refrigeration. Danfoss lists a newer improved version of this actuator; confirm current replacement code if required.

Brand

Danfoss

Type

ICAD 1200A electric actuator (ICAD)

Code number

027H9077

Supply voltage

24 V DC (-15% to +10%)

Supply current

2 A

Analog input

4-20 mA / 2-10 V DC

Analog output

4-20 mA

Digital outputs

3 (NPN transistor)

Display

LCD

Enclosure rating

IP67 / NEMA 6

Electrical connection

M12 connectors

Used for

ICM 40, ICM 50, ICM 65, ICM 100, ICM 125, ICM 150

Temperature range

-30 to 50 °C (-22 to 122 °F)

EAN

5702428889520

Net weight

1.889 kg; gross weight: 2.2 kg

EU RoHS / China RoHS

compliant

Approvals

CE, EAC, UL, CRN

Product group

Press. and temp. regul. valves

Ambient temperature range [°C] [max]

50 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

122 °F

Ambient temperature range [°F] [min]

-22 °F

Analog input current opt. [mA] [max]

20 mA

Analog input current opt. [mA] [min]

4 mA

Analog input Volt opt. [V] d.c [max]

10 V

Analog input Volt opt. [V] d.c [min]

2 V

Analog output options [mA] [max]

20 mA

Analog output options [mA] [min]

4 mA

Approval

CE

Cable length [in]

60 in

Cable length [m]

1.5 m

CE mark

Yes

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.1

Dig. Output-Ext supply [V] d.c [max]

24 V

Dig. Output-Ext supply [V] d.c [min]

5 V

Digital Output-Load [Ohm]

50 Ohm

Digital Output-Max Load [mA]

50 mA

Digital outputs (DO) [pc]

3 pc

Display type

LCD

Enclosure rating IP

IP67

Enclosure rating Nema (~)

6

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a)

Function

Digital output

Load Analog input Current[Ohm]

200 Ohm

Load Analog input Voltage[Ohm]

10000 Ohm

Load Analog output max [Ohm]

250 Ohm

Output configuration

NPN Transistor

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Supply voltage [V] DC

24 V

Supply voltage load [A]

2 A

Supply voltage tolerance [%] [max]

10 %

Supply voltage tolerance [%] [min]

-15 %

Temperature range [°C] [max]

50 °C

Temperature range [°C] [min]

-30 °C

Temperature range [°F] [max]

122 °F

Temperature range [°F] [min]

-22 °F

UL approval file name

REFRIGERANT VALVE 53R0

UL mark

Yes

Used for product

ICM 40

Temperature Range

-30 to 50 °C

IP Rating

IP67

Classification / Approval

CE, EAC, UL, CRN

HS Code

9032.89
