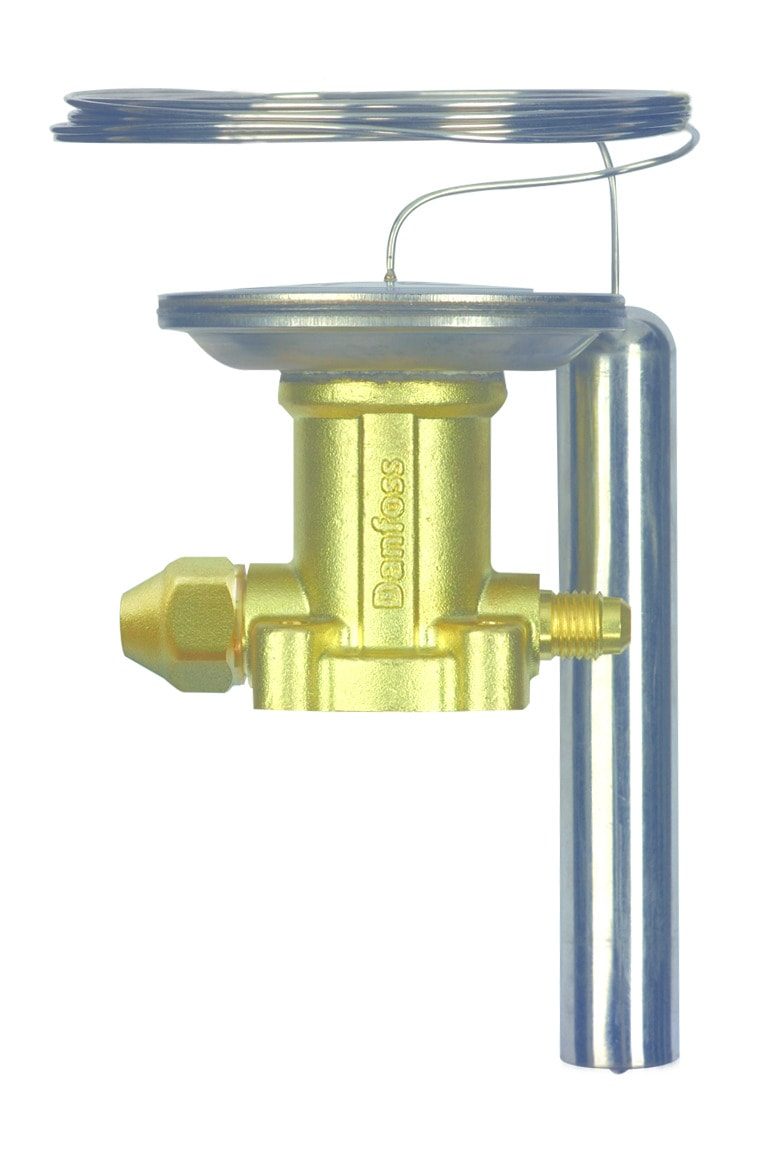

Danfoss power element for TE 5 thermostatic expansion valve, R22/R407C, externally equalized, MOP 35 charge, -40 to -15 °C, 3000 mm capillary (code 067B3253)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss exchangeable thermostatic power element for the TE 5 expansion valve, charged for R22/R407C. Externally equalized via a 1/4 in flare connection. Maximum operating pressure limit MOP 35 charge (MOP point at -10 °C). Evaporating temperature range -40 to -15 °C. 3000 mm (118 in) capillary tube. Max working pressure 28 bar (400 psig). Laser-welded stainless steel element, capillary tube and bulb; brass body. Supplied with bulb strap.
Specifications
- Part number
- 067B3253
- HS code
- 8481.90
Compatibility
For the Danfoss TE 5 / TE 12 / TE 20 / TE 55 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
Standards
Approvals
