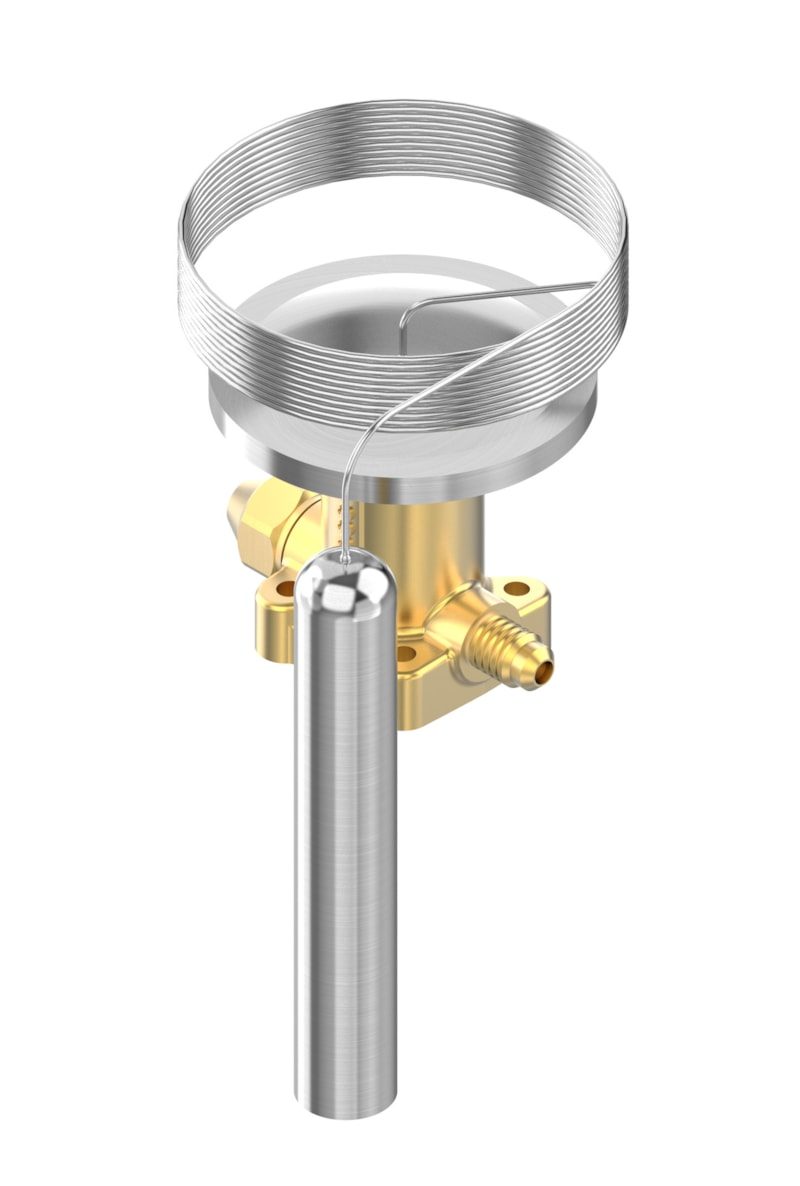

Danfoss power element for TE 20 thermostatic expansion valve, R22/R407C, externally equalized, MOP charge, -40 to 10 °C, 3000 mm capillary
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss exchangeable thermostatic power element for the TE 20 expansion valve, charged for R22/R407C. Externally equalized via a 1/4 in flare connection. Evaporating temperature range -40 to 10 °C. 3000 mm (118 in) capillary tube. Max working pressure 28 bar (400 psig). Laser-welded stainless steel element, capillary tube and bulb; brass body. Supplied with bulb strap.
Technical Specifications
- Type
- Power element (thermostatic element, exchangeable)
- Used for
- TE 20
- Refrigerant
- R22/R407C
- Pressure equalization
- externally equalized
- MOP
- per element charge
- Evaporating temperature range
- -40 to 10 °C
- Max working pressure
- 28 bar (400 psig)
- Capillary tube
- 3000 mm
- Equalization connection
- 1/4 in flare
- Element/capillary/bulb
- Laser-welded stainless steel; brass body
- Net weight
- 0.63 kg
- EAN
- 5702428094016
- Compatible with
- TE 20 thermostatic expansion valve
- MPN
- 067B3274
- Product group
- Expansion valves
- Approval
- EAC
- Body material
- Brass
- Capillary tube length [in]
- 118 in
- Capillary tube length [mm]
- 3000 mm
- China RoHS compliance
- Yes
- Equalization connection type
- Flare
- Equalization size [in]
- 1/4 in
- EU RoHS compliance
- Out of scope
- Max. Working Pressure [bar]
- 28 bar
- Max. Working Pressure [psig]
- 400 psig
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R22/R407C
- Temperature range [°C] [max]
- 10 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 50 °F
- Temperature range [°F] [min]
- -40 °F
- Type designation
- Element
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 / TE 55 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
