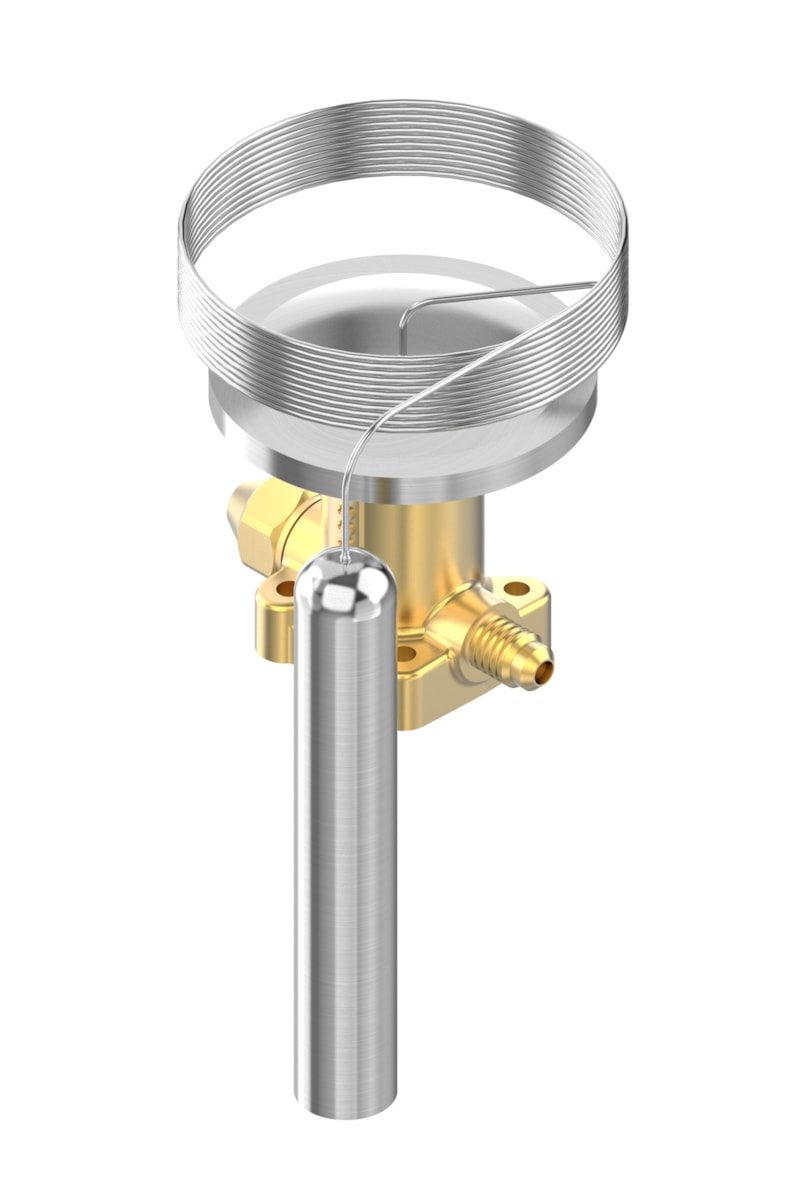

Danfoss power element for TE 12 thermostatic expansion valve, R22/R407C, externally equalized, MOP 20 charge, -60 to -25 °C, 3000 mm capillary (code 067B3211)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss exchangeable thermostatic power element for the TE 12 expansion valve, charged for R22/R407C. Externally equalized via a 1/4 in flare connection. Maximum operating pressure limit MOP 20 charge (MOP point at -20 °C). Evaporating temperature range -60 to -25 °C. 3000 mm (118 in) capillary tube. Max working pressure 28 bar (400 psig). Laser-welded stainless steel element, capillary tube and bulb; brass body. Supplied with bulb strap.
Specifications
- Part number
- 067B3211
- HS code
- 8481.90
Compatibility
For the Danfoss TE 5 / TE 12 / TE 20 / TE 55 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
Standards
Approvals
