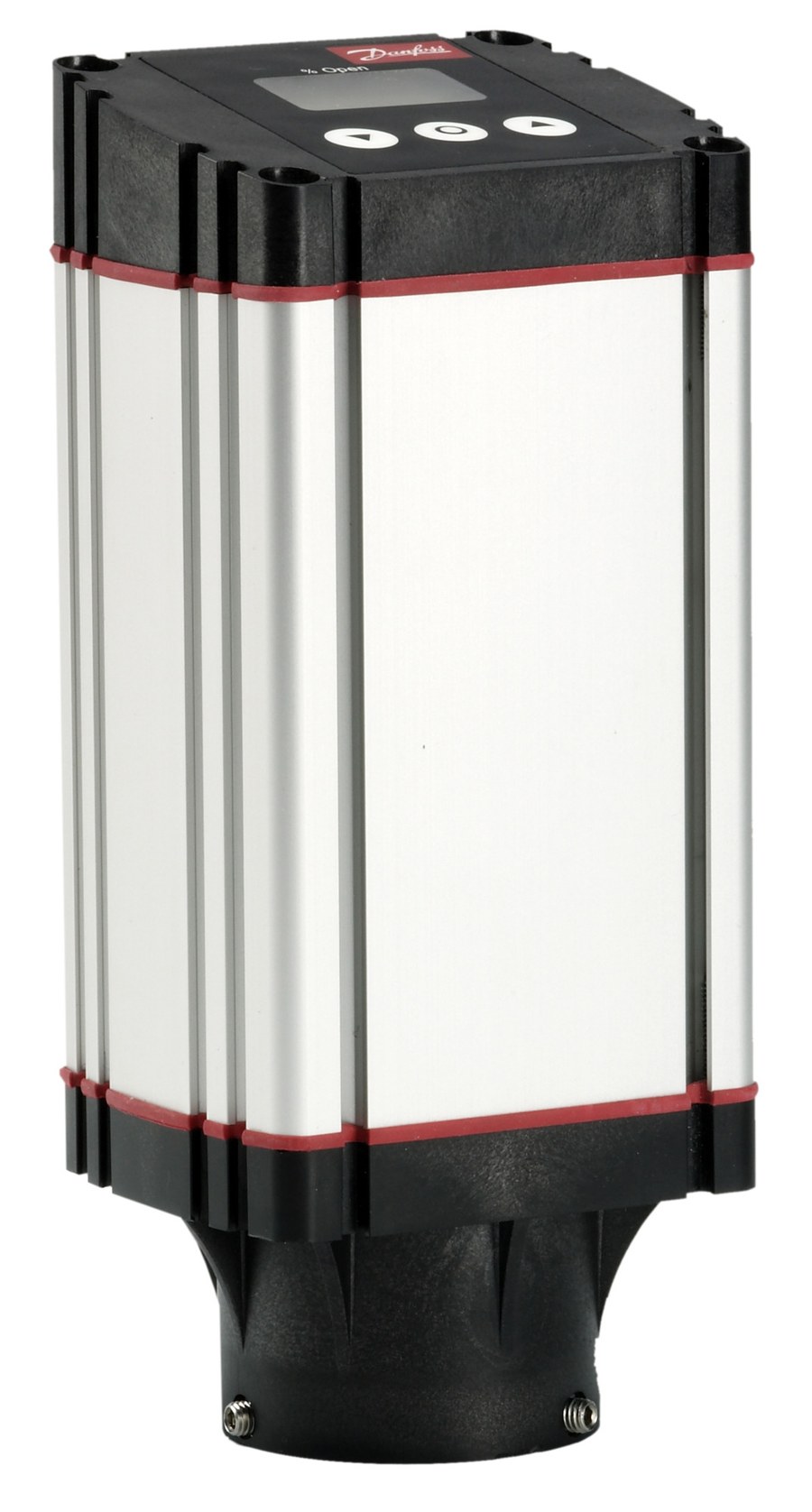

Danfoss ICAD 600A electric actuator for ICM motor-operated valves 027H9075
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICAD 600A (ICAD) electric actuator for ICM motor-operated valves. Danfoss code number 027H9075. Drives the ICM function module via magnet coupling with continuous position feedback for pressure and temperature regulation in industrial refrigeration. Supplied with 1.5 m cable and M12 connectors.
Technical Specifications
- Brand
- Danfoss
- Type
- ICAD 600A electric actuator (ICAD)
- Code number
- 027H9075
- Supply voltage
- 24 V DC (-15% to +10%)
- Supply current
- 1.2 A
- Analog input
- 4-20 mA / 2-10 V DC
- Analog output
- 4-20 mA
- Digital outputs
- 3 (NPN transistor)
- Display
- LCD
- Enclosure rating
- IP67 / NEMA 6
- Electrical connection
- M12 connectors
- Used for
- ICM 20, ICM 25, ICM 32
- Temperature range
- -30 to 50 °C (-22 to 122 °F)
- EAN
- 5702428904957
- Net weight
- 1.384 kg; gross weight: 1.7 kg
- EU RoHS / China RoHS
- compliant
- Approvals
- CE, EAC, UL, CRN
- Product group
- Press. and temp. regul. valves
- Ambient temperature range [°C] [max]
- 50 °C
- Ambient temperature range [°C] [min]
- -30 °C
- Ambient temperature range [°F] [max]
- 122 °F
- Ambient temperature range [°F] [min]
- -22 °F
- Analog input current opt. [mA] [max]
- 20 mA
- Analog input current opt. [mA] [min]
- 4 mA
- Analog input Volt opt. [V] d.c [max]
- 10 V
- Analog input Volt opt. [V] d.c [min]
- 2 V
- Analog output options [mA] [max]
- 20 mA
- Analog output options [mA] [min]
- 4 mA
- Approval
- CE
- Cable length [in]
- 60 in
- Cable length [m]
- 1.5 m
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Dig. Output-Ext supply [V] d.c [max]
- 24 V
- Dig. Output-Ext supply [V] d.c [min]
- 5 V
- Digital Output-Load [Ohm]
- 50 Ohm
- Digital Output-Max Load [mA]
- 50 mA
- Digital outputs (DO) [pc]
- 3 pc
- Display type
- LCD
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Function
- Digital output
- Load Analog input Current[Ohm]
- 200 Ohm
- Load Analog input Voltage[Ohm]
- 10000 Ohm
- Load Analog output max [Ohm]
- 250 Ohm
- Output configuration
- NPN Transistor
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Supply voltage [V] DC
- 24 V
- Supply voltage load [A]
- 1.2 A
- Supply voltage tolerance [%] [max]
- 10 %
- Supply voltage tolerance [%] [min]
- -15 %
- Temperature range [°C] [max]
- 50 °C
- Temperature range [°C] [min]
- -30 °C
- Temperature range [°F] [max]
- 122 °F
- Temperature range [°F] [min]
- -22 °F
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- Used for product
- ICM 20
Standards & Compliance
- Temperature Range
- -30 to 50 °C
- IP Rating
- IP67
- Classification / Approval
- CE, EAC, UL, CRN
- HS Code
- 9032.89
Compatibility & Fitment
Fits ICM 20, ICM 25, ICM 32. Connect via M12 connectors. Confirm ICM valve size before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICAD 1200A electric actuator for ICM motor-operated valves 027H9077
Danfoss
Danfoss power element for TE 12 thermostatic expansion valve, R22/R407C, externally equalized, MOP 20 charge, -60 to -25 °C, 3000 mm capillary
067B3211
Danfoss
Danfoss power element for TE 12 thermostatic expansion valve, R22/R407C, externally equalized, MOP 20 charge, -60 to -25 °C, 5000 mm capillary
067B3212
Danfoss
Danfoss power element for TE 12 thermostatic expansion valve, R22/R407C, externally equalized, MOP 100 charge, -40 to 10 °C, 3000 mm capillary
067B3227
Danfoss

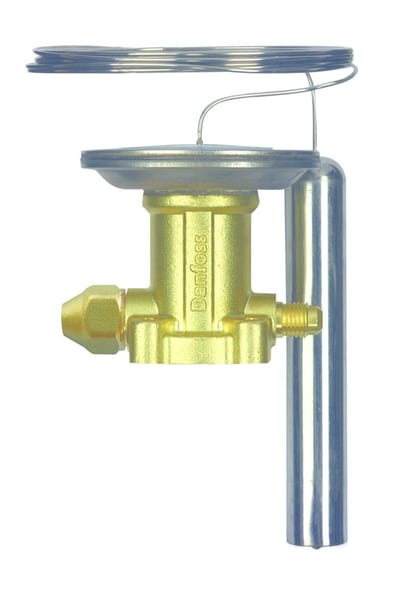

Danfoss power element for TE 12 thermostatic expansion valve, R134A, externally equalized, MOP 55 charge, -40 to 10 °C, 3000 mm capillary
067B3233
Danfoss
Danfoss power element for TE 5 thermostatic expansion valve, R404A/R507A, externally equalized, MOP 120 charge, -40 to 10 °C, 3000 mm capillary
067B3238
Danfoss

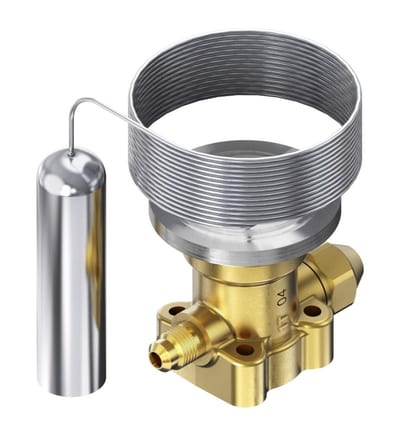

Danfoss power element for TE 5 thermostatic expansion valve, R448A/R449A, externally equalized, MOP charge, -40 to 10 °C, 3000 mm capillary
