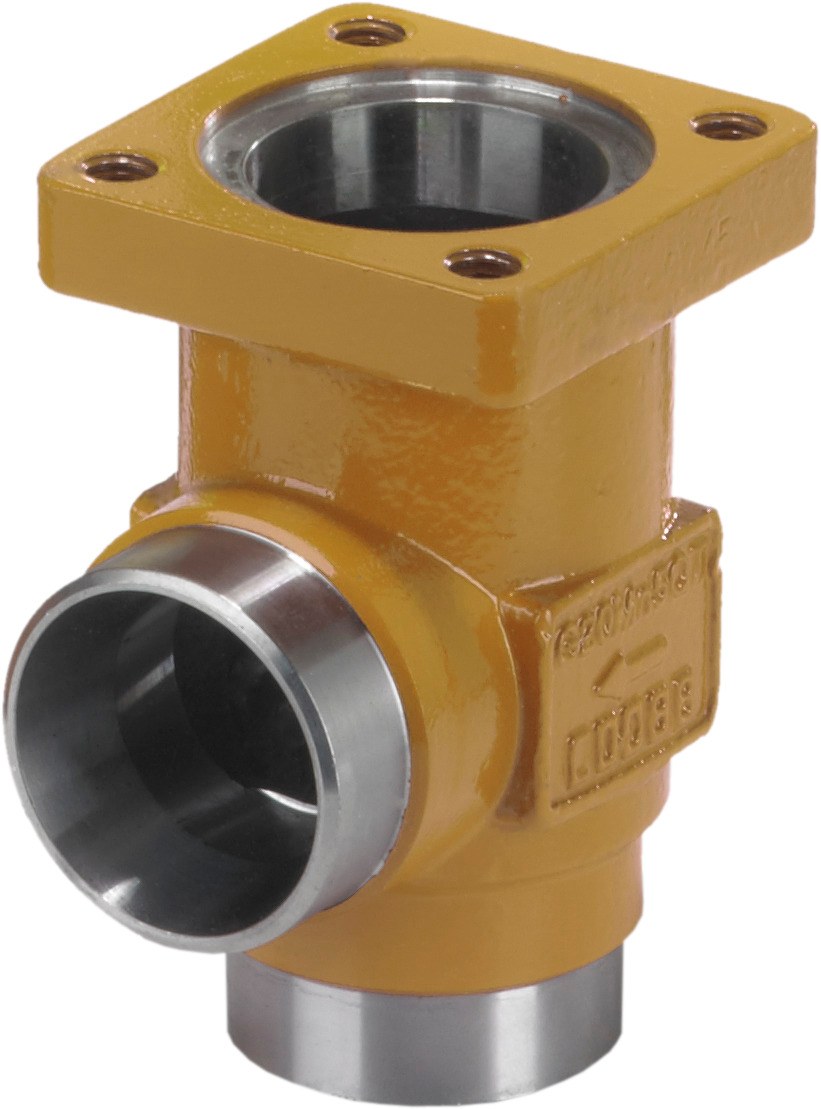

Danfoss SVL 15 multifunction valve body, 15 mm (1/2 in) butt weld ASME B 36.10M Schedule 80, steel, angleway, 65 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVL 15 multifunction valve body for the SVL Flexline programme, code 148B6612. Bare welded steel housing (without function module) with butt weld connections to ASME B 36.10M Schedule 80, nominal size 15 mm (1/2 in), angleway pattern, bi-flow. Maximum working pressure 65 bar (943 psig); media temperature range -60 to 150 C (-76 to 302 F). The SVL Flexline concept lets one welded body accept a stop, stop-check, regulating or shut-off function module, so the function can be changed or serviced without cutting the body out of the line. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- SVL 15 multifunction valve body (SVL Flexline)
- Code number
- 148B6612
- Product group
- Multifunction valves
- Direction
- Angleway
- Connection type
- Butt weld
- Connection standard
- ASME B 36.10M Schedule 80
- Nominal size
- 15 mm (1/2 in)
- Body material
- Steel
- Flow direction
- Bi-flow
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- PED assessment
- Article 4, paragraph 3 (sound engineering practice)
- Approvals
- CE, UKCA
- EAN
- 5702428507455
- Net weight
- 0.883 Kilogram
- Approval
- UKCA
- CE mark
- Yes
- China RoHS compliance
- Yes
- Connection material
- Steel
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1/2 in
- Inlet connection size [mm]
- 15 mm
- Inlet connection type
- Butt weld
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Outlet connection size [in]
- 1/2 in
- Outlet connection size [mm]
- 15 mm
- Outlet connection type
- Butt weld
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- SVL 15
Standards & Compliance
- Standard
- ASME B 36.10M Schedule 80
- Size / Series
- 15 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline SVL 15 valve body. This is the bare welded housing — order the matching stop / stop-check / regulating function module separately. Confirm line size (15 mm (1/2 in)), connection standard (ASME B 36.10M Schedule 80) and direction (angleway) before ordering.
