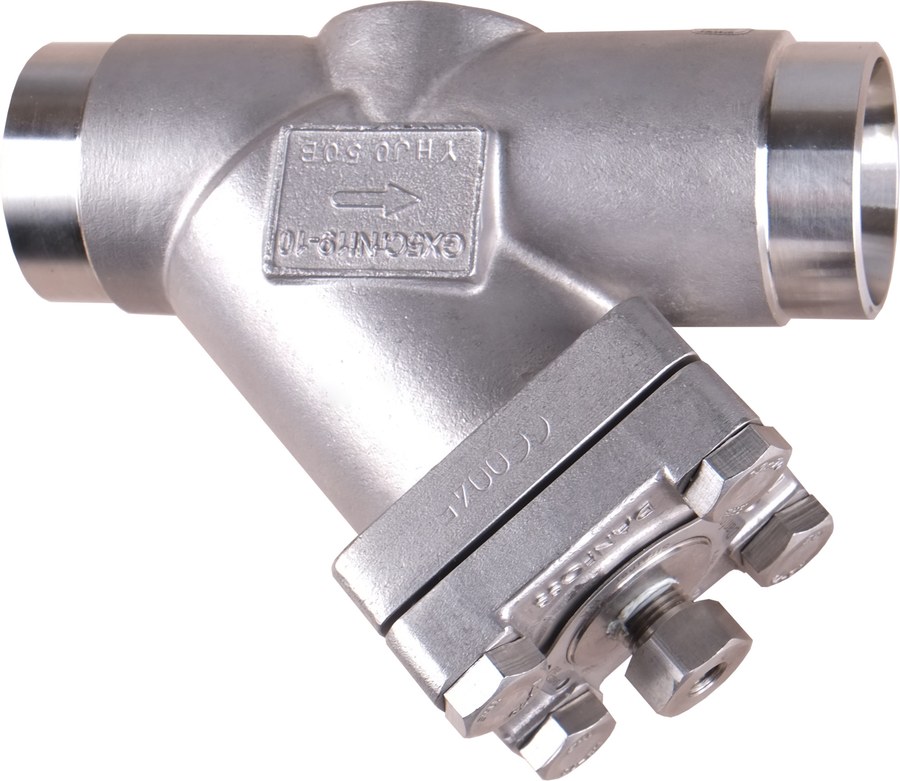

Danfoss FIA SS 40 straightway strainer housing, 40 mm (1 1/2 in) butt weld ASME B 36.19M Schedule 40, stainless steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA SS 40 straightway strainer housing for industrial refrigeration, code 148B6497. Stainless steel body with butt weld connections to ASME B 36.19M Schedule 40, nominal size 40 mm (1 1/2 in). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 19.2 to 26.4 m3/h (per micron rating). In-line strainer housing that protects downstream components from weld slag and pipe scale; the filter insert (micron rating selected separately) is renewable without cutting the housing out of the line. Part of the Danfoss SVL Flexline programme. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- FIA SS 40 strainer housing (SVL Flexline)
- Code number
- 148B6497
- Series
- FIA SS
- Direction
- Straightway
- Connection type
- Butt weld
- Connection standard
- ASME B 36.19M Schedule 40
- Nominal size
- 40 mm (1 1/2 in)
- Body material
- Stainless steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 19.2 to 26.4 m3/h (per micron rating)
- PED assessment
- Category II
- Approvals
- CE
- EAN
- 5702428990370
- Net weight
- 2.8 Kilogram
- Product group
- Strainers
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2502:S40s:40)
- Connection material
- Stainless steel
- Cv value [gal/min] 100 plain
- 85.86 gal/min
- Cv value [gal/min] 100 pleated
- 112.27 gal/min
- Cv value [gal/min] 150 plain
- 84.54 gal/min
- Cv value [gal/min] 38 plain
- 94.66 gal/min
- Cv value [gal/min] 72 plain
- 88.94 gal/min
- Cv value [gal/min] 72 pleated
- 116.24 gal/min
- Equipment
- Cover
- EU RoHS compliance
- Yes
- Fluid Group
- 1
- Inlet connection size [in]
- 1 1/2 in
- Inlet connection size [mm]
- 40 mm
- Inlet connection type
- Butt weld
- Kv value [m3/h] µ100 plain
- 19.2 m³/h
- Kv value [m3/h] µ150 plain
- 19.5 m³/h
- Kv value [m3/h] µ150 pleated
- 25.5 m³/h
- Kv value [m3/h] µ250 plain
- 20.2 m³/h
- Kv value [m3/h] µ250 pleated
- 26.4 m³/h
- Kv value [m3/h] µ500 plain
- 21.5 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 1 1/2 in
- Outlet connection size [mm]
- 40 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ASME B 36.19M Schedule 40
- Size / Series
- 40 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.39
Compatibility & Fitment
Danfoss SVL Flexline FIA SS valve. This code is the straightway FIA SS 40 with butt weld (ASME B 36.19M Schedule 40) ends. Confirm line size (40 mm (1 1/2 in)), connection type/standard, direction (straightway) and refrigerant before ordering.
