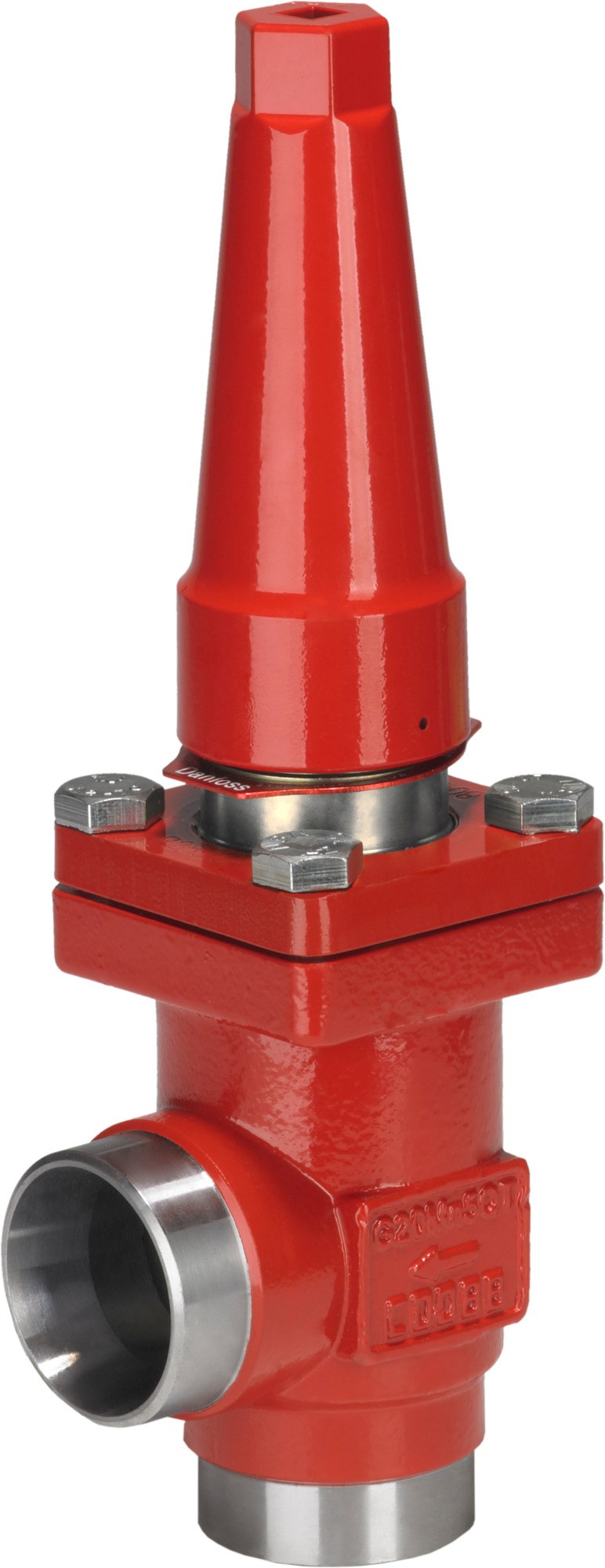

Danfoss SVA-HL 65 angleway shut-off valve (cap), 65 mm (2 1/2 in) butt weld JIS, steel, 52 bar (code 148B6528)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-HL 65 angleway shut-off valve for industrial refrigeration, code 148B6528. Steel body with butt weld connections to JIS, nominal size 65 mm (2 1/2 in). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Renewable seat and cone close tightly and withstand system pulsation and vibration; the valve can be dismantled and repaired in line. Supplied with a standard neck and cap. Part of the Danfoss SVL Flexline programme. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Specifications
- Part number
- 148B6528
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- JIS
- Standard size
- 65 mm
Compatibility
Danfoss SVL Flexline SVA-HL valve. This code is the angleway SVA-HL 65 (cap) with butt weld (JIS) ends. Confirm line size (65 mm (2 1/2 in)), connection type/standard, direction (angleway), equipment (cap) and refrigerant before ordering.
