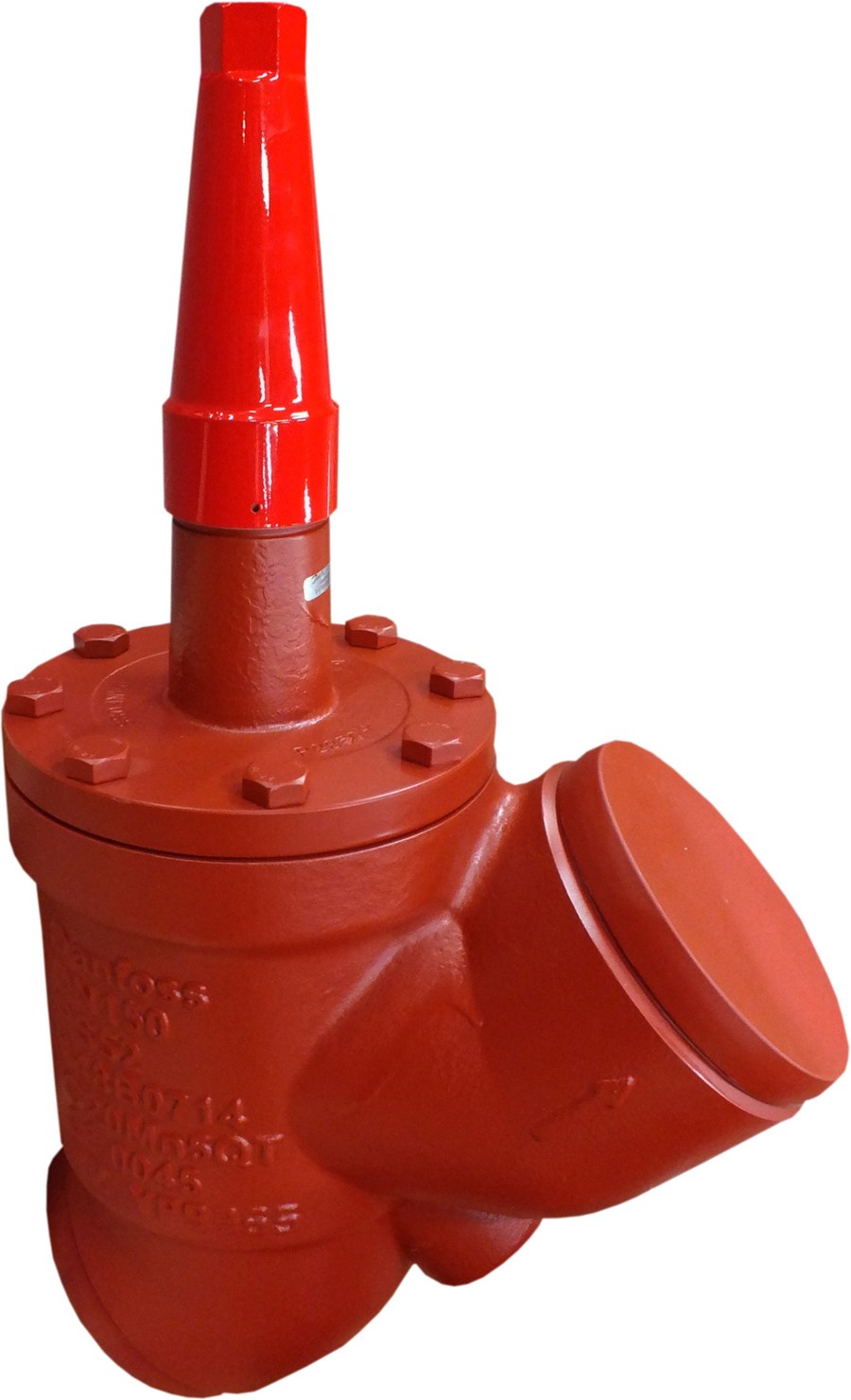

Danfoss SVA-HL 150 straightway shut-off valve (cap), 150 mm (6 in) butt weld JIS, steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-HL 150 straightway shut-off valve for industrial refrigeration, code 148B6543. Steel body with butt weld connections to JIS, nominal size 150 mm (6 in). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Renewable seat and cone close tightly and withstand system pulsation and vibration; the valve can be dismantled and repaired in line. Supplied with a standard neck and cap. Part of the Danfoss SVL Flexline programme. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- SVA-HL 150 shut-off valve (SVL Flexline)
- Code number
- 148B6543
- Series
- SVA-HL
- Direction
- Straightway
- Connection type
- Butt weld
- Connection standard
- JIS
- Nominal size
- 150 mm (6 in)
- Body material
- Steel
- Equipment
- Cap
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Flow direction
- Bi-flow
- PED assessment
- Category III
- Approvals
- CE
- EAN
- 5702428894234
- Net weight
- 74.999 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- CE
- China RoHS compliance
- Yes
- Colour Paint
- Black
- EU RoHS compliance
- Yes
- Fluid Group
- 1
- Inlet connection size [in]
- 6 in
- Inlet connection size [mm]
- 150 mm
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 6 in
- Outlet connection size [mm]
- 150 mm
- PED category
- III
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
Standards & Compliance
- Standard
- JIS
- Size / Series
- 150 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline SVA-HL valve. This code is the straightway SVA-HL 150 (cap) with butt weld (JIS) ends. Confirm line size (150 mm (6 in)), connection type/standard, direction (straightway), equipment (cap) and refrigerant before ordering.
