Danfoss SNV-SS angleway stop / gauge needle valve, 1/2 in g (parallel) thread ISO 228-1, stainless steel, 65 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SNV-SS angleway stop / gauge needle valve for industrial refrigeration, code 148B6545. Stainless steel body with g (parallel) thread connections to ISO 228-1, nominal size 1/2 in. Maximum working pressure 65 bar (943 psig); media temperature range -60 to 200 C (-76 to 392 F). Stop needle valve for mounting pressure gauges and instruments; the fine needle spindle gives tight isolation and throttled bleed. Part of the Danfoss SVL Flexline programme. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- SNV-SS stop / gauge needle valve (SVL Flexline)
- Code number
- 148B6545
- Series
- SNV-SS
- Direction
- Angleway
- Connection type
- G (parallel) thread
- Connection standard
- ISO 228-1
- Nominal size
- 1/2 in
- Body material
- Stainless steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to 200 C (-76 to 392 F)
- PED assessment
- Article 4, paragraph 3 (sound engineering practice)
- Approvals
- EAC
- EAN
- 5702428975407
- Net weight
- 0.524 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- EAC
- China RoHS compliance
- Yes
- Connection material
- Stainless steel
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow direction
- Bi-flow
- Fluid Group
- 1
- Further information
- Manometer connectors
- Inlet connection size [in]
- 1/2 A
- Inlet connection type
- G
- Inlet Internal/External
- External
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Outlet connection size [in]
- 1/2 A
- Outlet connection type
- G
- Outlet Internal/External
- External
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ISO 228-1
- Size / Series
- 1/2 in
- Material
- Stainless steel
- Thread Standard
- ISO 228-1
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to 200 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline SNV-SS valve. This code is the angleway SNV-SS with g (parallel) thread (ISO 228-1) ends. Confirm line size (1/2 in), connection type/standard, direction (angleway) and refrigerant before ordering.
Product Documentation
More from Danfoss
Danfoss

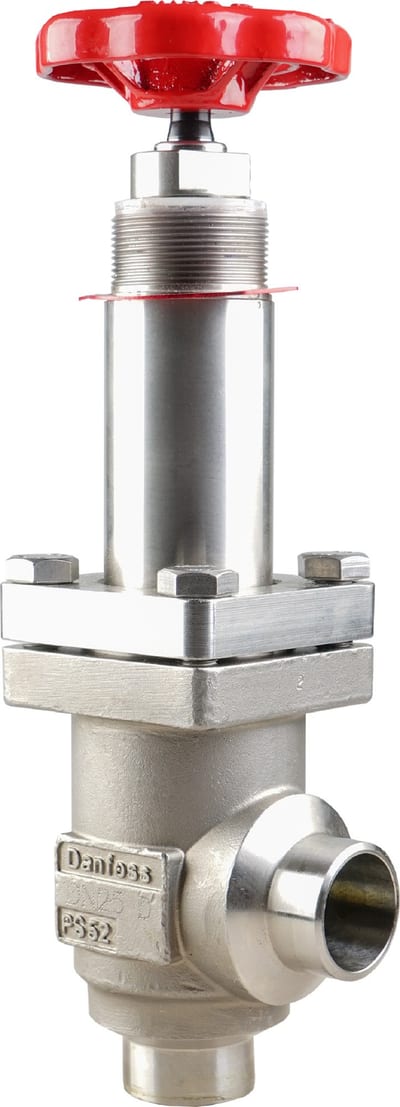

Danfoss SVA-L SS 15 angleway shut-off valve (long neck, handwheel), 15 mm (1/2 in) butt weld EN 10220, stainless steel, 52 bar
148B6546
Danfoss
Danfoss SVA-L SS 15 angleway shut-off valve (long neck, cap), 15 mm (1/2 in) butt weld EN 10220, stainless steel, 52 bar
148B6547
Danfoss

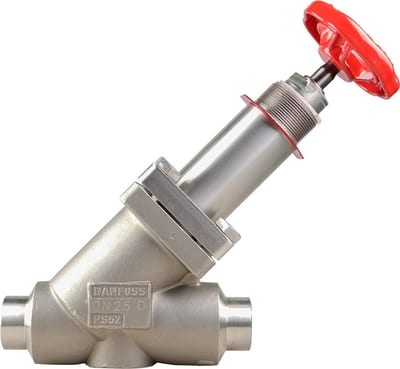

Danfoss SVA-L SS 15 straightway shut-off valve (long neck, handwheel), 15 mm (1/2 in) butt weld EN 10220, stainless steel, 52 bar
148B6548
Danfoss

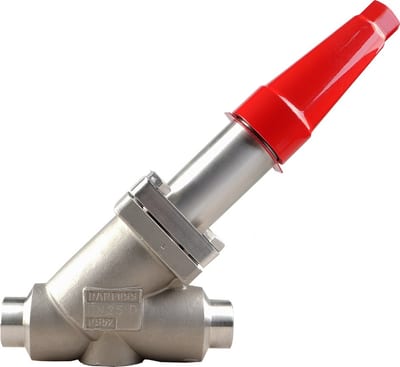

Danfoss SVA-L SS 15 straightway shut-off valve (long neck, cap), 15 mm (1/2 in) butt weld EN 10220, stainless steel, 52 bar
148B6549
Danfoss
Danfoss SVA-L SS 20 angleway shut-off valve (long neck, handwheel), 20 mm (3/4 in) butt weld EN 10220, stainless steel, 52 bar
148B6550
Danfoss

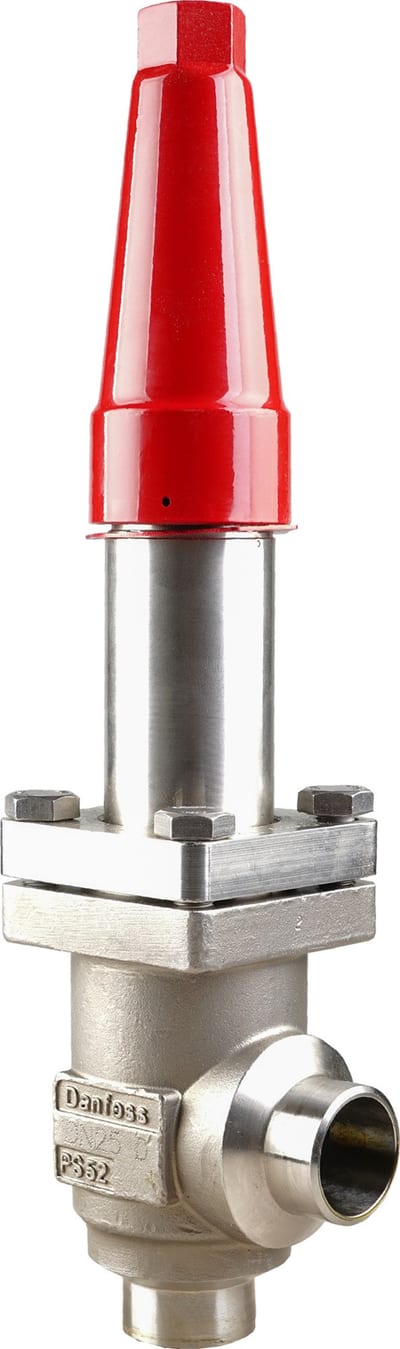

Danfoss SVA-L SS 20 angleway shut-off valve (long neck, cap), 20 mm (3/4 in) butt weld EN 10220, stainless steel, 52 bar
