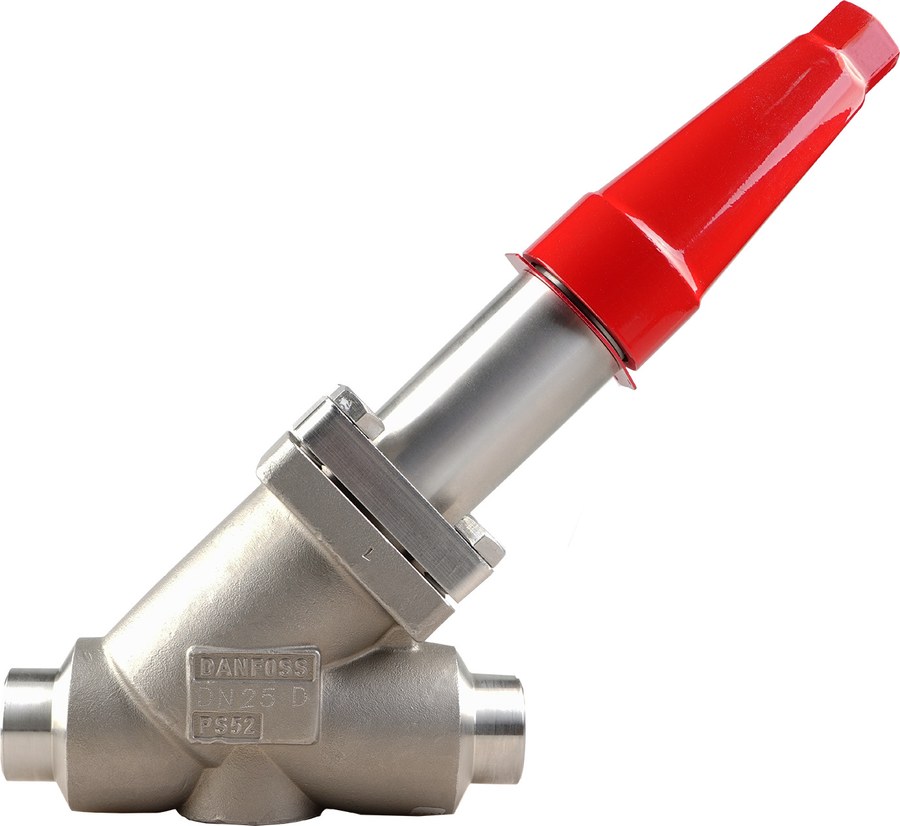

Danfoss SVA-L SS 20 straightway shut-off valve (long neck, cap), 20 mm (3/4 in) butt weld EN 10220, stainless steel, 52 bar (code 148B6553)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-L SS 20 straightway shut-off valve for industrial refrigeration, code 148B6553. Stainless steel body with butt weld connections to EN 10220, nominal size 20 mm (3/4 in). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 10.2 m3/h (Cv 11.83 gal/min). Renewable seat and cone close tightly and withstand system pulsation and vibration; the valve can be dismantled and repaired in line. Supplied with a long neck and cap. Part of the Danfoss SVL Flexline programme. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Specifications
- Part number
- 148B6553
- HS code
- 8481.80
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- EN 10220
- Standard size
- 20 mm
Compatibility
Danfoss SVL Flexline SVA-L SS valve. This code is the straightway SVA-L SS 20 (cap) with butt weld (EN 10220) ends. Confirm line size (20 mm (3/4 in)), connection type/standard, direction (straightway), equipment (cap) and refrigerant before ordering.
Approvals
