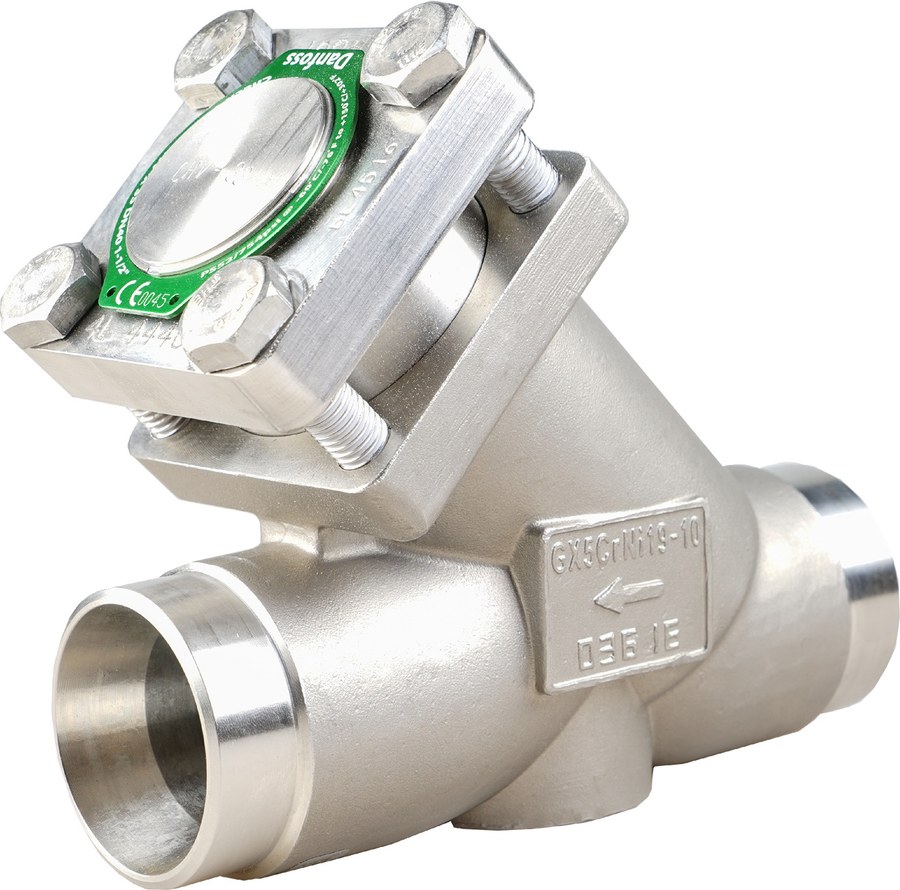

Danfoss CHV-X SS 32 straightway check (non-return) valve, 32 mm (1 1/4 in) butt weld EN 10220, stainless steel, 52 bar

Danfoss CHV-X SS 32 straightway check (non-return) valve for industrial refrigeration, code 148B6544. Stainless steel body with butt weld connections to EN 10220, nominal size 32 mm (1 1/4 in). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 21 m3/h (Cv 24.4 gal/min). The cone lifts to allow forward flow and closes against reverse flow; an embossed one-way arrow marks the flow direction. minimum opening differential pressure 0.04 bar. Part of the Danfoss SVL Flexline programme. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.

Type

CHV-X SS 32 check (non-return) valve (SVL Flexline) Code number: 148B6544 Series: CHV-X SS Direction: Straightway Connection type: Butt weld Connection standard: EN 10220 Nominal size: 32 mm (1 1/4 in) Body material: Stainless steel Maximum working pressure: 52 bar (754 psig) Media temperature range: -60 to 150 C (-76 to 302 F) Kv value: 21 m3/h (Cv 24.4 gal/min) Flow direction: Non-return (forward flow only) PED assessment: Category II Approvals: CE EAN: 5702428977975 Net weight: 3.05 Kilogram Product group: Check valves Approval: CE CE mark: Yes China RoHS compliance: Yes Colour Paint: Reddish brown Connection material: Stainless steel Connection size [in]: 1 1/4 in Connection size [mm]: 32 mm Cv value [gal/min]: 24.4 gal/min EU RoHS compliance: Yes Fluid Group: 1 Kv value [m³/h]: 21 m³/h Max. Working Pressure [bar]: 52 bar Max. Working Pressure [psig]: 754 psig PED category: II REACH Candidate List substances: No Refrigerants: R134a Temperature range [°C] [max]: 150 °C Temperature range [°C] [min]: -60 °C Temperature range [°F] [max]: 302 °F Temperature range [°F] [min]: -76 °F

Standard

EN 10220

Size / Series

32 mm

Material

Stainless steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8481.30
