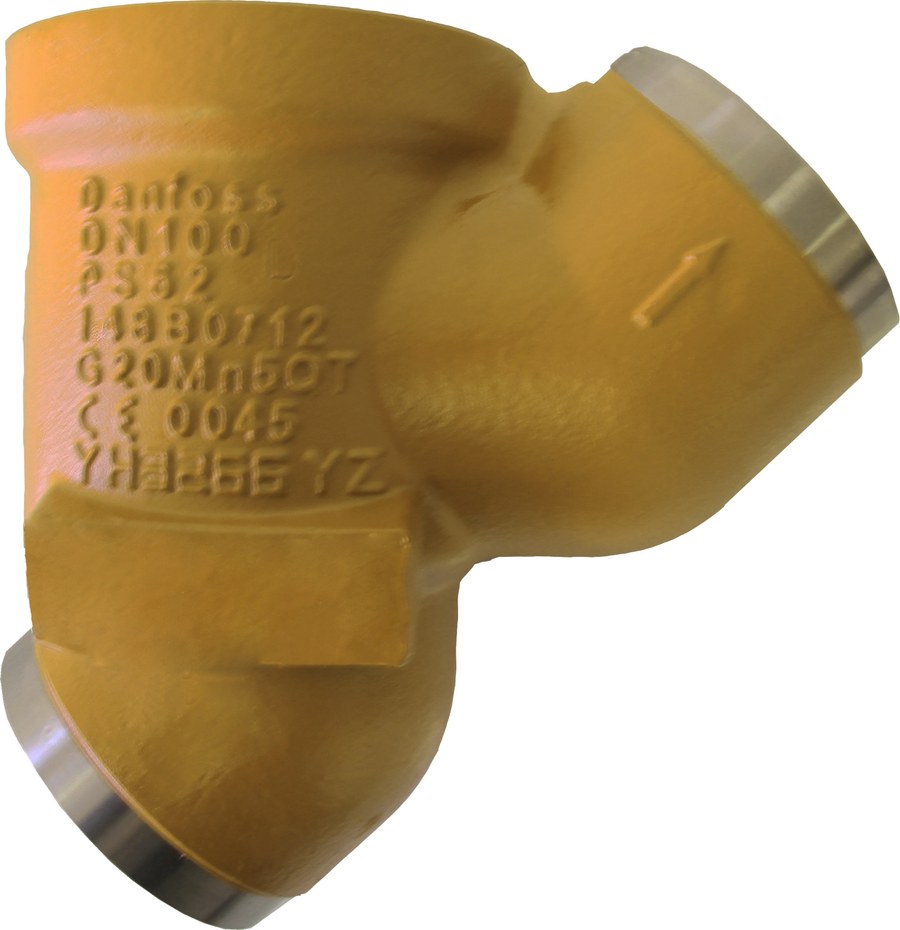

Danfoss SVL 100 multifunction valve body, 100 mm (4 in) butt weld EN 10220, steel, straightway, 65 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVL 100 multifunction valve body for the SVL Flexline programme, code 148B6650. Bare welded steel housing (without function module) with butt weld connections to EN 10220, nominal size 100 mm (4 in), straightway pattern, bi-flow. Maximum working pressure 65 bar (943 psig); media temperature range -60 to 200 C (-76 to 392 F). The SVL Flexline concept lets one welded body accept a stop, stop-check, regulating or shut-off function module, so the function can be changed or serviced without cutting the body out of the line. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- SVL 100 multifunction valve body (SVL Flexline)
- Code number
- 148B6650
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection type
- Butt weld
- Connection standard
- EN 10220
- Nominal size
- 100 mm (4 in)
- Body material
- Steel
- Flow direction
- Bi-flow
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to 200 C (-76 to 392 F)
- PED assessment
- Category II
- Approvals
- CE
- EAN
- 5702428507073
- Net weight
- 9.115 Kilogram
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Connection Code
- (2001:D36:100)
- Connection material
- Steel
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 4 in
- Inlet connection size [mm]
- 100 mm
- Inlet connection type
- Butt weld
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Outlet connection size [in]
- 4 in
- Outlet connection size [mm]
- 100 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- SVL 100
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 100 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to 200 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline SVL 100 valve body. This is the bare welded housing — order the matching stop / stop-check / regulating function module separately. Confirm line size (100 mm (4 in)), connection standard (EN 10220) and direction (straightway) before ordering.
