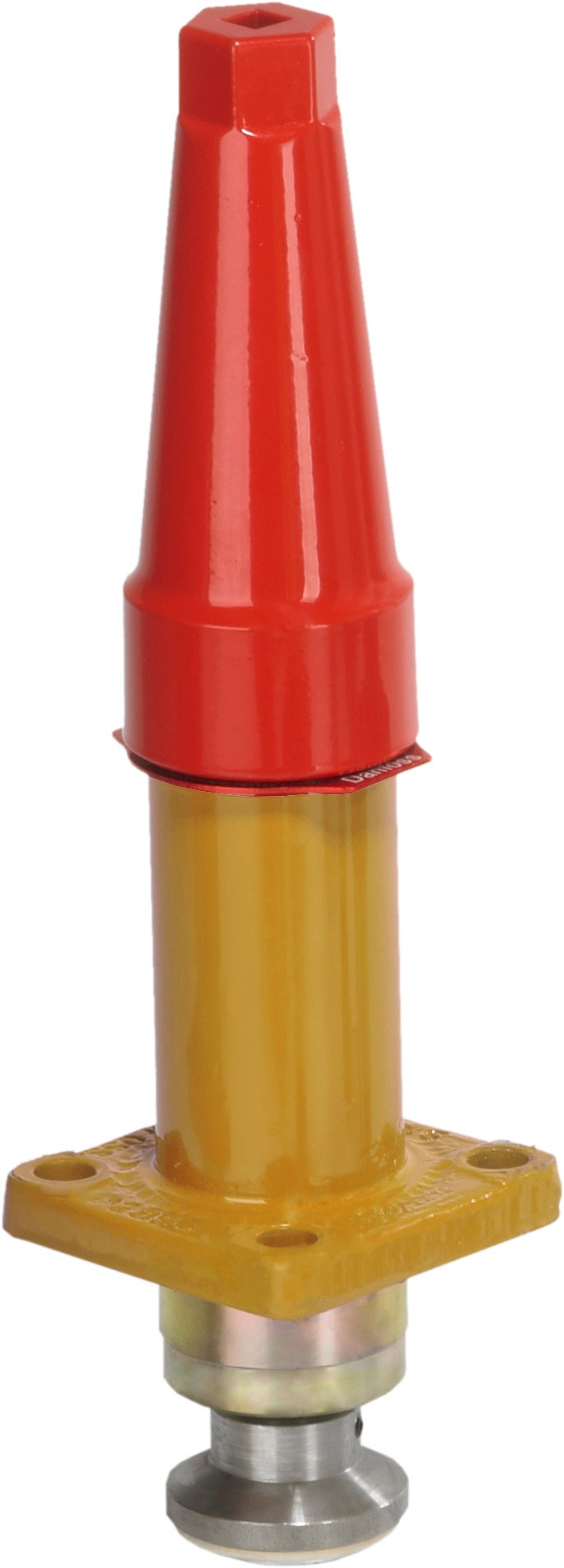

Danfoss SVA-L 25-40 function module (Top Complete), long neck, 65 bar, Cap
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-L 25-40 function module (Top Complete) for the SVL Flexline shut-off valve, code 148B6660. Supplied as a complete top assembly with a long neck for insulation. Maximum working pressure 65 bar (943 psig); media temperature range -60 to 150 C (-76 to 302 F). Equipment: Cap. Used for products SVA-L 25; SVA-L 32; SVA-L 40. The SVL Flexline design lets the function module be exchanged on an installed valve body without cutting the valve out of the line. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- SVA-L 25-40 function module (Top Complete)
- Code number
- 148B6660
- Series
- SVL Flexline SVA-L
- Product group
- Shut-off and regulating valves
- Type designation
- Top Complete
- Connection neck
- Long
- Equipment
- Cap
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Used for products
- SVA-L 25; SVA-L 32; SVA-L 40
- Weight
- net 2.2 kg, gross 3.157 kg
- Approvals
- CE
- EAN
- 5702428508254
- Net weight
- 2.2 Kilogram
- Approval
- CE
- China RoHS compliance
- Yes
- EU RoHS compliance
- Yes
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Neck
- Long
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- SVA-L 25
Standards & Compliance
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline SVA-L 25-40 function module (spare top). Fits the SVA-L 25; SVA-L 32; SVA-L 40 valve bodies. Confirm the valve size/series and refrigerant before ordering; the module exchanges on an installed body without cutting it out of the line.
