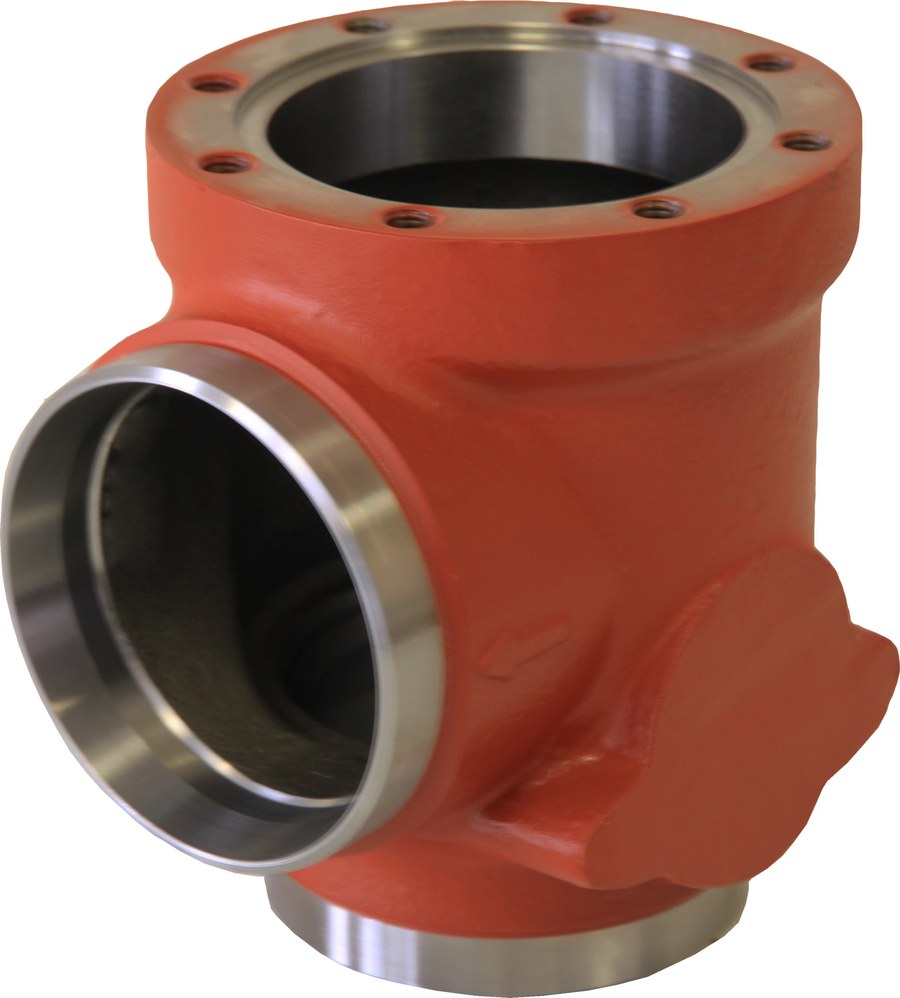

Danfoss SVL 125 multifunction valve body, angleway, 125 mm (5 in) butt weld EN 10220, steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVL 125 multifunction valve body (bare housing) for the SVL Flexline programme, code 148B6112. Steel housing with butt weld connections to EN 10220, nominal size 125 mm (5 in), angleway pattern. The SVL body is the welded-in-line valve housing onto which an SVL Flexline function module (SVA-S/SVA-L shut-off, REG regulating, SCA-X/CHV-X stop-check or check) of matching size is mounted to make up a complete valve. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Housing and function module are ordered separately. For R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils.
Technical Specifications
- Type
- SVL 125 multifunction valve body / housing (SVL Flexline)
- Code number
- 148B6112
- Series
- SVL
- Direction
- Angleway
- Connection type
- Butt weld
- Connection standard
- EN 10220
- Nominal size
- 125 mm (5 in)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Flow direction
- Bi-flow
- Note
- function module (SVA/REG/SCA-X/CHV-X top part) ordered separately
- Applicable media
- R717 (ammonia), R744 (CO2), HCFC/HFC refrigerants and oils
- Conformity assessment
- PED 2014/68/EU, Category III (DN 125)
- Approvals
- CE
- Net weight
- 14.91 kg
- EAN
- 5702428485838
- Product group
- Multifunction valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Connection Code
- (2001:D40:125)
- Connection material
- Steel
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 5 in
- Inlet connection size [mm]
- 125 mm
- Inlet connection type
- Butt weld
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 5 in
- Outlet connection size [mm]
- 125 mm
- Outlet connection type
- Butt weld
- PED category
- III
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- SVL 125
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 125 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline 125 mm valve body (housing only). Weld this housing into the line, then fit the required function module (SVA-S/SVA-L shut-off, REG regulating, SCA-X/CHV-X stop-check/check) of the same 125 mm size to build a complete valve. Confirm direction (angleway) and connection standard (EN 10220); EN 10220 and ASME weld ends are separate codes and not interchangeable.
