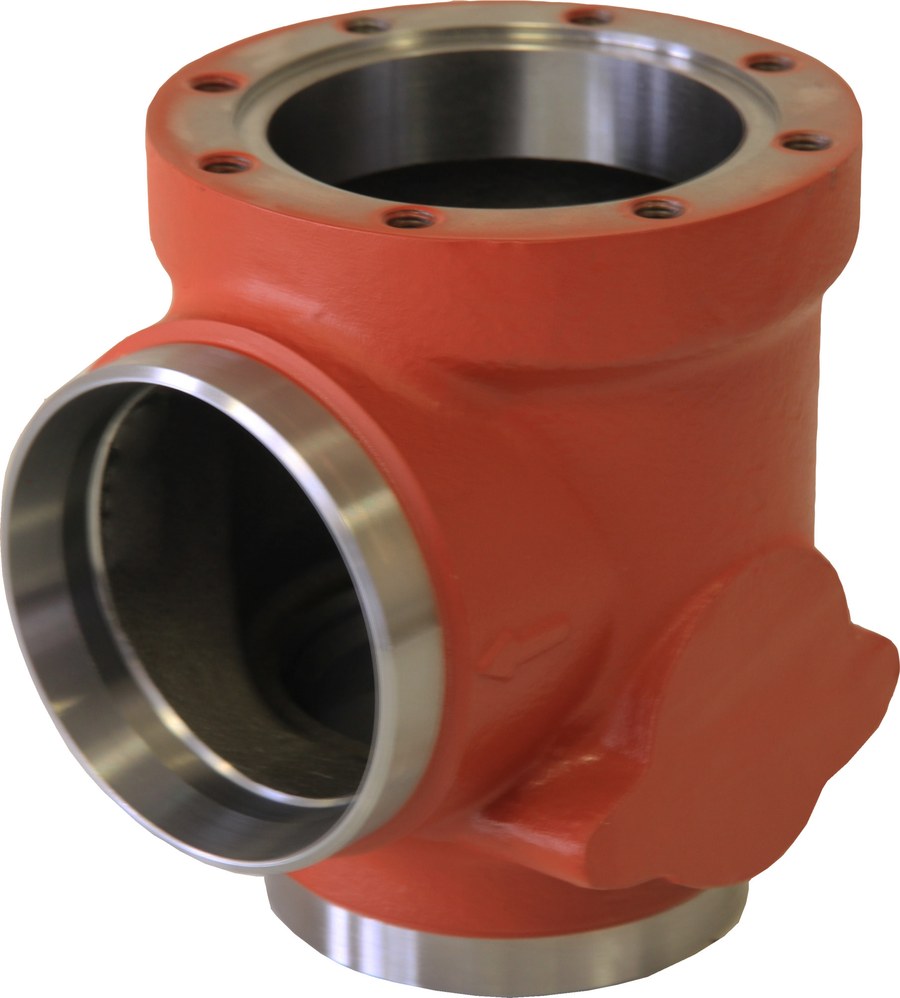

Danfoss SVL 125 multifunction valve body, angleway, 125 mm (5 in) butt weld ASME B 36.10M Schedule 40, steel, 52 bar (code 148B6114)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVL 125 multifunction valve body (bare housing) for the SVL Flexline programme, code 148B6114. Steel housing with butt weld connections to ASME B 36.10M Schedule 40, nominal size 125 mm (5 in), angleway pattern. The SVL body is the welded-in-line valve housing onto which an SVL Flexline function module (SVA-S/SVA-L shut-off, REG regulating, SCA-X/CHV-X stop-check or check) of matching size is mounted to make up a complete valve. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Housing and function module are ordered separately. For R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils.
Specifications
- Part number
- 148B6114
- HS code
- 8481.90
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- ASME B 36.10M Schedule 40
- Standard size
- 125 mm
Compatibility
Danfoss SVL Flexline 125 mm valve body (housing only). Weld this housing into the line, then fit the required function module (SVA-S/SVA-L shut-off, REG regulating, SCA-X/CHV-X stop-check/check) of the same 125 mm size to build a complete valve. Confirm direction (angleway) and connection standard (ASME B 36.10M Schedule 40); EN 10220 and ASME weld ends are separate codes and not interchangeable.
